How Does Solder Wick Braid Wire Improve Precision in Electronics Repair?

In the world of electronics manufacturing and repair, precision is everything. From assembling printed circuit boards (PCBs) to repairing delicate electronic devices, the ability to control solder flow and remove excess solder determines both efficiency and product reliability. One of the most effective tools for achieving this precision is the solder wick braid wire, also known as desoldering braid.

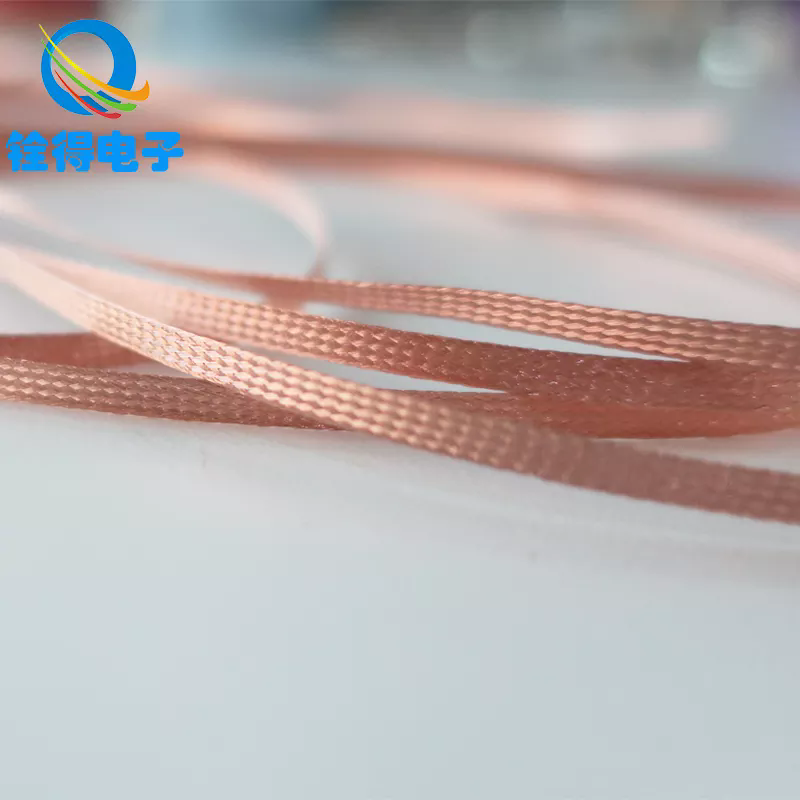

Solder wick braid wire is a finely braided copper wire coated with flux. It is specifically designed to absorb molten solder through capillary action, allowing technicians to remove unwanted solder from circuit boards or components. This makes it indispensable in rework, repair, and assembly applications.

The growing reliance on compact, high-density circuit boards in industries such as telecommunications, automotive electronics, aerospace, and consumer devices has amplified the need for effective solder removal tools. Unlike mechanical solder suckers, which can be bulky and sometimes damage pads, solder wick braid wire provides a clean and controlled solution. Its ability to minimize thermal and mechanical stress makes it the preferred choice for sensitive components.

Key reasons why industries rely on solder wick braid wire:

• Precision: Removes solder without disturbing adjacent joints.

• Reliability: Reduces the risk of PCB pad lifting or component damage.

• Versatility: Works with through-hole, surface-mount, and fine-pitch components.

• Cost-effectiveness: Quick, efficient, and reduces rework time.

In short, solder wick braid wire has become a cornerstone of modern electronics repair, ensuring that rework processes are faster, cleaner, and safer for delicate devices.

How Does Solder Wick Braid Wire Work in Practice?

The effectiveness of solder wick braid wire lies in the science of capillary action. When the copper braid is placed on a solder joint and heated with a soldering iron, molten solder is drawn up into the braid through its tiny woven channels. The applied flux coating enhances wetting, ensuring solder flows smoothly into the copper strands.

Step-by-Step Process of Using Solder Wick Braid Wire

1. Positioning: Place the braid directly over the solder joint that needs to be removed.

2. Heating: Apply the soldering iron tip on top of the braid.

3. Absorption: As solder melts, it is wicked into the braid.

4. Removal: Lift both braid and soldering iron once solder has been absorbed.

5. Trim and Repeat: Cut off the used section of the braid and continue until the area is clean.

This simple yet effective process makes solder wick braid wire suitable for both professionals and hobbyists working on precision electronics.

Applications Across Industries

• Electronics Manufacturing: For rework and defect correction in PCBs.

• Repair Services: Mobile phones, laptops, and consumer gadgets often require desoldering.

• Prototyping: Engineers use braid wire to correct mistakes during design iterations.

• Automotive Electronics: Crucial for maintaining modern vehicles’ advanced control systems.

• Aerospace and Defense: Ensures reliability where electronic performance is mission-critical.

Technical Parameters of Solder Wick Braid Wire

The performance of braid wire depends on multiple specifications. Below is a table summarizing the key product parameters:

These parameters enable users to select the right type of solder wick braid wire depending on their application, whether it’s fine-pitch IC work or large solder joint removal.

How to Choose the Right Solder Wick Braid Wire for Your Needs?

Choosing the right solder wick braid wire can significantly affect rework efficiency and component safety. Since not all applications require the same type of braid, it’s important to consider factors such as flux type, braid width, and intended usage.

Key Selection Factors

1. Flux Type

   • Rosin Flux: Excellent wetting ability, widely used, but requires cleaning.

   • No-Clean Flux: Leaves minimal residue, suitable for situations where cleaning is difficult.

   • Halogen-Free Flux: Environmentally friendly and essential for sensitive applications.

2. Braid Width

   • Narrow braid (0.8 mm – 1.5 mm): Best for small pads and fine-pitch ICs.

   • Medium braid (2.0 mm – 3.0 mm): General-purpose use for common PCB joints.

   • Wide braid (4.0 mm – 5.0 mm): Ideal for heavy solder joints and large terminals.

3. Roll Length and Packaging

   • Short rolls (1.5 m – 3 m) are portable and suitable for fieldwork.

   • Longer rolls (5 m – 10 m) are economical for manufacturing environments.

   • ESD-safe spools are preferred to avoid static damage to sensitive components.

4. Operating Temperature Compatibility

   • Ensure the braid works within the soldering iron’s operational range.

   • High-temperature applications may require specially treated braid.

Advantages of Choosing the Right Braid Wire

• Reduces rework time by absorbing solder efficiently.

• Minimizes the risk of damaging circuit pads.

• Ensures compliance with industry safety and environmental standards.

• Provides cost savings by lowering scrap rates in manufacturing.

Common FAQs About Solder Wick Braid Wire

Q1: How do I prevent solder wick braid wire from sticking to the PCB?
A: To prevent sticking, ensure the soldering iron is not overheated and avoid pressing too hard. Allow the capillary action of the braid to absorb the solder naturally. Using no-clean flux-coated braid also helps reduce residue buildup, making removal smoother.

Q2: How should solder wick braid wire be stored to maintain effectiveness?
A: Store braid wire in sealed, moisture-resistant packaging, ideally in ESD-safe spools. Avoid exposure to humidity or high temperatures, as this can reduce flux activity and copper quality. Proper storage extends shelf life and ensures consistent performance.

How Is Solder Wick Braid Wire Shaping the Future of Electronics Rework?

With electronics becoming smaller, more complex, and more environmentally regulated, solder wick braid wire continues to evolve. It is no longer just a tool for technicians—it represents a critical enabler of reliable electronics manufacturing and sustainable repair practices.

Industry Trends Driving Innovation

• Miniaturization: As PCBs pack more components in smaller spaces, ultra-fine braid wires are being developed to handle micro-pitch rework.

• Environmentally Friendly Flux: The demand for halogen-free and low-residue fluxes is rising to meet RoHS and green manufacturing standards.

• Improved Heat Dissipation: Next-generation braid designs improve thermal transfer, reducing the risk of overheating pads.

• Automation Ready: Some manufacturing lines integrate automated desoldering with pre-cut braid segments for consistency.

Why Solder Wick Braid Wire Will Remain Essential

Even with advances in laser soldering and vacuum rework stations, solder wick braid wire remains unmatched for its simplicity, cost-effectiveness, and versatility. Its adaptability makes it valuable for both large-scale industrial use and individual repair technicians.

At Quande, we manufacture high-quality solder wick braid wire designed to meet the demands of modern electronics industries. Our products combine oxygen-free copper braids with carefully selected flux coatings, ensuring fast solder absorption and minimal residue. With a strong reputation for reliability, Quande provides solutions for manufacturers, repair professionals, and electronics enthusiasts worldwide.

For detailed specifications, bulk orders, or customized solutions, contact us today and discover how Quande solder wick braid wire can improve your electronics repair and rework efficiency.
