Modern electronic products are becoming smaller, more powerful, and more highly integrated. From industrial controllers and communication equipment to consumer electronics and smart devices, manufacturers need printed circuit boards that can accommodate increasingly complex components while maintaining consistent electrical and mechanical performance. SMT PCB Assembly has become a core manufacturing method for meeting these requirements.
Surface Mount Technology allows electronic components to be placed directly onto the surface of a printed circuit board instead of relying primarily on traditional through-hole mounting. When supported by accurate component placement, controlled soldering, inspection, and disciplined production processes, SMT PCB assembly can help manufacturers achieve compact designs, high production efficiency, and consistent assembly quality.
This guide explains the SMT PCB assembly process, its advantages, important quality considerations, common production problems, and the information buyers should prepare when working with an electronics manufacturing partner. The goal is to help product developers, purchasing teams, engineers, and OEM customers make better-informed assembly decisions.

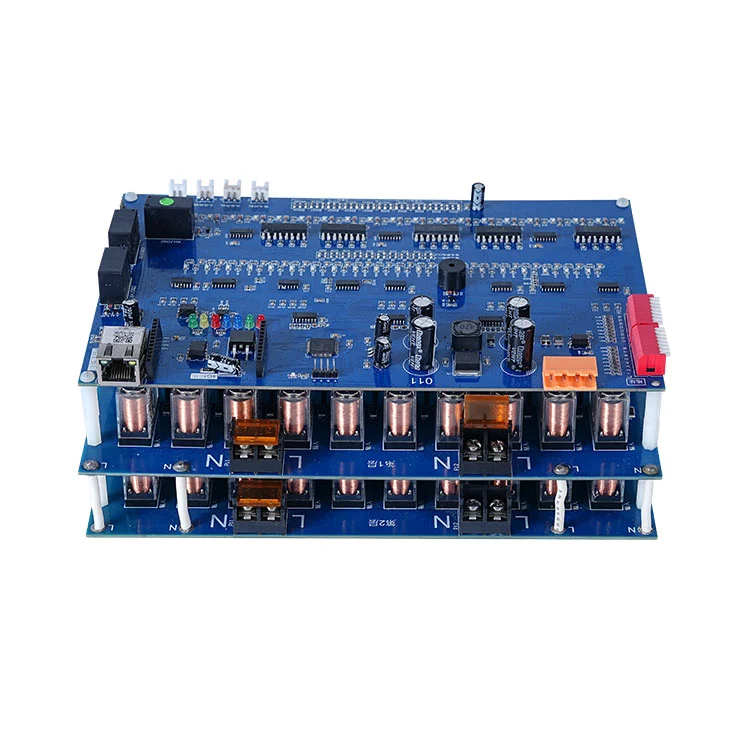

1. Understanding SMT PCB Assembly
SMT PCB Assembly is the manufacturing process used to mount surface-mount electronic components onto a printed circuit board. Instead of inserting component leads through drilled holes, SMT components are positioned on solder pads located on the PCB surface.
The process combines several highly controlled stages, including solder paste application, component placement, reflow soldering, inspection, and testing. Depending on the product, through-hole components, connectors, wires, or other parts may also be integrated into the finished board through additional processes.
The technology is particularly suitable for products containing a large number of components or components with small package dimensions. Automated SMT equipment can place components at high speed and repeatability, making the technology suitable for both prototype development and larger production volumes when the process is properly configured.
2. How the SMT PCB Assembly Process Works
Step 1: PCB and Production Data Preparation
Before assembly begins, the manufacturer reviews the PCB design and production files. Typical information includes PCB Gerber files, bill of materials, component placement data, component specifications, and assembly drawings.
This stage is important because missing or inconsistent information can cause delays later. Component part numbers, package types, polarity markings, reference designators, and placement coordinates should be consistent across the supplied documentation.
Step 2: Solder Paste Printing
Solder paste is applied to designated PCB pads through a stencil. The stencil aperture design, paste characteristics, printing pressure, squeegee speed, board support, and environmental conditions can all influence paste deposition.
Too much solder paste can contribute to bridging or solder-related defects, while insufficient paste can result in weak or incomplete solder joints. Consistent printing is therefore one of the foundations of a reliable SMT process.
Step 3: Automated Component Placement
Pick-and-place machines retrieve components from feeders and position them on the solder-paste-covered pads according to programmed coordinates. Modern equipment can handle very small components and high component counts with substantial placement repeatability.
Accurate feeder setup and component verification are essential. Incorrect feeder positions or component data can result in missing components, incorrect component values, reversed polarity, or placement errors.
Step 4: Reflow Soldering
After placement, the PCB passes through a reflow oven. Controlled heating gradually brings the solder paste through the required thermal stages, allowing solder particles to melt and form electrical and mechanical connections between components and PCB pads.
The thermal profile must be appropriate for the solder paste, PCB construction, and component limitations. Excessive heating can damage sensitive components, while insufficient or poorly controlled heating can create weak solder joints.
Step 5: Inspection
After reflow, the assembled PCB is inspected to identify defects. Automated optical inspection can check component presence, orientation, position, solder appearance, and other visible characteristics. X-ray inspection may be used where solder joints or connections are hidden from direct optical inspection.
Step 6: Functional or Electrical Testing
Depending on the product, manufacturers may perform electrical tests, in-circuit testing, functional testing, programming, or other verification procedures. Testing requirements should be defined before production begins.
| Process Stage | Primary Purpose | Typical Risk if Poorly Controlled |
|---|---|---|
| Data preparation | Ensure correct production information | Wrong components or incorrect placement data |
| Solder paste printing | Deposit accurate solder paste volumes | Bridging, insufficient solder, poor joints |
| Component placement | Position components accurately | Misalignment, missing parts, polarity errors |
| Reflow soldering | Create reliable solder joints | Cold joints, overheating, solder defects |
| Inspection | Detect assembly defects | Defects reaching later production stages |
| Testing | Verify electrical or functional performance | Unidentified functional failures |
3. Key Benefits of SMT PCB Assembly
Compact Product Design
SMT components are generally smaller than equivalent traditional through-hole components. This allows designers to increase component density and create more compact circuit boards, which is particularly valuable for portable electronics and space-constrained equipment.
High Placement Efficiency
Automated placement machines can position large numbers of components rapidly. This reduces the dependence on manual component placement and supports repeatable manufacturing for medium- and high-volume production.
Consistent Assembly Quality
Automated processes provide greater placement consistency than manual assembly when the equipment is properly programmed and maintained. Combined with controlled soldering and inspection, this can improve manufacturing repeatability.
Better Component Density
SMT components can be placed on both sides of many PCBs, depending on board design and manufacturing requirements. This provides designers with greater flexibility when managing component density and available board space.
Suitable for High-Volume Production
Once the process is validated, automated SMT assembly can support efficient repeat production. This is especially important for OEM customers who require consistent batches over extended product lifecycles.
Potentially Lower Assembly Costs
Automation can reduce manual labor requirements and improve production throughput. However, actual assembly cost depends on component count, board complexity, material prices, setup requirements, testing, inspection, production volume, and other project-specific factors.
4. Components Commonly Used in SMT Assembly
SMT assembly supports a broad range of electronic components. The selected package affects placement, soldering, inspection, PCB layout, and manufacturing difficulty.
| Component Type | Common SMT Package Examples | Typical Consideration |
|---|---|---|
| Resistors | Chip resistor packages | Value accuracy and package size |
| Capacitors | MLCC and other surface-mount packages | Voltage rating, capacitance, and package dimensions |
| Integrated circuits | QFP, QFN, BGA and related packages | Fine-pitch placement and inspection requirements |
| Diodes | SMD diode packages | Polarity and thermal requirements |
| Transistors | SOT and other SMD packages | Orientation and electrical specifications |
| LEDs | Various SMD LED packages | Polarity, optical characteristics, and thermal control |
Component availability should also be considered during product development. A technically suitable component may create procurement difficulties if it has long lead times, limited availability, or frequent lifecycle changes. Early communication between engineering, purchasing, and the assembly supplier can reduce these risks.
5. Quality Control and Inspection
Quality control in SMT PCB assembly begins before components reach the production line. Incoming material inspection, process monitoring, automated inspection, and final testing all contribute to overall product reliability.
Incoming Material Verification
Components and PCBs should be checked against the approved bill of materials and production requirements. Part numbers, quantities, packaging, labels, and visible condition should be verified according to the manufacturer's procedures.
Solder Paste Inspection
Solder paste deposition can be monitored using inspection equipment to identify variations in paste volume, area, alignment, or height. Early detection helps prevent large numbers of boards from progressing with the same printing problem.
Automated Optical Inspection
AOI systems use cameras and programmed inspection criteria to identify visible assembly problems. These can include missing components, incorrect orientation, misplaced parts, solder bridging, and other detectable defects.
X-Ray Inspection
Some component packages contain solder joints that cannot be inspected effectively from the surface. X-ray inspection can provide visibility into hidden connections, which can be valuable for packages such as BGAs.
Electrical and Functional Testing
Visual inspection alone cannot verify complete electrical functionality. Depending on the product, functional testing can confirm whether the assembled board operates according to defined requirements.
6. Common SMT Assembly Problems and Solutions
Solder Bridging
Solder bridging occurs when solder unintentionally connects adjacent pads or leads. It can be associated with excessive solder paste, unsuitable stencil apertures, component alignment, PCB design, or reflow conditions.
The solution may involve optimizing stencil design, controlling paste deposition, improving placement accuracy, and reviewing the thermal process.
Insufficient Solder
Insufficient solder can compromise mechanical and electrical connections. Possible causes include poor paste deposition, blocked stencil apertures, unsuitable printing parameters, or process contamination.
Component Misalignment
Components may shift during placement or reflow. Accurate machine calibration, appropriate PCB pad design, controlled solder paste printing, and suitable thermal processing can reduce the risk.
Tombstoning
Tombstoning occurs when one end of a small component lifts away from the PCB during reflow. Uneven solder paste volumes, pad geometry, thermal imbalance, or component characteristics may contribute to this defect.
Missing or Incorrect Components
These problems can originate from incorrect feeder setup, component identification errors, outdated BOM information, or programming mistakes. Barcode systems, feeder verification, and controlled production documentation can help reduce these risks.
| Problem | Possible Cause | Corrective Direction |
|---|---|---|
| Solder bridging | Excess solder paste or unsuitable pad/stencil design | Review stencil, printing, placement, and reflow parameters |
| Insufficient solder | Low paste volume or printing inconsistency | Inspect stencil and printing process |
| Misalignment | Placement or board registration issue | Verify machine calibration and fiducials |
| Tombstoning | Uneven thermal or solder conditions | Review pad design, paste balance, and reflow profile |
| Wrong component | Feeder, BOM, or identification error | Strengthen material and feeder verification |
7. Design Considerations Before Production
Many assembly problems can be reduced before manufacturing starts. Engineers should consider manufacturing requirements during PCB design rather than waiting until the board reaches production.
Component Spacing
Adequate spacing helps placement equipment, inspection systems, rework operations, and soldering processes. Extremely crowded layouts can increase manufacturing difficulty and inspection limitations.
Pad and Footprint Accuracy
Component footprints should correspond accurately to manufacturer package specifications. Incorrect footprints can lead to poor solder joints, placement problems, or unreliable electrical connections.
Thermal Considerations
Large copper areas, thermal masses, and components with different heat sensitivities can affect reflow behavior. PCB design and thermal profiling should therefore be considered together.
Fiducial Marks
Appropriate fiducials can help automated equipment accurately identify board position and compensate for manufacturing tolerances. Their placement and design should follow the capabilities of the intended assembly process.
Design for Test
Test points and accessible measurement locations can simplify electrical verification and troubleshooting. Designing testability into the PCB can reduce future production and maintenance difficulties.
- Use verified component footprints.
- Maintain practical component spacing.
- Consider stencil and solder-paste requirements.
- Provide appropriate fiducial marks where required.
- Review thermal characteristics of large copper areas.
- Include suitable test points for required testing.
- Discuss difficult components with the assembly manufacturer before production.
8. How to Evaluate an SMT PCB Assembly Supplier
Selecting an assembly partner is an important decision because supplier capability can directly influence quality, lead time, production stability, and the ability to scale a product.
Review Manufacturing Capability
Confirm whether the supplier can handle the component sizes, board dimensions, production volume, soldering requirements, inspection methods, and testing procedures required by the project.
Ask About Quality Control
A capable supplier should be able to explain how materials, solder paste printing, component placement, reflow, inspection, and final testing are controlled.
Evaluate Communication
Clear communication is especially important when a product includes complex components or frequent engineering changes. The supplier should be able to identify missing information and communicate production risks before they become costly problems.
Consider Production Scalability
A supplier may successfully build prototypes but have limited capacity for larger volumes. If the product is expected to grow, confirm that the manufacturing partner can support the anticipated production requirements.
| Supplier Evaluation Area | What to Verify |
|---|---|
| Equipment | Placement, printing, reflow, inspection, and testing capabilities |
| Component support | Package size, component types, and difficult-device capability |
| Quality control | Incoming inspection, process monitoring, AOI, X-ray, and testing |
| Engineering support | Ability to identify manufacturing risks before production |
| Capacity | Ability to support prototype, pilot, and volume production |
| Communication | Clear handling of technical changes and production feedback |
9. Moving From Prototype to Mass Production
The transition from prototype to volume production can expose problems that were not obvious during early development. A board that works electrically may still require manufacturing improvements before it can be produced consistently at scale.
Prototype Stage
Prototype assembly is primarily focused on verifying circuit functionality, component compatibility, mechanical integration, and initial manufacturability.
Pilot Production
A pilot run provides an opportunity to validate production parameters, assembly time, inspection criteria, testing procedures, material flow, and potential recurring defects.
Mass Production
Once the process has been validated, production can be scaled according to demand. Controlled documentation, approved BOMs, revision management, traceability, and process monitoring become increasingly important as production volume increases.
For OEM projects, it is useful to establish a clear revision-control process before mass production begins. Every production batch should be built against the correct approved documentation.
10. Frequently Asked Questions
1. What is SMT PCB Assembly?
SMT PCB Assembly is the process of mounting surface-mount electronic components directly onto PCB pads. It typically involves solder paste printing, automated component placement, reflow soldering, inspection, and testing.
2. What is the main advantage of SMT assembly?
SMT assembly supports compact PCB designs, high component density, automated placement, repeatable production, and efficient manufacturing for many electronic products.
3. Can SMT assembly be used for prototypes?
Yes. SMT assembly can be used for prototypes, pilot production, and larger production runs. The production approach may differ according to board complexity, quantity, component availability, and required turnaround time.
4. What files are required for SMT PCB Assembly?
Common production information includes PCB Gerber files, bill of materials, component placement data, assembly drawings, component specifications, and revision information. Exact requirements vary by manufacturer.
5. How does reflow soldering work?
Reflow soldering heats the PCB through a controlled thermal profile so that solder paste melts and forms connections between surface-mount components and PCB pads. The profile must be suitable for the solder material, PCB, and components.
6. What causes SMT soldering defects?
Defects can result from solder paste printing, stencil design, component placement, PCB layout, contamination, component characteristics, or unsuitable reflow conditions. The exact cause should be determined from inspection and process data.
7. Is AOI enough to inspect an assembled PCB?
AOI is useful for detecting many visible assembly defects, but it cannot inspect every hidden connection or verify complete product functionality. X-ray, electrical testing, and functional testing may be required depending on the PCB design.
8. Can SMT and through-hole components be used on the same PCB?
Yes. Many electronic assemblies use a combination of SMT and through-hole components. The appropriate assembly sequence depends on the board design, component types, soldering requirements, and manufacturing process.
9. What should I consider when selecting an SMT PCB Assembly supplier?
Consider equipment capability, component package support, inspection systems, testing capability, quality controls, engineering support, production capacity, communication, and experience with boards of similar complexity.
10. How can I reduce SMT PCB assembly costs?
Cost can often be influenced by component selection, PCB design, production volume, board complexity, material availability, testing requirements, and process efficiency. Early design and manufacturing collaboration can help identify unnecessary costs before production.
11. Final Considerations for SMT PCB Assembly
SMT PCB Assembly has become an essential manufacturing technology for modern electronics because it supports compact designs, high component density, automated production, and repeatable assembly. However, successful SMT manufacturing depends on much more than automated placement equipment.
PCB design, component selection, solder paste printing, placement accuracy, reflow control, inspection, testing, and revision management all contribute to the final quality of an assembled board. Addressing these factors early can reduce manufacturing delays, rework, material waste, and unexpected production costs.
For companies developing new electronic products, the best approach is to involve the assembly partner before production begins. Sharing complete technical documentation and clearly communicating performance, volume, component, and testing requirements allows potential manufacturing challenges to be identified earlier.
