How Does Precompressed Pressboard Compare to Standard Pressboard in Dielectric Strength and Mechanical Stability

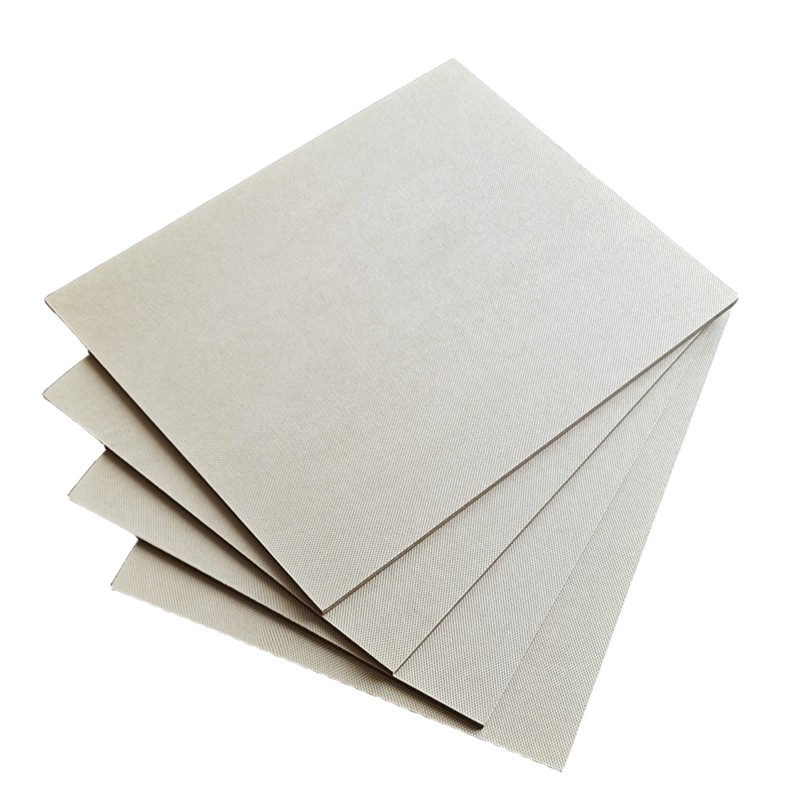

When selecting materials for high-voltage transformer insulation, engineers often weigh the trade-offs between Electrical Insulation Precompressed Pressboard and standard pressboard. While both are cellulose-based products, the manufacturing process—particularly the application of sustained pressure during drying—creates significant differences in dielectric strength, mechanical stability, and long-term reliability. Hanyao specializes in precision-engineered precompressed pressboard solutions that address these critical performance gaps.

Dielectric Strength Comparison

Dielectric strength measures a material’s ability to withstand electrical stress without breakdown. Precompressed pressboard undergoes controlled compaction before drying, reducing internal voids and ensuring uniform density. This directly enhances its electric strength, especially in oil-impregnated conditions.

For critical applications such as transformer winding insulation and coil spacers, the superior dielectric performance of Electrical Insulation Precompressed Pressboard translates directly into higher safety margins and extended equipment life.

Mechanical Stability Under Thermal and Compressive Stress

Mechanical stability determines how well a material retains its dimensional integrity under clamping pressure, vibration, and thermal cycling. Precompressed pressboard exhibits significantly higher creep resistance and elastic modulus compared to standard grades.

Hanyao’s manufacturing process applies calibrated pressure during the drying stage, locking fibers into a dense matrix. This results in pressboard that maintains clamping pressure over decades of thermal cycling—a critical factor in preventing winding movement and short-circuit failures.

Why Precompressed Pressboard Outperforms in Real-World Applications

In transformer service, insulation materials face combined electrical, thermal, and mechanical stresses. Precompressed pressboard offers three distinct advantages:

1. Reduced Partial Discharge – Lower void content minimizes ionization sites.

2. Stable Clamping Force – Minimal creep ensures winding integrity over time.

3. Higher Short-Circuit Withstand Capability – Enhanced mechanical rigidity resists electromagnetic forces during fault conditions.

Standard pressboard, while more economical initially, often requires higher safety margins and may lead to premature degradation in demanding high-voltage applications.

Electrical Insulation Precompressed Pressboard FAQ

What makes precompressed pressboard more reliable than standard pressboard for high-voltage transformer insulation?

Precompressed pressboard is manufactured under controlled pressure during the drying process, which significantly reduces internal voids and creates a more uniform density profile. This directly improves dielectric strength and minimizes the risk of partial discharge. Additionally, the precompression reduces creep under mechanical load, ensuring that clamping forces on transformer windings remain stable over decades of thermal cycling. Standard pressboard, lacking this compaction, is more prone to thickness relaxation and inconsistent electrical performance.

How does the long-term aging behavior differ between precompressed pressboard and standard pressboard in oil-filled transformers

Precompressed pressboard demonstrates superior resistance to thermal aging due to its reduced oxygen permeability and more stable fiber structure. Because it contains fewer microscopic voids, it absorbs less moisture and degrades more slowly under elevated temperatures. Standard pressboard often shows accelerated loss of tensile strength and increased shrinkage after extended thermal exposure, which can lead to loosening of windings and reduced dielectric margins. For transformers expected to operate beyond 30 years, precompressed pressboard is the preferred choice.

Can precompressed pressboard be used as a direct replacement for standard pressboard in existing designs

In most cases, yes, but design verification is recommended. Precompressed pressboard has slightly higher density and reduced thickness tolerance, which can affect winding dimensions and clamping pressure if not accounted for. When substituting, manufacturers typically adjust component thickness specifications to maintain the same assembled height and clamping force. Hanyao provides technical support to help customers integrate precompressed pressboard into existing designs without requiring major tooling changes, ensuring a seamless upgrade in performance.

Conclusion

For high-voltage equipment where dielectric strength and mechanical stability directly impact reliability, Electrical Insulation Precompressed Pressboard consistently outperforms standard pressboard. Its lower void content, superior creep resistance, and stable long-term performance make it the preferred choice for transformer winding insulation, coil spacers, and structural components. Hanyao offers a full range of precompressed pressboard products manufactured under strict process controls to meet international standards.

Contact us to discuss your application requirements or request technical samples. Our engineering team is ready to support your design validation and material selection.
