How Does Bondable Magnet Wire Improve Coil Manufacturing Efficiency?

Article Summary:
Bondable magnet wire is an advanced solution designed to simplify coil manufacturing by enabling self-bonding between wire turns. This article explains how it works, its structure, technical advantages, and how it solves common industry challenges such as low production efficiency, inconsistent coil quality, and high assembly costs. It also provides selection guidance, technical parameters to support informed decision-making.

Table of Contents

• 1. Overview of Bondable Magnet Wire
• 2. How Bondable Magnet Wire Works
• 3. Structure and Materials
• 4. Key Advantages and Problem Solving
• 5. Technical Parameters
• 6. Typical Applications
• 7. How to Choose the Right Product
• 8. Frequently Asked Questions

1. Overview of Bondable Magnet Wire

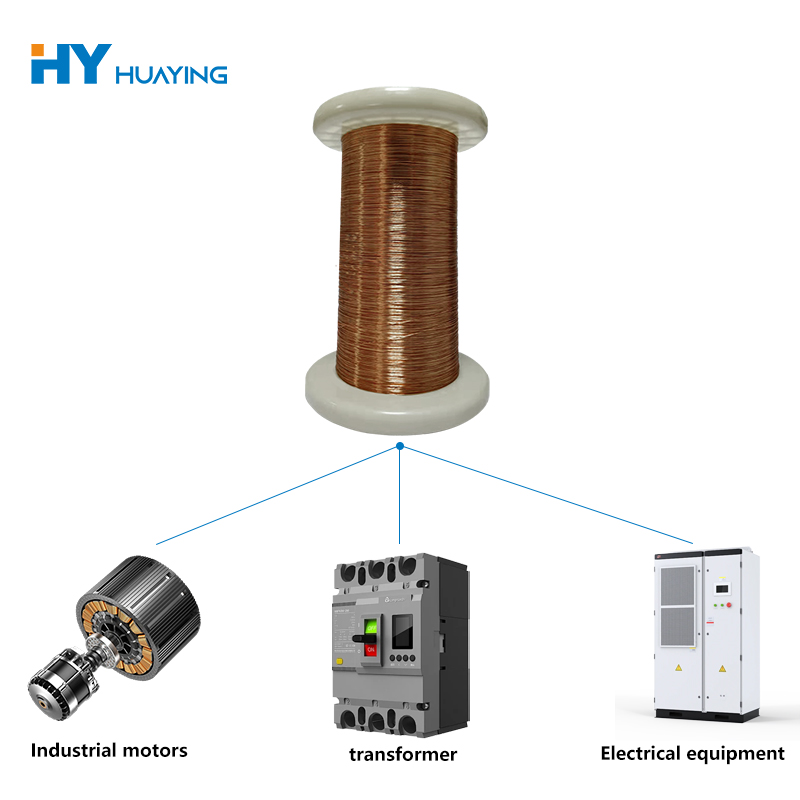

Bondable magnet wire, also known as self-bonding magnet wire, is a specialized insulated conductor coated with an अतिरिक्त adhesive layer. This bonding layer enables the wire to adhere to itself under specific activation conditions such as heat or solvent.

Unlike conventional magnet wire, which requires external components like bobbins, tapes, or varnish, bondable magnet wire allows the creation of self-supporting coils. This significantly simplifies the manufacturing process and reduces production steps. :contentReference[oaicite:0]{index=0}

Companies such as Huizhou Huaying Electronic Technology Co., Ltd provide high-performance bondable magnet wire solutions tailored for modern electrical and electronic applications.

2. How Bondable Magnet Wire Works

The working principle is based on the activation of the bonding layer:

• Step 1: Coil Winding – The wire is wound into the desired coil shape.
• Step 2: Activation – Heat, solvent, or electrical current activates the adhesive coating.
• Step 3: Bond Formation – Adjacent turns bond together as the coating softens and flows.
• Step 4: Solidification – Upon cooling, the bond hardens, locking the coil structure.

This process creates a stable, compact coil without additional structural support. :contentReference[oaicite:1]{index=1}

Depending on the coating type, bonding temperatures typically range from 100°C to 180°C, ensuring flexibility across various manufacturing environments. :contentReference[oaicite:2]{index=2}

3. Structure and Materials

Bondable magnet wire consists of multiple layers designed for performance and durability:

• Conductor Core: Usually copper for high conductivity
• Primary Insulation: Polyester, polyurethane, or polyimide
• Bonding Layer: Thermoplastic or thermoset adhesive coating

The bonding layer remains inactive during winding and activates only under controlled conditions, ensuring process reliability. :contentReference[oaicite:3]{index=3}

Common bonding materials include:

• Polyvinyl butyral (low activation temperature)
• Polyamide (high thermal resistance)
• Epoxy coatings (enhanced durability)

4. Key Advantages and Problem Solving

Bondable magnet wire directly addresses several common manufacturing pain points:

1. Eliminates Additional Components

• No need for bobbins, tapes, or varnishing
• Reduces material costs and assembly complexity

2. Improves Production Efficiency

• Shortens manufacturing cycles
• Reduces work-in-progress inventory

3. Enables Compact Designs

• Supports smaller and lighter coil structures
• Maximizes copper utilization for better performance

4. Enhances Mechanical Stability

• Strong turn-to-turn bonding prevents displacement
• Improves vibration resistance and durability

5. Reduces Manufacturing Errors

• Consistent coil geometry
• Improved repeatability in automated production

These advantages make it ideal for high-precision and high-volume production environments. :contentReference[oaicite:4]{index=4}

5. Technical Parameters

These specifications can be customized depending on application requirements and environmental conditions.

6. Typical Applications

Bondable magnet wire is widely used in industries requiring compact and reliable coils:

• Electric motors and micro-motors
• Transformers and inductors
• Audio equipment (voice coils)
• Automotive electronics
• Medical devices
• Consumer electronics

Its ability to form stable, self-supporting coils makes it particularly valuable in space-constrained applications. :contentReference[oaicite:5]{index=5}

7. How to Choose the Right Product

Choosing the right bondable magnet wire requires a structured evaluation:

1. Thermal Requirements

• Select appropriate insulation class based on operating temperature

2. Bonding Method

• Heat activation for mass production
• Solvent activation for precision applications

3. Mechanical Strength

• Evaluate bonding strength for vibration-heavy environments

4. Size and Design Constraints

• Choose wire diameter based on coil compactness requirements

5. Supplier Capability

Reliable manufacturers such as Huizhou Huaying Electronic Technology Co., Ltd provide customized specifications, consistent quality, and technical support.

8. Frequently Asked Questions

Q1: What is the main advantage of bondable magnet wire?
A: It enables self-supporting coils, eliminating the need for additional structural components and simplifying manufacturing.

Q2: How is the bonding activated?
A: Bonding can be activated using heat, solvents, or electrical current depending on the coating type.

Q3: Can it replace traditional magnet wire completely?
A: It depends on the application. For compact or high-efficiency designs, it is often a superior alternative.

Q4: What industries benefit the most?
A: Electronics, automotive, medical devices, and industrial equipment manufacturing.

Q5: Does it improve production speed?
A: Yes, it reduces assembly steps and accelerates the overall manufacturing process.

Conclusion

Bondable magnet wire represents a significant advancement in coil manufacturing technology. By enabling self-bonding structures, it reduces costs, enhances efficiency, and supports innovative product designs.

For manufacturers seeking reliable performance and scalable production, partnering with Huizhou Huaying Electronic Technology Co., Ltd ensures access to high-quality solutions tailored to modern industrial needs.

Contact us today to get customized bondable magnet wire solutions and professional technical support for your next project.
