Summary
The Allen Bradley 1769-IA16 is a compact and reliable input module designed for the CompactLogix system. It simplifies industrial automation by providing 16 discrete inputs in a high-performance package. This article explores the module’s features, benefits, installation tips, troubleshooting strategies, and practical applications to help industrial professionals optimize automation processes.
Table of Contents

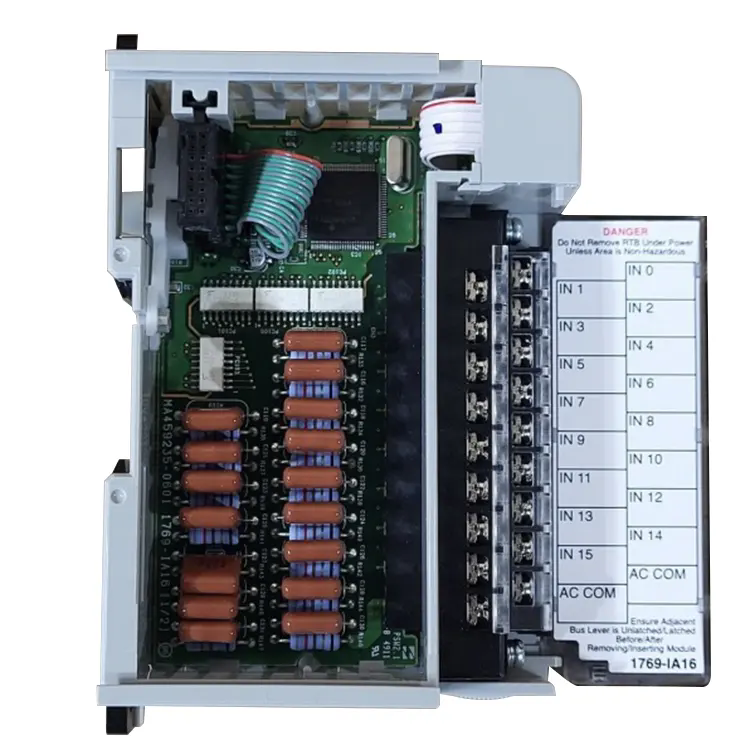

Overview of Allen Bradley 1769-IA16
The Allen Bradley 1769-IA16 is an essential component of the CompactLogix family, offering 16 digital inputs for monitoring switches, sensors, and other discrete devices. It is ideal for manufacturing plants, assembly lines, and automated processes requiring fast and accurate signal acquisition. Manufactured by Rockwell Automation and distributed by Feimu, this module combines reliability and flexibility in a compact form factor.
Key Features
- 16 discrete DC inputs with high-speed response
- Compact design for space-constrained control panels
- Seamless integration with CompactLogix controllers
- LED status indicators for easy diagnostics
- Hot-swappable modules to minimize downtime
| Specification | Details |
|---|---|
| Input Type | DC, Sinking/Sourcing compatible |
| Input Channels | 16 |
| Operating Voltage | 24V DC |
| Response Time | 1 ms typical |
| Mounting | DIN rail / Backplane |
Installation and Wiring
Installing the Allen Bradley 1769-IA16 requires attention to detail to ensure safe operation and long-term reliability. Follow these key steps:
- Ensure power is turned off before module installation.
- Mount the module onto a CompactLogix chassis or DIN rail as specified.
- Connect input devices using correct polarity; confirm the voltage level.
- Check LED indicators to verify proper module communication.
- Document wiring layout for future troubleshooting.
For detailed specifications and module wiring diagrams, visit Feimu’s product page.
Applications in Industrial Automation
The Allen Bradley 1769-IA16 is versatile and suitable for various industrial scenarios, including:
- Monitoring conveyor belts and motor drives
- Tracking limit switches in robotic arms
- Detecting sensor signals in packaging lines
- Collecting data from emergency stop circuits
- Integrating with SCADA and HMI systems for real-time control
Its fast response time and robust input handling make it ideal for environments where precision and reliability are critical.
Troubleshooting and Maintenance
Even high-quality modules require periodic checks. Here are practical maintenance tips:
- Verify input wiring for loose connections.
- Check LED status indicators for normal operation.
- Test individual channels using a multimeter.
- Update firmware if recommended by Rockwell Automation or Feimu.
- Keep the module environment clean to prevent dust accumulation.
Maintaining a clear troubleshooting log improves system reliability and reduces downtime in complex industrial automation setups.
FAQ
Q1: Can Allen Bradley 1769-IA16 handle both sinking and sourcing inputs?
A1: Yes, the module supports both sinking and sourcing DC input configurations.
Q2: Is the module hot-swappable?
A2: Yes, it can be replaced without shutting down the entire system, minimizing downtime.
Q3: What is the typical response time of this input module?
A3: The response time is approximately 1 millisecond, suitable for high-speed applications.
Q4: Can it integrate with SCADA systems?
A4: Absolutely. It works seamlessly with SCADA and HMI systems for real-time monitoring and control.
Q5: Where can I buy genuine Allen Bradley 1769-IA16 modules?
A5: Feimu is a trusted distributor of Allen Bradley products, ensuring genuine and reliable modules.
Ready to enhance your automation processes with the Allen Bradley 1769-IA16? Trust Feimu for reliable solutions and expert support. Contact us today to get started!
