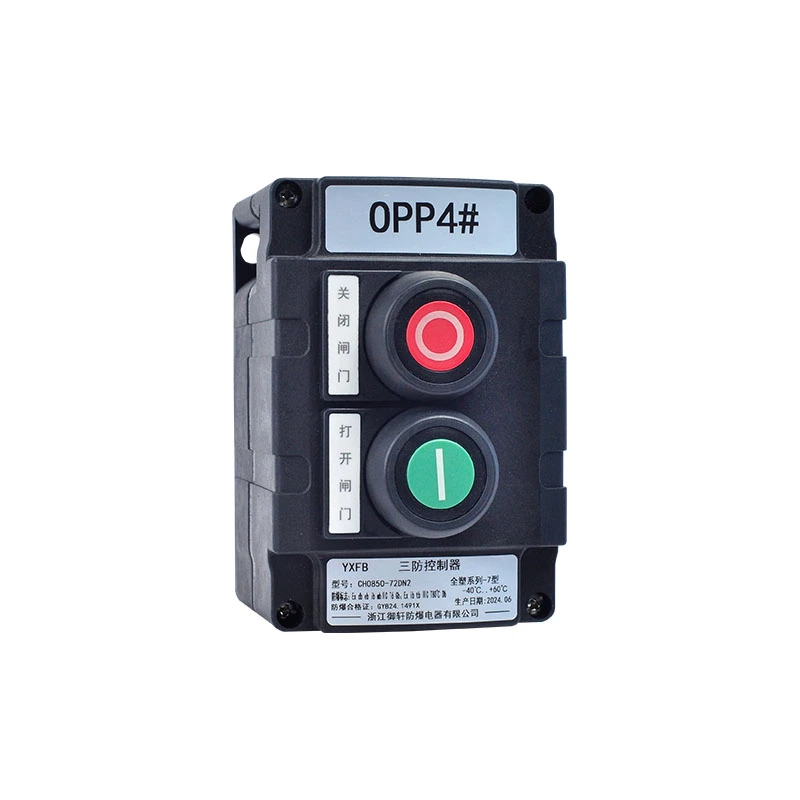

How Does a Sealed Plastic Control Box Protect Against Moisture and Dust
2026-03-18
When protecting sensitive electronics, environmental invaders like moisture and dust are the primary threats to longevity and performance. A Sealed Plastic Control Box acts as the first line of defense, ensuring that internal components remain operational regardless of external conditions. At Yuxuan, we engineer these enclosures to meet rigorous industrial standards, providing a barrier that combines durability with precision engineering.
The protection mechanism relies on the physical properties of the plastic and the integrity of the seal. High-quality plastics used by Yuxuan are inherently resistant to corrosion and do not conduct electricity, making them ideal for housing electrical systems. When the enclosure is properly sealed, it creates a microenvironment inside the box that is isolated from the humidity, dust, and corrosive elements found in the outside world.
The Science Behind the Seal
To understand how a Sealed Plastic Control Box works, one must look at the ingress Protection (IP) rating system. These ratings define the level of sealing effectiveness. A box rated IP66 or IP67, for example, offers complete protection against dust and powerful water jets or temporary immersion.
The table below breaks down how specific design features contribute to overall protection:
| Feature | Function | Benefit |
|---|---|---|
| Silicone Gaskets | Compresses between the lid and the base to fill microscopic gaps | Creates an airtight and watertight barrier |
| Tongue and Groove Design | Creates a labyrinth path that makes it difficult for particles to enter | Prevents dust ingress even if the gasket experiences slight compression set |
| Marine-Grade Plastic (ABS/PC) | Resists UV radiation and chemical corrosion | Prevents the housing from becoming brittle or cracked over time |
| External Mounting Flanges | Allows for secure mounting without drilling through the lid | Maintains the integrity of the seal by avoiding unnecessary holes |
Key Mechanisms of Protection
The effectiveness of a Sealed Plastic Control Box from Yuxuan can be broken down into three distinct mechanisms:
-
Physical Barrier: The rigid walls of the enclosure stop large particles, insects, and debris from making contact with the electronics.
-
Compression Seal: The gasket between the lid and the base prevents the ingress of water vapor and fine dust, which can be as small as a few microns.
-
Internal Pressure Equalization: Many high-quality boxes include a breather vent that allows air pressure to equalize without letting moisture in, preventing the "vacuum effect" that can suck water through a weak seal.
Frequently Asked Questions
To provide further clarity on how these enclosures function, here are some common inquiries regarding their protective capabilities.
FAQ 1: Can a Sealed Plastic Control Box be submerged in water without damaging the electronics inside?
It depends entirely on the specific Ingress Protection (IP) rating of the box. A Sealed Plastic Control Box rated IP67 is designed to withstand temporary immersion in water, typically up to 1 meter for 30 minutes. However, a box rated IP68 is suitable for continuous submersion under conditions specified by the manufacturer. Yuxuan clearly labels the ratings on our products to ensure you select the right level of waterproofing for your specific application, whether it is for splash-prone areas or constant underwater use.
FAQ 2: How does the plastic material prevent condensation inside the box if the temperature changes?
While the seal keeps liquid water out, temperature changes can cause condensation. High-quality Sealed Plastic Control Box solutions address this in two ways. First, the plastic material itself has low thermal conductivity, which slows down rapid temperature swings. Second, for environments with extreme temperature fluctuations, Yuxuan offers boxes equipped with special breather vents. These vents use a membrane that allows air pressure to equalize while blocking moisture droplets, effectively stopping the "breathing" action that leads to internal condensation.
FAQ 3: Does the seal wear out over time, and how does that affect dust protection?
Yes, all seals can experience compression set over many years, but quality design mitigates this risk. The gaskets in a Sealed Plastic Control Box from Yuxuan are made from high-grade silicone that retains its flexibility for decades. Furthermore, the mechanical design of the lid often includes a compression stop, which prevents the user from over-tightening and crushing the gasket. This ensures that the dust-proof integrity remains intact for the operational life of the enclosure, maintaining a clean, contaminant-free interior.
Conclusion
Selecting the right enclosure is critical to the success of your project. A properly designed Sealed Plastic Control Box ensures that dust and moisture never compromise your investment. At Yuxuan, we are committed to providing enclosures that stand up to the toughest environments.
If you are looking for a reliable housing solution for your next project, we are here to help. Contact us today for expert advice and custom sealing solutions tailored to your needs.
