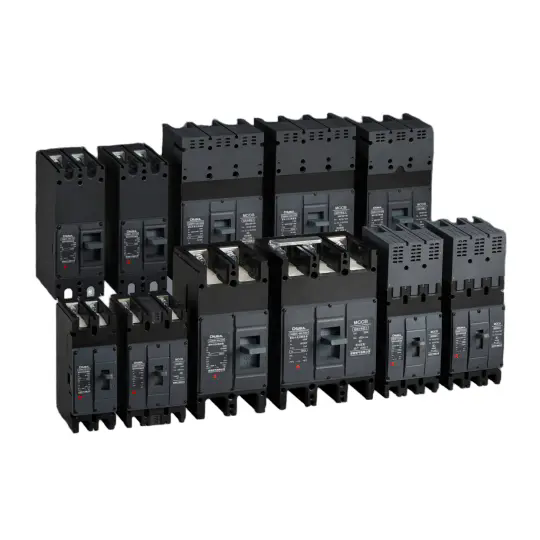

How Does a PV DC MCCB Ensure Safe and Reliable Solar Power Distribution?

As solar energy continues to gain momentum across residential, commercial, and utility-scale projects, one critical component plays a decisive role in ensuring the safety and reliability of these systems: the PV DC MCCB. Unlike conventional AC circuit breakers, PV DC MCCBs are specifically engineered to address the unique challenges of direct current generated by solar panels.

Direct current circuits behave differently compared to alternating current circuits. Once a DC arc is formed, it is much more difficult to extinguish because the current flows continuously without a zero-crossing point. This means that devices designed for alternating current cannot simply be repurposed for solar installations. Without the right breaker, risks such as overheating, equipment damage, and even fire hazards could escalate.

A PV DC MCCB steps in as a specialized protective device that combines robust design with advanced arc-extinguishing technologies. It not only interrupts fault currents safely but also provides system operators with confidence that their solar investments are protected under varying environmental and load conditions.

The core attributes of a PV DC MCCB include:

These specifications illustrate that a PV DC MCCB is not just another switchgear product—it is a purpose-built solution designed to meet the rigorous safety standards demanded by solar applications worldwide.

How Is a PV DC MCCB Applied in Solar Power Systems?

Understanding the role of a PV DC MCCB requires examining how it integrates into photovoltaic infrastructure. Solar power systems are complex networks where generation, storage, and distribution need to be coordinated efficiently. The MCCB plays a crucial role in each step.

1. PV Array Protection

The MCCB is typically installed between the solar panels (or strings of panels) and the combiner box. It safeguards the system by preventing excessive current flow caused by short circuits, reverse currents, or mismatched strings. Without this line of defense, panels could sustain irreversible damage.

2. Combiner Box and DC Distribution

In larger solar farms, combiner boxes consolidate currents from multiple strings. A PV DC MCCB within the box ensures that if one section encounters a fault, the rest of the system continues operating. This sectional protection is critical for minimizing downtime and optimizing overall efficiency.

3. Inverter Protection

The inverter, which converts DC to AC, is one of the most expensive pieces of equipment in any solar project. By installing MCCBs before the inverter input, operators ensure that overcurrents or transient faults do not damage sensitive electronic components.

4. Battery Energy Storage Systems (BESS)

With the rise of battery integration, MCCBs also protect storage units from faults during charging and discharging cycles. A reliable MCCB prevents risks such as battery overheating or catastrophic failure.

5. Utility-Scale Solar Fields

At utility scale, MCCBs are deployed across string-level, array-level, and feeder-level protection schemes, ensuring that large installations can be managed safely and comply with strict utility codes.

From small rooftop setups to massive solar farms, the PV DC MCCB is the invisible shield that ensures systems perform consistently and securely.

How Does a PV DC MCCB Improve Safety, Longevity, and Efficiency?

The importance of a PV DC MCCB goes beyond basic current interruption. Its design and operational benefits address three major aspects of solar system performance.

1. Safety Enhancement

• Arc Suppression: Advanced arc chute systems and magnetic blow-out technology extinguish DC arcs quickly.

• Thermal Protection: Built-in thermal sensors trip the breaker when prolonged overloads occur.

• Short-Circuit Defense: High breaking capacities allow the MCCB to clear faults before they escalate into system-wide failures.

2. Longevity of Equipment

By providing precise and timely disconnection, the MCCB prevents stress on cables, connectors, inverters, and batteries. This directly extends the lifespan of expensive components, maximizing return on investment for solar projects.

3. Efficiency in Operation

• Selective Coordination: MCCBs can be configured for selective tripping, ensuring only the affected circuit disconnects while the rest remain operational.

• Reduced Downtime: Easy reset and maintenance procedures minimize repair-related downtime.

• Scalability: With wide current and voltage ratings, MCCBs accommodate system expansions without requiring a complete redesign.

These three pillars—safety, longevity, and efficiency—make the MCCB a backbone of modern photovoltaic protection architecture.

How Can Businesses Choose the Right PV DC MCCB for Their Needs?

Selecting the right PV DC MCCB involves more than just matching current ratings. Each project presents unique requirements that must be carefully considered.

Key Selection Factors

1. System Voltage and Current

   • Ensure the MCCB’s rated voltage matches the maximum open-circuit voltage of the PV array.

   • The rated current must accommodate both continuous operation and peak surges.

2. Breaking Capacity

   • Check the fault current levels at different points of the PV installation. The MCCB should have a breaking capacity sufficient to interrupt those currents safely.

3. Environmental Conditions

   • For rooftop and desert installations, choose MCCBs designed to withstand high ambient temperatures and humidity.

4. Pole Configuration

   • Select 2P, 3P, or 4P versions depending on how the strings and arrays are configured.

5. Standards Compliance

   • Always verify that the MCCB complies with international safety standards such as IEC/EN 60947-2.

6. Ease of Maintenance

   • Consider MCCBs with user-friendly designs that allow for fast inspection, replacement, or upgrades.

Frequently Asked Questions

Q1: How does a PV DC MCCB differ from a regular AC MCCB?
A PV DC MCCB is specifically engineered to handle direct current, which behaves differently from alternating current. Unlike AC, DC does not pass through zero-crossing points, making arcs harder to extinguish. PV DC MCCBs use arc chute chambers, magnetic blow-out systems, and heat-resistant materials to safely break DC circuits—capabilities that a regular AC MCCB lacks.

Q2: Can one PV DC MCCB protect both solar panels and inverters?
Yes, provided the breaker is correctly rated. In most installations, separate MCCBs are used for panels, combiner boxes, and inverters to allow selective isolation. However, a properly chosen MCCB with the right current rating and breaking capacity can protect multiple downstream components if designed within the system’s safety coordination scheme.

As solar energy expands globally, the importance of robust protective devices becomes more pronounced. The PV DC MCCB stands out as a specialized solution that ensures safe current interruption, arc suppression, and reliable system operation. From rooftop residential systems to large-scale utility fields, its role in protecting both investments and lives cannot be overstated.

For companies seeking dependable performance, Laijian Electric offers PV DC MCCBs engineered with precision, tested for durability, and compliant with international standards. To learn more about how our solutions can support your solar projects with unmatched reliability and safety, we invite you to contact us today for detailed specifications and customized support.
