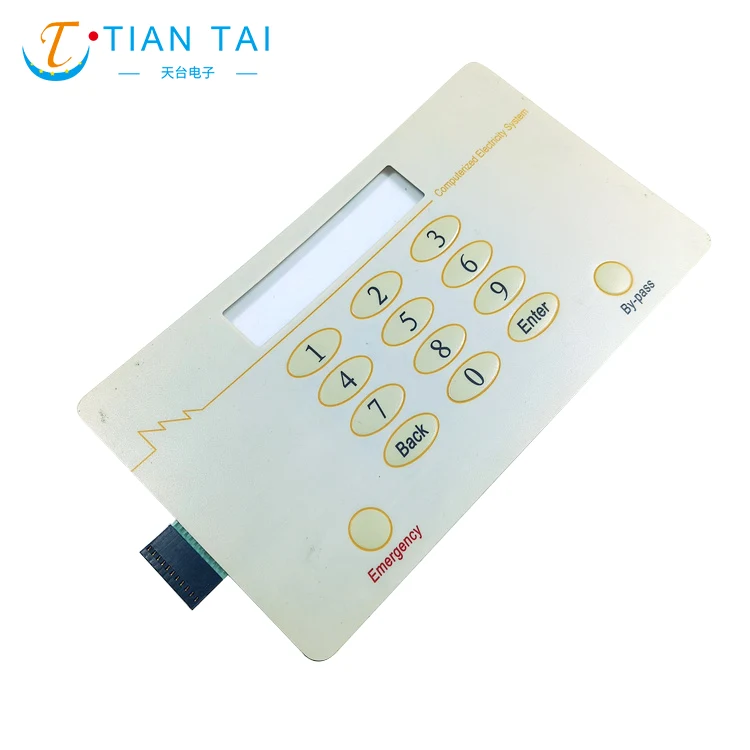

How Does a Gold-Plated Metal Dome Membrane Switch Reduce Contact Resistance in Low Energy Switching Applications

In low energy switching applications, every milliohm of contact resistance matters. A Gold-Plated Metal Dome Membrane Switch from Tiantai solves this challenge by using gold’s unique properties to ensure stable, low-resistance signal transmission. Unlike bare metal or nickel-plated domes, gold does not oxidize or tarnish, preserving a clean conductive path even when circuits operate at microampere or millivolt levels.

Why Contact Resistance Matters in Low Energy Circuits

Low energy switches carry minimal current, which lacks the power to break through surface films like oxides or sulfides. When contact resistance rises above acceptable levels (typically <100mΩ), false triggers or signal drops occur. A Gold-Plated Metal Dome Membrane Switch maintains consistently low resistance throughout its life.

How Gold Plating Lowers Contact Resistance

Gold is soft, noble, and highly conductive. When the dome collapses onto the PCB’s gold-plated pads, multiple microscopic contact points form under low actuation force. This increases the actual contact area while reducing constriction resistance. Tiantai applies precise gold thickness (0.1–0.5µm) to balance durability and cost.

Key mechanisms at work:

• No insulating film buildup between mating surfaces

• Stable contact resistance across temperature changes (-40°C to +85°C)

• Resistance remains low even after dust or light contamination

Gold-Plating Metal Dome Membrane Switch FAQ

Question: What happens if I use a non-gold-plated dome in a battery-powered medical device?
Answer: Over time, oxidation or sulfidation on silver or nickel domes raises contact resistance above the threshold for low-voltage detection. The device may register ghost presses or miss real inputs. A Gold-Plated Metal Dome Membrane Switch from Tiantai prevents this by maintaining a pristine conductive surface even after years of idle periods, ensuring reliable wake-up and measurement signals.

Question: Does thicker gold plating always mean lower contact resistance?
Answer: Not necessarily. Once gold thickness exceeds 0.3–0.5µm, contact resistance stabilizes. Thicker gold (e.g., 1µm) improves wear resistance but adds cost without reducing resistance further. Tiantai recommends 0.2–0.4µm gold over nickel underplating for most low energy switching applications, as this combination blocks base metal diffusion while keeping resistance below 50mΩ for over one million actuations.

Question: How does a gold-plated dome compare to a carbon pill or conductive rubber switch in low energy circuits?
Answer: Carbon and rubber contacts have inherent bulk resistance (100–500Ω) and variable contact resistance due to debris accumulation. A Gold-Plated Metal Dome Membrane Switch offers metallic, stable contact resistance under 100mΩ, crisp tactile feedback, and consistent performance from first press to last. For devices like glucose meters or remote sensors, Tiantai’s gold-plated design ensures every microamp reaches the microcontroller without attenuation.

Design Recommendations for Engineers

When specifying a Gold-Plated Metal Dome Membrane Switch for low energy applications, follow these guidelines:

• Match dome gold plating to PCB pad finish (both gold or both nickel-gold)

• Keep actuation force between 180–280g for reliable contact wiping action

• Test contact resistance at actual operating current (e.g., 10µA, 1mA, 10mA)

• Use sealed dome arrays to prevent foreign material ingress

Contact us today for engineering samples and application-specific resistance data. Tiantai provides fully customizable Gold-Plated Metal Dome Membrane Switch solutions for medical, industrial, and portable electronic devices where low energy reliability is critical. Reach out through our website or request a design consultation to solve your contact resistance challenges.
