How Does a DPDT Button Switch Improve Industrial Circuit Control?

A Dpdt Button Switch is designed for applications where two independent circuits need to be controlled through coordinated switching. DPDT stands for Double Pole Double Throw, meaning one switch mechanism can manage two circuit paths and change each between two output states. This makes it useful for industrial control panels, electrical cabinets, instrument boxes, machinery and other systems where reliable multi-circuit operation is required. Compared with a basic on/off push button, a DPDT configuration provides greater circuit-routing flexibility while keeping operation simple for users.

What Makes a Dpdt Button Switch Different?

The key feature of a Dpdt Button Switch is its double-pole, double-throw contact structure. In a typical configuration, two circuits can be switched simultaneously, allowing designers to coordinate different electrical functions with one operating action.

For industrial equipment, this structure can help simplify control interfaces and reduce the need for multiple independent switches. Depending on the selected design, DPDT switches can also support momentary or latching operation, giving equipment manufacturers more flexibility when developing control systems.

Yijia Industrial Electric Co., Ltd. provides DPDT button switches designed for industrial electrical applications, with a 2NO2NC contact structure and optional LED indicators. Its product range is available with different mounting sizes and materials to accommodate different panel designs.

How Does It Improve Control Performance?

A well-selected Dpdt Button Switch can improve the usability and organization of electrical equipment in several ways:

• Dual-circuit control: Two circuits can be managed through one coordinated switch mechanism.

• Flexible circuit routing: DPDT configurations can be used for changeover and other circuit-control functions.

• Clear operation: Push-button operation provides an intuitive interface for machine operators.

• Panel integration: Different mounting sizes and terminal configurations can support various control-panel layouts.

• Visual indication: Optional LED illumination can provide an immediate indication of operating status.

• Durable operation: Industrial models can be designed for repeated switching and demanding working environments.

For equipment manufacturers, these characteristics can contribute to a cleaner control-panel design and more convenient operation.

Where Is a DPDT Button Switch Commonly Used?

The application of a Dpdt Button Switch depends on its electrical rating, contact configuration, operating mode and installation environment. Typical applications include industrial control panels, distribution boxes, console boxes and instrument cabinets.

In applications involving motors, solenoids or other inductive loads, buyers should verify the switch's specific voltage and current ratings rather than selecting a component based only on its nominal current value. Load type and switching conditions can significantly affect contact performance and service life.

Why Is Proper Selection Important?

Choosing a Dpdt Button Switch requires more than checking whether the product is labeled "DPDT." Electrical and mechanical requirements should match the actual equipment design.

Important specifications include:

1. Rated voltage and current – Confirm that the switch is suitable for the intended electrical load.

2. Contact configuration – Check whether the required NO/NC arrangement matches the control circuit.

3. Operating mode – Determine whether momentary or latching action is required.

4. Mounting size – Match the switch to the available panel opening.

5. Protection level – Consider dust, moisture and other environmental conditions.

6. Indicator requirements – Select LED color and voltage when illuminated status indication is needed.

7. Material and durability – Choose suitable housing and contact materials for the working environment.

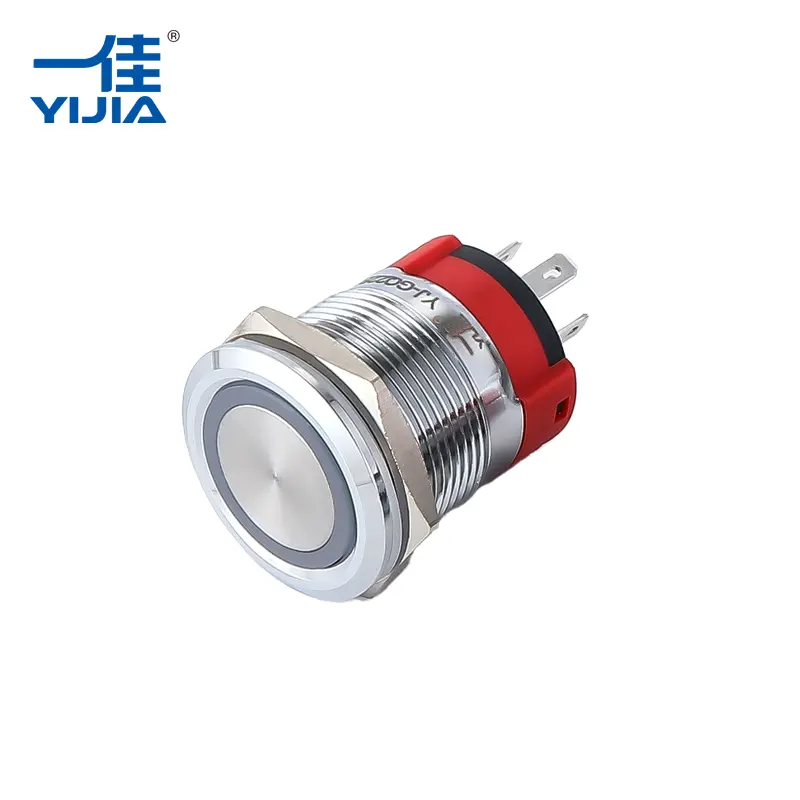

For example, Yijia's DPDT Button Switch range includes 19 mm, 22 mm and 25 mm mounting options, silver-alloy contacts, IP65 protection, optional IP67 customization and LED choices in multiple colors. The published specifications also state a mechanical life of up to 1,000,000 cycles for momentary versions.

What Benefits Can Yijia Industrial Electric Provide?

For OEM equipment manufacturers and industrial electrical buyers, product consistency and customization can be as important as basic switching performance.

Yijia Industrial Electric Co., Ltd. specializes in industrial electrical components including push button switches, key switches, contactors and signal lamps. Its product range is developed for control-panel and equipment applications, with options for different mounting dimensions, operating modes, LED configurations and housing materials.

This approach can be useful for buyers who need to integrate a Dpdt Button Switch into an existing product design rather than simply purchase a standard component. Custom requirements can be discussed according to installation dimensions, load current, button style, contact structure, LED voltage, shell material and protection requirements.

How Can Buyers Select the Right Model?

Before placing an order, buyers can prepare a basic specification list:

• Required mounting diameter

• Voltage and current

• 2NO2NC or another contact configuration

• Momentary or latching operation

• LED requirement

• LED voltage and color

• Housing material

• IP protection requirement

• Terminal type

• Quantity and OEM requirements

Providing these details allows the manufacturer to recommend a suitable configuration and helps reduce compatibility problems during installation.

Final Considerations

A Dpdt Button Switch combines straightforward push-button operation with the ability to control two circuit paths, making it a practical component for industrial control and electrical equipment. Its value comes from the combination of circuit flexibility, compact panel integration, operating durability and optional visual indication.

For OEMs, distributors and industrial equipment manufacturers, selecting the right specification is essential for achieving reliable operation and efficient panel design. With its range of DPDT configurations and customization options, Yijia Industrial Electric Co., Ltd. can support different industrial control requirements.

Looking for a reliable Dpdt Button Switch for your equipment or control panel? Contact Yijia Industrial Electric Co., Ltd. to discuss your required specifications, customization needs and application requirements. Contact us for product information, samples and a suitable switching solution for your project.
