How Does a Double H Type Submersible UV Sterilizer Work?

1. Understanding Double H Type Submersible UV Sterilizers

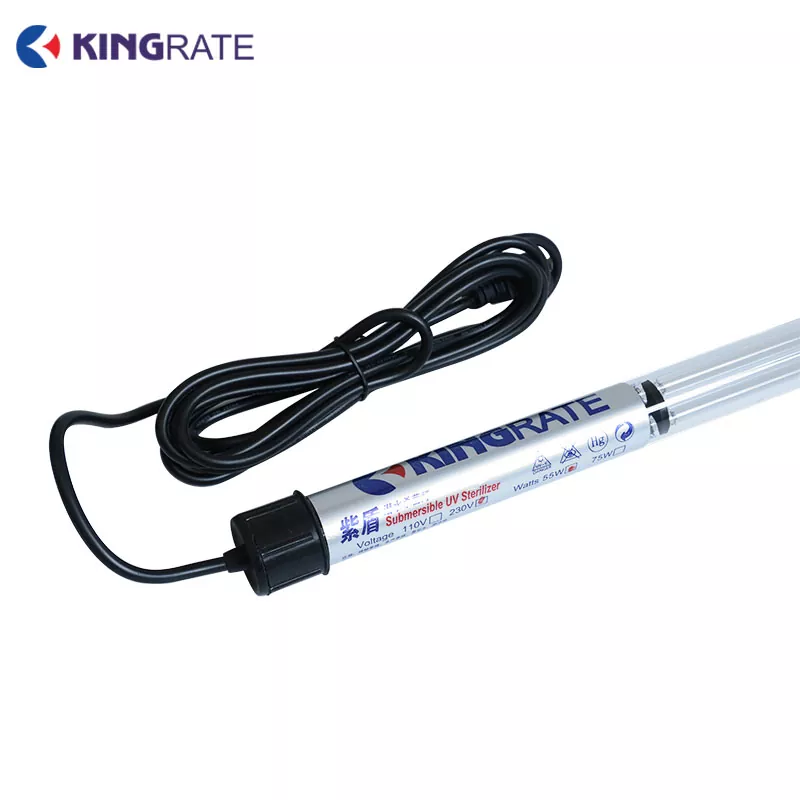

A Double H Type Submersible UV Sterilizer is an underwater ultraviolet treatment device designed to help reduce microbial contamination and support algae management in suitable water systems. The term "H Type" generally describes the lamp's physical configuration, while "Double H Type" can refer to a particular multi-section or double-H design. Buyers should confirm the exact construction, lamp arrangement, dimensions, and electrical specifications of the model they intend to purchase.

Unlike conventional inline UV systems that direct water through a closed treatment chamber, a submersible unit is designed to operate within a compatible underwater environment or designated treatment compartment. This can simplify integration into certain ponds, tanks, filtration systems, and recirculating installations.

The actual performance depends on the specific model and the conditions in which it operates. A lamp's wattage alone does not establish its disinfection capacity. Effective UV treatment also requires adequate radiation output, sufficient exposure, suitable water circulation, and appropriate control of suspended particles.

2. How Underwater UV-C Disinfection Works

UV-C radiation acts on microorganisms by damaging their genetic material, interfering with their ability to reproduce. When microorganisms receive a sufficient germicidal dose, their capacity to multiply can be reduced or eliminated, depending on the organism and treatment conditions.

Step 1: The UV lamp generates germicidal radiation

A suitable UV-C lamp emits ultraviolet radiation within its designed operating spectrum. Many conventional germicidal lamps operate around 254 nm, although the wavelength and output of a specific product must be verified from its technical documentation.

Step 2: Water passes through the effective treatment zone

Water movement brings microorganisms within reach of the UV radiation. In a submersible installation, the equipment's position, the shape of the tank or filter chamber, and the surrounding water flow affect how consistently the water receives treatment.

Step 3: Exposed microorganisms receive a UV dose

UV dose depends broadly on UV intensity and exposure time. If water moves too quickly through an effective treatment area, or if the radiation is weakened by turbidity, particles, or lamp aging, the delivered dose may be insufficient for the intended result.

Step 4: The treated water continues through the system

UV treatment does not normally provide a lasting residual disinfectant throughout the water. Microorganisms introduced after treatment may remain active, and organisms shielded from the radiation may survive. Filtration, circulation, source-water management, and regular cleaning therefore remain important.

For buyers, the key question is not simply whether a UV lamp can be submerged. It is whether the complete installation can provide an appropriate treatment dose under the actual operating conditions.

3. Key Benefits for Water Treatment

Helps control suspended algae and microbial growth

In appropriately designed systems, UV-C equipment can help control susceptible microorganisms and free-floating algae. This may be particularly useful in ornamental ponds, aquarium filtration compartments, and recirculating water systems where persistent green water is a concern. Results vary with algae species, water conditions, circulation, and the equipment's verified output.

Reduces dependence on routine chemical treatment

UV treatment can provide a physical disinfection step without continuously adding a chemical disinfectant to the water. This can be attractive for users seeking to reduce routine chemical dosing. It does not mean that every chemical treatment can be eliminated, especially where a process requires residual disinfection or control of contaminants that UV cannot address.

Supports compact equipment integration

A submersible design may fit into an existing filter compartment, tank, or suitable treatment area without requiring a separate large inline chamber. This can help simplify some installations, provided that the electrical supply, waterproof construction, service access, and operating environment are compatible with the selected model.

Can support routine water quality management

When combined with adequate filtration and circulation, UV treatment can form part of a repeatable water management program. Operators can monitor water clarity, lamp operating hours, cleaning intervals, and relevant water quality indicators to identify changes before they become larger operational problems.

Offers a practical option for continuous operation

Some installations benefit from extended operating periods, but the appropriate schedule depends on the manufacturer's instructions, system design, target organisms, and safety requirements. Continuous operation should never be assumed to be suitable for every lamp or installation without checking the product documentation.

4. Common Applications and Use Cases

The suitability of a Double H Type Submersible UV Sterilizer depends on the required treatment objective, water volume, circulation rate, and operating environment. Common application areas include the following.

Ornamental ponds and koi ponds

Pond operators often use UV equipment to help manage suspended algae that contribute to green water. A correctly sized system, supported by biological and mechanical filtration, can help maintain more stable pond conditions. UV equipment should be installed in a protected, manufacturer-approved location that prevents people and animals from direct exposure.

Aquariums and aquatic display systems

Aquarium systems may use UV treatment to reduce selected free-floating microorganisms. However, UV treatment should not replace proper tank maintenance, quarantine procedures, biological filtration, or veterinary guidance when aquatic animals are ill.

Aquaculture and fish-farming facilities

In aquaculture, water quality can affect animal health, production consistency, and operating costs. UV treatment may serve as one component of a recirculating aquaculture system, particularly when water passes through a controlled treatment compartment. Professional system design is important because organic loading, suspended solids, flow rate, and target pathogens can substantially affect results.

Water circulation and treatment tanks

Industrial or commercial water systems may use submersible UV devices where the equipment's specifications match the water chemistry, temperature, flow pattern, and installation requirements. Buyers should confirm compatibility before using any submersible lamp in process water or a specialized treatment environment.

5. How to Select the Right Model

Choosing a suitable UV sterilizer requires more than matching the product name or nominal lamp wattage to a tank. Buyers should evaluate the following factors before requesting a quotation.

Calculate the treatment requirement before purchasing

For a recirculating system, a basic turnover estimate can help establish a starting point:

Final sizing should account for the actual UV output, hydraulic arrangement, water transmittance, target microorganisms, and required treatment performance. Ask the supplier for the intended application range and supporting technical information rather than relying on a generalized tank-volume claim.

6. Installation and Operating Best Practices

Correct installation is essential for equipment performance and user safety. Always follow the model-specific instructions supplied by the manufacturer.

Prepare the water system first

Remove excessive debris and suspended solids through suitable filtration before UV treatment where the system design permits. Cleaner water generally allows more effective UV transmission and helps prevent deposits from accumulating on the lamp's protective surface.

Choose a suitable mounting location

Install the unit in the specified filter chamber, tank, or designated treatment zone. Ensure that water can circulate around the effective treatment area and that the equipment can be removed safely for servicing. Do not assume that placing a lamp anywhere in a large pond will provide uniform treatment throughout the entire volume.

Confirm waterproof and electrical compatibility

Check the permitted immersion conditions, power supply, cable routing, connector requirements, and environmental protection rating. Keep plugs, connectors, and control equipment within their specified installation conditions. Use appropriate electrical protection and qualified installation support where required.

Protect people and aquatic life from direct UV exposure

Germicidal UV-C can injure eyes and skin. Never look directly at an operating UV-C lamp or expose skin to its radiation. Follow the manufacturer's isolation and shutdown procedure before inspection or maintenance. Use only approved protective housings and arrangements, and do not operate a damaged unit.

Verify operation after installation

• Confirm that the lamp and any integrated ballast are compatible with the rated power supply.
• Check that the unit is installed within its specified immersion and temperature limits.
• Verify that water circulation and upstream filtration are functioning properly.
• Inspect accessible cables, seals, housings, and mounting points for visible damage.
• Record the installation date and initial operating hours for future maintenance.

7. Maintenance and Troubleshooting

Even a correctly selected UV sterilizer can deliver disappointing results when the lamp ages, the protective surface becomes dirty, or water circulation changes. Preventive maintenance helps identify these issues early.

Clean the protective surface when necessary

Mineral deposits, biofilm, and other buildup may reduce the amount of UV radiation reaching the water. Disconnect the power and follow the manufacturer's servicing instructions before cleaning. Use only approved cleaning materials, avoid scratching quartz or other protective components, and replace damaged parts as directed.

Track lamp operating hours

UV output can decline over time even when a lamp still appears to be illuminated. Establish replacement intervals from the manufacturer's rated useful life and the performance requirements of the application. Visual brightness is not a reliable measure of germicidal output.

Inspect seals, cables, and housing components

Submersible equipment requires particular attention to its waterproof integrity. Inspect accessible parts at the intervals recommended by the manufacturer. If a cable, housing, seal, or connector appears damaged, stop using the equipment and arrange an appropriate inspection or replacement.

Troubleshooting common problems

Do not open sealed electrical assemblies or attempt repairs on energized equipment. Where the cause is uncertain, provide the supplier with the model number, installation details, operating history, and a description of the observed problem.

8. Comparing UV Treatment with Other Water Treatment Methods

UV sterilization is most useful when its strengths and limitations are understood. In many applications, the best results come from combining complementary treatment processes rather than expecting a single device to solve every water quality problem.

For example, a pond system may combine mechanical filtration to remove debris, biological filtration to support the nitrogen cycle, and UV treatment to help control free-floating algae. The appropriate combination depends on the animals, water source, operating conditions, and target water quality.

9. A Practical Buyer Checklist

Before placing a bulk order or selecting an OEM supplier, purchasing teams can use the following checklist to reduce specification gaps and avoid unnecessary operating costs.

• Define the application: Identify whether the equipment is intended for a pond, aquarium, aquaculture system, tank, or another water treatment process.
• Provide operating parameters: Share water volume, flow rate, water temperature, turbidity, and relevant water chemistry.
• Confirm product construction: Request drawings, dimensions, lamp configuration, materials, and installation requirements for the exact Double H Type model.
• Verify technical performance: Ask for rated electrical power, UV-C output data, recommended operating conditions, and any available performance test documentation.
• Check electrical safety: Confirm voltage, frequency, waterproof specifications, applicable certifications, and installation requirements for the destination market.
• Review service arrangements: Clarify lamp replacement, spare parts, cleaning procedures, warranty terms, and technical support.
• Discuss commercial requirements: Confirm sample availability, minimum order quantity, lead time, packaging, shipping terms, and customization options.
• Request a suitable recommendation: Give the supplier your actual operating conditions rather than selecting a unit based only on advertised wattage.

A clear technical brief allows the supplier to assess the application more accurately and helps purchasing teams compare quotations on a consistent basis.

10. Why Consider Kingrate Lighting Technology Co, Ltd.?

For distributors, equipment manufacturers, and water treatment businesses, supplier capability is an important part of product selection. Kingrate Lighting Technology Co, Ltd. focuses on ultraviolet lighting and germicidal UV products, with a product portfolio that includes submersible UV lamps, H-type integrated UV lamps, germicidal lamps, UV sterilizers, and related components.

According to the company's published information, its operations include research and development, manufacturing, marketing, and maintenance of specialized lighting products. The company also describes quality control processes for raw materials and finished products, along with support for customized product specifications.

These capabilities may be relevant to buyers seeking UV products for pond equipment, aquarium systems, water treatment projects, or OEM applications. However, the suitability of a particular Double H Type Submersible UV Sterilizer should be established from the exact model's current technical documentation rather than inferred from the broader product range.

What to discuss with the supplier

• Available Double H Type and related submersible UV configurations.
• Technical drawings, product dimensions, rated power, and UV output specifications.
• Suitable operating environments, installation conditions, and maintenance requirements.
• OEM customization, branding, packaging, and bulk-order arrangements where available.
• Applicable product certifications, testing documentation, lead times, and warranty terms.

To learn more about the company, visit the Kingrate Lighting Technology Co, Ltd. company profile. When evaluating a product, request the latest model-specific specifications and verify that they meet your project's requirements.

11. Frequently Asked Questions

Conclusion: Build a More Reliable Water Treatment System

A Double H Type Submersible UV Sterilizer can be a useful component in water quality management when the equipment is correctly specified, installed, and maintained. Its effectiveness depends on the interaction between UV output, exposure time, circulation, water clarity, and the treatment objective. Understanding these factors helps buyers avoid undersized equipment, unrealistic performance expectations, and unnecessary maintenance costs.

For commercial buyers, the most practical next step is to compare verified technical specifications, confirm installation compatibility, and discuss the intended application with a qualified supplier. Combining UV treatment with suitable filtration and regular monitoring can help create a more consistent water management strategy.
