How Do You Select the Correct Vacuum Circuit Breaker for a Specific Application
2026-02-04

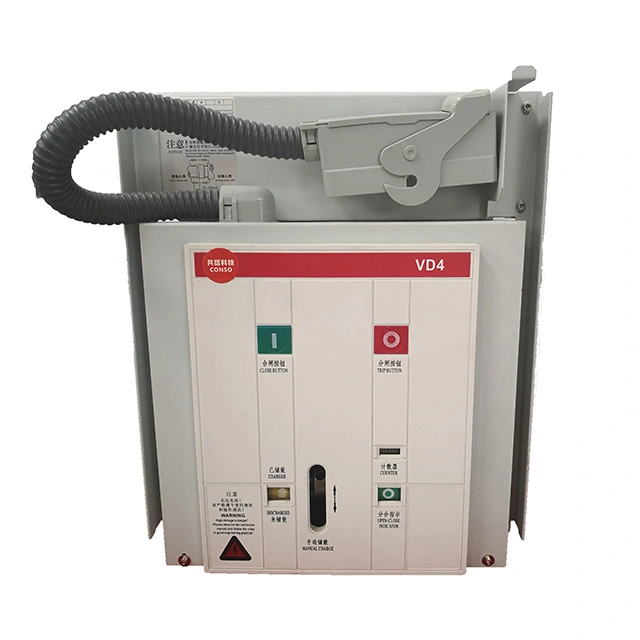

Selecting the right Vacuum Circuit Breaker VCB is a critical decision for ensuring the safety, reliability, and efficiency of your electrical distribution system. A mismatched breaker can lead to operational failures, safety hazards, and unnecessary costs. At XiFa, we understand that a precise selection process, grounded in technical parameters and application needs, is essential for optimal performance. This guide will walk you through the key factors to consider.
The selection process hinges on a detailed analysis of your system's requirements. The primary technical specifications form the cornerstone of your decision. Key parameters include:
-
Rated Voltage: Must be equal to or greater than the system's nominal voltage.
-
Rated Current: Must exceed the maximum continuous load current expected in the circuit.
-
Short-Circuit Breaking Capacity: This is the maximum fault current the Vacuum Circuit Breaker VCB can safely interrupt. It must be higher than the prospective short-circuit current at its installation point.
-
Application Environment: Consider ambient temperature, altitude, humidity, and whether the installation is indoor or outdoor.
To simplify the comparison of core interrupting capabilities, refer to the table below:
| Selection Parameter | Definition | Why It Matters |
|---|---|---|
| Breaking Capacity | The maximum fault current the VCB can interrupt. | Ensures the breaker can safely clear a short-circuit, protecting downstream equipment. |
| Making Capacity | The peak current the VCB can withstand and close onto during a fault. | Critical for withstanding electromagnetic forces during the closing operation. |
| Rated Operating Sequence | A standard sequence of operations (e.g., O-0.3s-CO-3min-CO). | Verifies the breaker's endurance and performance under repeated fault conditions. |
Vacuum Circuit Breaker VCB FAQ
What is the typical service life of a VCB and what affects it?
The service life of a Vacuum Circuit Breaker VCB is typically defined by its mechanical endurance (number of operations) and the condition of its vacuum interrupters. Factors like the frequency of operation, the magnitude of currents interrupted, and adherence to proper maintenance schedules significantly impact its longevity. XiFa VCBs are engineered for high mechanical endurance to deliver extended service life.
How often should a VCB be maintained?
Maintenance intervals depend on the operating environment and number of operations. A general rule is to perform a basic inspection annually and a comprehensive maintenance check every 3-5 years or after every 2,000 operations. Always follow the specific guidelines provided in the XiFa product manual for your model.
Can a VCB be used for capacitor bank switching?
Yes, Vacuum Circuit Breaker VCBs are well-suited for capacitor switching due to their fast dielectric recovery and minimal restriking. However, it is crucial to select a breaker specifically rated for capacitive current switching to prevent excessive inrush currents and overvoltages that could damage the equipment.
Choosing the correct Vacuum Circuit Breaker VCB requires balancing technical specifications with real-world operational demands. Partnering with a knowledgeable manufacturer like XiFa ensures access to expert guidance and reliable products designed for a wide array of applications. Our team is dedicated to helping you find the perfect protective solution for your unique electrical infrastructure needs.
Contact us today for a personalized consultation and let XiFa’s expertise secure your power system.
