How Do You Seal a Straight-Through Two-Hole Cable Extension Wire Junction Box Against Moisture and Dust

Outdoor electrical installations demand robust protection, and the Straight-Through Two-Hole Cable Extension Wire Junction Box is a critical component for extending circuits safely. However, even the most durable enclosure fails if its sealing strategy is compromised. Moisture intrusion leads to corrosion, short circuits, and fire hazards, while dust accumulation degrades insulation resistance. For professionals relying on YuWei junction boxes, mastering the sealing process ensures long-term reliability in harsh environments such as construction sites, agricultural facilities, and marine applications.

Understanding the Sealing Challenge

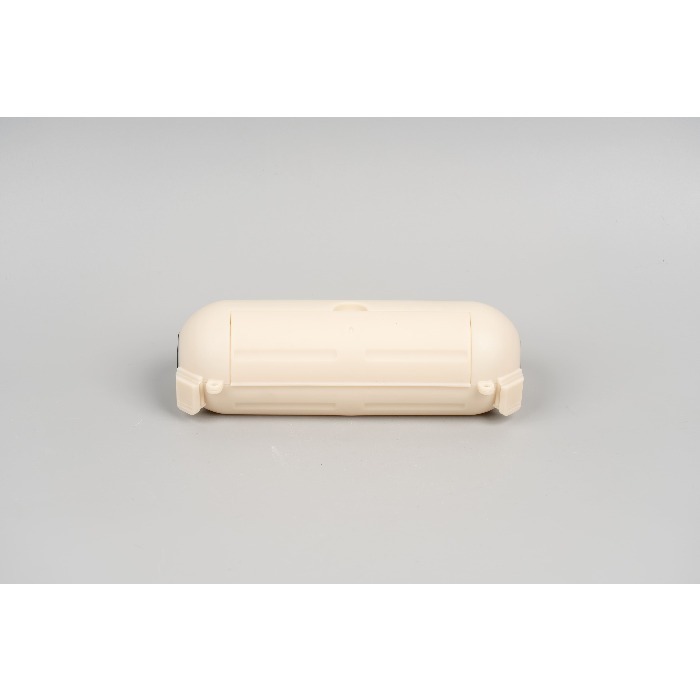

The Straight-Through Two-Hole Cable Extension Wire Junction Box features two opposing cable entries, designed for inline splicing or pass-through connections. Its straight-through geometry simplifies cable routing but creates two potential leakage paths—one at each cable gland, plus the main lid interface. Dust particles as small as 10 microns can compromise IP ratings, while water ingress under pressure (e.g., rain or hose spray) demands multi-layered defence.

Step-by-Step Sealing Procedure

Material Selection for Different Environments

Common Mistakes to Avoid

• Over-tightening glands, which extrudes the O-ring and creates micro-gaps.

• Using standard PVC tape instead of self-amalgamating tape—the latter fuses into a homogenous layer.

• Ignoring thermal expansion: YuWei boxes are designed with 3% internal clearance, but sealing compounds must remain flexible between -40°C and +105°C.

• Failing to clean cable surfaces with isopropyl alcohol before gland installation—residue reduces adhesion by up to 60%.

Professional Verification Methods

After sealing, perform a positive pressure test (0.3 bar for 2 minutes) while spraying soap solution around all entry points. Bubbles indicate leakage. For dust integrity, use a talc powder test—any visible powder inside after 10 minutes of vibration signals failure. YuWei offers a factory-tested range where each Straight-Through Two-Hole Cable Extension Wire Junction Box is certified to IP66/IP67 before shipment, but field re-sealing requires these validation steps.

FAQ – Straight-Through Two-Hole Cable Extension Wire Junction Box

Q1: Can I reuse a Straight-Through Two-Hole Cable Extension Wire Junction Box after opening it for maintenance?

A1: Yes, but you must replace all compressible sealing elements—the lid gasket, gland O-rings, and any internal potting that was disturbed. YuWei provides service kits with pre-measured sealants and fresh gaskets. Clean the lid flange and box rim with a non-abrasive pad to remove old sealant residues. Re-torque screws to the specified value and perform a low-pressure air test (0.15 bar) before re-energising the circuit. Never reuse compression-type cable glands more than three times, as the rubber bushings lose their elastic memory.

Q2: What is the difference between IP65 and IP68 sealing for this junction box, and how do I achieve each?

A2: IP65 protects against low-pressure water jets (e.g., rain or hose spray) and requires a basic gasket + O-ring setup with thread sealant. IP68 demands continuous submersion at depths up to 1.5 metres for 30 minutes—this requires epoxy potting of all internal voids, double O-rings on each gland, and a secondary over-moulded rubber boot over the entire lid. YuWei labels each box with its tested rating. To upgrade an IP65 box to IP68, you must replace the standard lid screws with stainless steel countersunk bolts and add a peripheral layer of butyl rubber tape before closing. Always consult the product datasheet for maximum submersion duration.

Q3: How do I seal the cable entry when my cable diameter varies slightly from the gland's specified range?

A3: Use a stepped-reducer insert or a split rubber grommet designed for variable diameters. YuWei offers a range of interchangeable bushes that accommodate 0.5 mm increments. If the variation exceeds 1 mm, install a heat-shrink sleeve over the cable sheath to build up the outer diameter evenly, then apply a flexible polyurethane sealant around the gland entry as a secondary barrier. Never force an oversized cable through an undersized gland—this creates oval deformation and permanent leakage paths. For temporary installations, use a self-fusing silicone wrap as an emergency measure, but replace it with a proper gland within 72 hours.

Performance Comparison – Sealing Methods

Final Professional Recommendation

For critical infrastructure, combine mechanical sealing (glands and gaskets) with chemical sealing (potting or thread-lockers) and physical barriers (tape or boots). The Straight-Through Two-Hole Cable Extension Wire Junction Box from YuWei already incorporates a recessed lid design that channels water away from the screw holes—a feature often overlooked by generic brands. Regular inspection every 6 months, re-torquing screws, and checking gland tightness will extend service life beyond 15 years in most temperate climates.
