How Do You Design a Reliable Rigid-Flex PCB Layout
2026-01-16
Designing a reliable Rigid-Flex PCB layout is a sophisticated engineering challenge that blends the disciplines of rigid and flexible circuit design. At Akeson, with decades of experience in advanced interconnect solutions, we understand that success hinges on a meticulous, forward-thinking approach from the initial concept. A poorly planned layout can lead to mechanical failure, signal integrity issues, and reduced product longevity. This guide outlines the core principles for creating robust and dependable Rigid-Flex Boards.

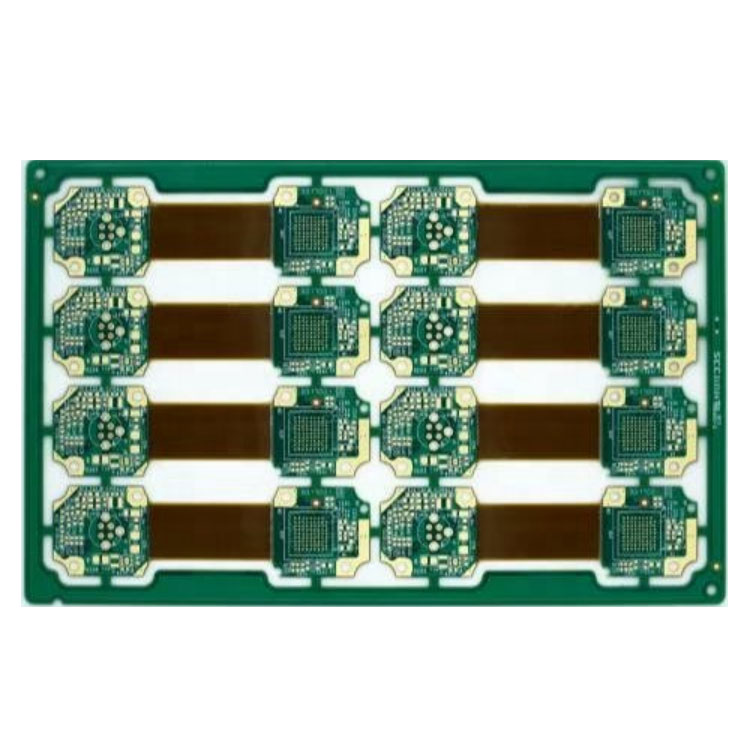

The foundation of a reliable design lies in understanding the mechanical and electrical boundaries. Key considerations include:
-
Bend Dynamics: Precisely defining the bend area, minimum bend radius, and whether the flex will be in static (installed once) or dynamic (repeatedly flexing) application.
-
Stack-Up Planning: Strategically arranging layers to ensure neutral bend axis and mechanical stability. A common practice is to use a symmetrical stack-up in the flex zones.
-
Transition Zone Management: The area where the flex meets the rigid section is critical. Traces should be fanned out smoothly and kept perpendicular to the bend line to avoid stress concentration.
Adhering to specific design rules is non-negotiable. The table below contrasts critical guidelines for flexible versus rigid sections of your board:
| Design Aspect | Flexible Section Guidelines | Rigid Section Guidelines |
|---|---|---|
| Trace Routing | Use curved corners; avoid 90° angles. Route traces perpendicular to the bend. | Standard routing practices apply. |
| Copper Features | Use hatched polygons instead of solid pours to improve flexibility. | Solid copper pours are standard for grounding and power planes. |
| Stiffeners | Added only where needed for component support or connector strain relief. | Integral part of the rigid section structure. |
| Via Placement | Keep vias out of dynamic bend areas. Use tear-relief pads. | Standard via placement rules apply. |
Rigid-Flex Boards FAQ Common Questions
What are the most common mistakes in Rigid-Flex PCB layout?
The most common mistakes include ignoring the minimum bend radius, which leads to copper fracture, placing components or vias directly in the dynamic flex area, and using incorrect materials for the intended flex cycle life. Another critical error is not collaborating early with your manufacturing partner, like Akeson, to validate the stack-up and material choices.
How do you ensure signal integrity in a Rigid-Flex design?
Ensuring signal integrity requires controlled impedance routing across both rigid and flex sections. This involves careful simulation and maintaining consistent dielectric spacing and trace width through the transition zones. For high-speed signals, avoid crossing reference plane gaps in the flex area and consider the use of shielding layers as specified by Akeson engineers.
Can we use standard FR-4 materials for the flexible parts?
No, standard FR-4 is brittle and will crack when flexed. The flexible sections must use specialized polyimide films, which offer excellent thermal stability, flexibility, and durability. Akeson utilizes high-grade materials to ensure the long-term reliability of the Rigid-Flex Boards we produce.
Mastering the design of a Rigid-Flex PCB requires specialized knowledge and a partnership with a fabricator who understands the intricacies from design through assembly. Akeson provides the expert guidance and manufacturing precision necessary to transform your complex concept into a reliable, high-performance reality. Contact us today to discuss your project and leverage our expertise for your next innovative product.
