How Do Thermal Silicone Pads Improve Heat Dissipation Efficiency?
2025-08-21
In the era of high-performance electronics, efficient heat management has become one of the most critical challenges for engineers and manufacturers. Devices such as CPUs, GPUs, LED drivers, EV batteries, and 5G communication equipment generate substantial amounts of heat during operation. If not properly dissipated, this heat can damage sensitive components, reduce operational efficiency, and shorten the overall lifespan of the device.
Their popularity has surged due to growing demand in industries such as:
-
Consumer electronics – smartphones, tablets, gaming consoles
-
Automotive – EV battery packs, ADAS systems, onboard chargers
-
Telecommunications – 5G base stations, networking equipment
-
Industrial control – automation systems, robotics, sensors
When chosen correctly, a thermal silicone pad ensures high reliability, stable performance, and long-term durability, making it an indispensable solution for modern electronics design.
How Thermal Silicone Pads Work and Their Key Advantages
Thermal silicone pads act as thermal interface materials (TIMs). In most electronic assemblies, the surface of heat-generating components and heat sinks are not perfectly smooth. These irregularities trap tiny air pockets, and since air is a poor heat conductor, it restricts efficient thermal transfer.
A thermal silicone pad addresses this problem by:
-
Filling microscopic air gaps between mating surfaces.
-
Establishing a continuous thermal conduction path.
-
Maintaining electrical insulation while optimizing heat dissipation.
Core Advantages
| Feature | Benefit |
|---|---|
| High Thermal Conductivity | Ensures rapid heat transfer, improving overall cooling efficiency. |
| Excellent Electrical Insulation | Prevents short circuits while maintaining device safety. |
| Soft and Flexible | Easily conforms to uneven surfaces, maximizing contact area. |
| Wide Operating Temperature Range | Performs reliably under extreme heat or cold conditions. |
| Reusability | Many pads can be repositioned without losing performance. |
| Low Outgassing | Protects sensitive optical and electronic components from contamination. |

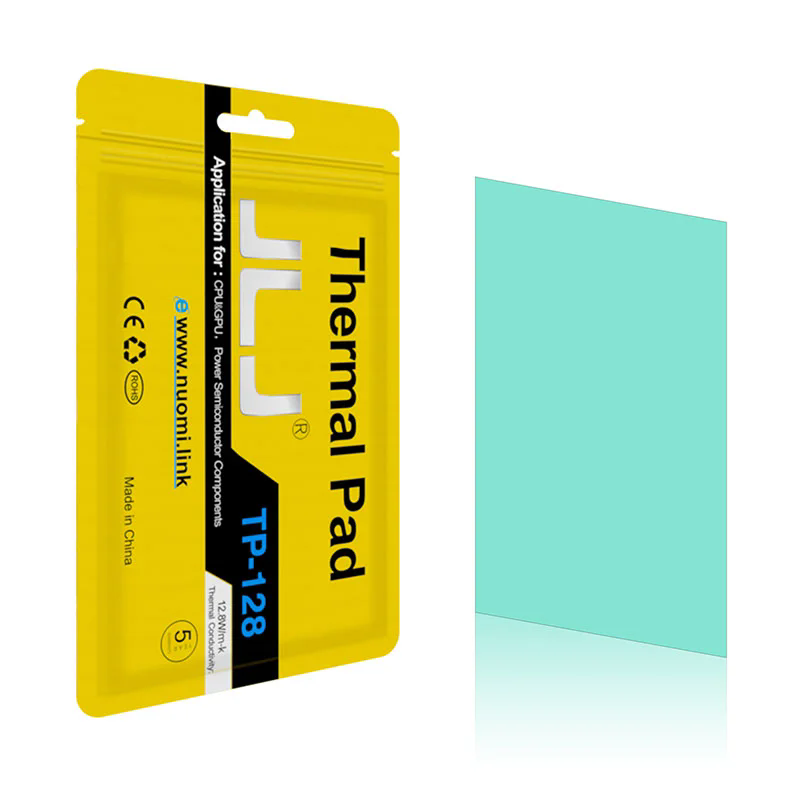

Technical Parameters of NUOMI Thermal Silicone Pads
| Parameter | Value Range | Description |
|---|---|---|
| Thermal Conductivity | 1.5 – 8.0 W/m·K | Higher values enable faster heat transfer |
| Hardness | 20 – 60 Shore 00 | Softer pads fit uneven gaps more effectively |
| Operating Temp. | -40°C to +200°C | Ideal for extreme industrial environments |
| Thickness Options | 0.3 mm – 10 mm | Supports diverse application scenarios |
| Dielectric Strength | ≥10 kV/mm | Ensures safe insulation between components |
| Flame Rating | UL94 V-0 | Certified flame-retardant material |
| Compression Set | <5% | Maintains integrity after repeated pressure |
With this combination of thermal conductivity, mechanical flexibility, and safety certification, NUOMI’s thermal silicone pads are engineered to meet global industrial standards.
Applications and Selection Guide
1. Key Application Fields
Thermal silicone pads are widely used across multiple industries where efficient heat dissipation is a must:
-
Consumer Electronics: Smartphones, laptops, VR headsets, gaming consoles
-
Automotive Electronics: Battery packs, on-board chargers, ADAS modules
-
Telecommunication Equipment: 5G base stations, routers, switches
-
Industrial Automation: High-power motor drives, sensors, robotics
-
LED Lighting Systems: High-power LED lamps and streetlights
In each of these scenarios, choosing the right pad is essential for optimal performance and durability.
How to Choose the Right Thermal Silicone Pad
Selecting the right pad depends on several critical parameters:
-
Thermal Conductivity (W/m·K)
For high-power applications such as EV battery packs or CPU cooling, a pad with at least 6.0 W/m·K is recommended. -
Thickness and Compression
Uneven gaps require thicker, softer pads, whereas tightly fitted assemblies benefit from thinner, firmer pads. -
Electrical Insulation
Always ensure the dielectric strength matches your device’s safety requirements. -
Operating Environment
Consider temperature extremes, exposure to moisture, and vibration levels. -
Certifications and Standards
Look for UL94 V-0 flame retardancy and RoHS compliance for environmentally safe materials.
Thermal Silicone Pad FAQs
Q1: What is the difference between a thermal silicone pad and thermal grease?
A1: Thermal silicone pads are pre-formed solid sheets that are easy to install and reusable, while thermal grease is a paste applied manually. Pads provide cleaner installation, better electrical insulation, and consistent thickness, whereas grease typically offers slightly better heat transfer but requires more maintenance.
Q2: How long do thermal silicone pads last?
A2: High-quality pads like those from NUOMI can last 5 to 10 years under normal operating conditions. Their performance remains stable even after multiple heating and cooling cycles due to their excellent compression set resistance.
Why Choose NUOMI Thermal Silicone Pads
When selecting a thermal management solution, consistency, quality, and support are crucial. NUOMI has over a decade of expertise in designing and manufacturing high-performance thermal interface materials, making it a trusted choice for global OEMs and electronic design engineers.
Why NUOMI Stands Out
-
Premium Material Quality: Certified high-conductivity silicone compounds
-
Customizable Options: Tailored thickness, shapes, and conductivity levels
-
Global Standards Compliance: UL94 V-0, RoHS, and REACH certifications
-
Technical Support: Professional engineers assist with product selection and design integration
-
Reliable Supply Chain: Consistent quality and timely delivery for high-volume production
By integrating NUOMI Thermal Silicone Pads into your design, you ensure optimal heat management, enhanced product lifespan, and reduced maintenance costs.
Contact Us
Efficient heat dissipation is critical for maintaining the reliability and performance of modern electronic devices. If you’re looking for a high-quality, customizable, and certified thermal interface solution, NUOMI is here to help.
Contact us today to discuss your project requirements and get expert recommendations tailored to your application.
