How Do Panelboard Lugs Enhance Electrical Safety and Efficiency?

Panelboard lugs are the mechanical connectors inside electrical panelboards that securely terminate and connect incoming or outgoing conductors. They serve as a junction point, transferring the current into the busbars or from the busbars into branch circuits. In effect, they act as a robust electrical interface between power cables and the internal distribution system of the panelboard.

This article focuses on the technical features, advantages, design strategies, and future trends for panelboard lugs. In particular, it explores the reasons for their use, the best practices for specifying and installing them, and how they will evolve in smart-grid and modular electrical infrastructure environments.

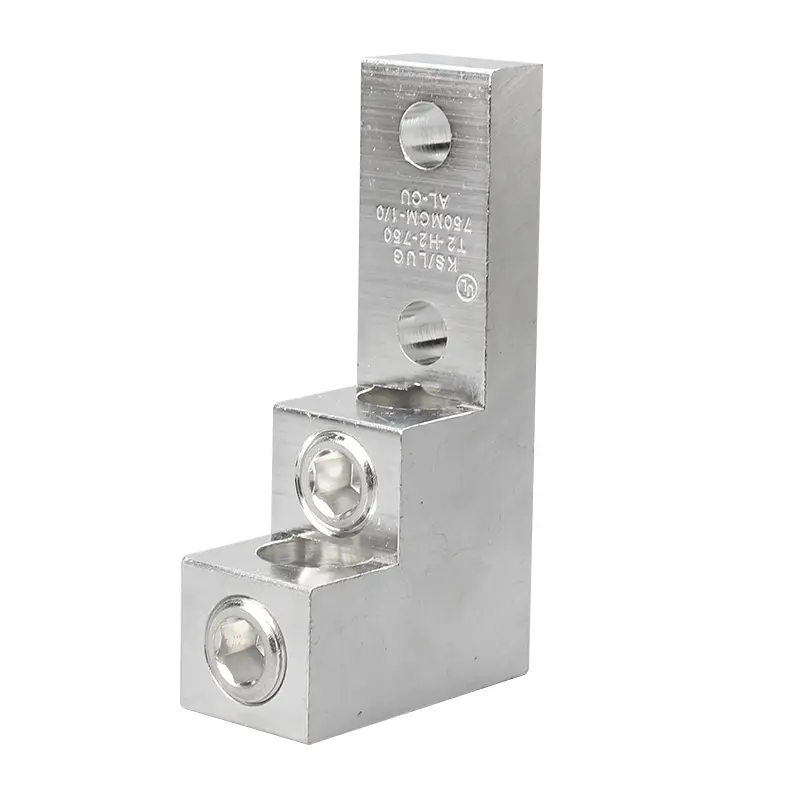

To illustrate typical specifications of a modern dual-rated panelboard lug:

In sum, panelboard lugs are vital components connecting external conductors to panelbus systems. Their performance and reliability directly affect the safety, conductivity losses, and longevity of the electrical distribution system.

Why Use High-Performance Panelboard Lugs?

Why Are They Needed?

• Secure Electrical Connection: Lugs ensure that conductors are firmly clamped, maintaining low resistance and preventing hot spots or loosening over time.

• Current Continuity with Low Loss: Good lug design minimizes contact resistance and thus reduces I²R losses, improving efficiency.

• Code Compliance and Safety: Properly rated lugs (voltage, current, temperature, fault duty) ensure regulatory compliance and reliable operation under fault conditions.

• Dual-Rated Capability: Many modern lugs are dual rated (AL/CU), which offers flexibility in conductor material without needing separate lug types.

• Ease of Installation and Maintenance: Proper mechanical design (clear torque specs, accessible bolt positions) makes installation safer, faster, and less error-prone.

• Scalable and Modular Systems: In modular or expandable electrical systems, lugs facilitate modular additions or replacements without full rewiring.

What Advantages Can Be Highlighted?

• Lower Contact Resistance & Heat Generation: Quality plating and precise machining reduce resistance and thermal buildup.

• Corrosion Resistance: Tin plating or other surface coatings protect the lug from oxidation and degradation over time.

• Mechanical Durability: Strong structural materials (e.g. high-strength aluminum alloy) ensure mechanical integrity under vibration or thermal cycling.

• Versatility: The dual-rated feature (AL/CU) allows the same lug to be used with either copper or aluminum conductors, reducing inventory complexity.

• High Fault Current Withstand Capability: Designed lugs can survive extreme short-circuit events without failure.

• Compact Footprint: Optimized lug geometry supports tight panel layouts and better space usage.

Why Now — Industry Trends Driving Innovation?

• Electrification & Higher Power Demand: Growing demands in industrial, commercial, and data center applications push higher currents and more compact distribution systems.

• Smart Grid Integration: Integration with sensor networks and real-time monitoring will drive lugs that can incorporate current sensing or diagnostics.

• Modular / Prefabricated Systems: Prefab power modules require lugs with plug-and-play ease and precise tolerances.

• Materials Innovation: New coatings, composites, or conductive materials may provide even lower resistance or enhanced thermal performance.

• Higher Safety & Standards: As regulators push for stricter safety, the margin on lug ratings, fault withstand, and thermal cycling becomes more rigorous.

• Global Standardization & Interoperability: Lugs that match UL, IEC, or other global systems will be more in demand for exportable panels.

How to Choose, Design, and Install Panelboard Lugs

How to Specify the Right Lug?

Determine Conductor Size & Material

• Identify the ampacity and conductor gauge. A lug must accommodate that wire range safely.

• Use dual-rated lugs (AL/CU) if both copper and aluminum may be encountered. Many commercial models, e.g. AL9CU approved, support this.

• Ensure the lug is approved for the full current and thermal rating of your circuit.

Verify Voltage, Insulation, and Short-Circuit Ratings

• Ensure the lug’s voltage rating meets or exceeds system voltage (commonly 600 V in commercial panels).

• Confirm the lug is listed under relevant UL or IEC standards (e.g. UL 486A/B).

• Check short-circuit withstand capability—must survive the maximum fault current.

Bolt Size, Hole Spacing & Physical Fit

• Ensure compatibility of bolt size (e.g. 3/8″, 5/16″) with bus studs or mounting hardware.

• Check hole spacing to match your panelbus layout (e.g. 1 ⅜″ spacing, etc.)

• Confirm physical envelope: width, thickness, and clearance for adjacent busbars or cables.

Thermal & Mechanical Durability

• Confirm operating temperature range (e.g. rated 90 °C).

• Evaluate mechanical strength, vibration resistance, and fatigue under thermal cycling.

Torque and Installation Guidance

• Use manufacturer’s recommended torque values to ensure proper clamping pressure.

• Include labeling and clear installation instructions.

How to Install Them Properly?

1. Clean Conductor Ends: Remove oxidation or insulation to ensure full contact.

2. Insert Conductor Fully: Strip just the correct amount and insert so the conductor touches the back of the lug.

3. Apply Correct Torque: Use a calibrated torque wrench to apply the specified torque—this ensures proper pressure without damaging the lug or conductor.

4. Inspect for Defects: After tightening, verify there is no visible gap, deformation, or insulation encroachment.

5. Use Locking Compounds / Varnish (if required): In high-vibration or harsh environments, a compatible locking paste can preserve clamp integrity.

6. Periodic Inspection / Re-torque: In service, thermal cycling may require periodic check and re-torque if permitted by code.

7. Avoid Double-Tapping: Never insert multiple conductors in one lug unless explicitly allowed—this can lead to poor contact and overheating.

How to Integrate Monitoring or Sensor Capabilities?

To prepare for the future of “smart” electrical panels, lugs can evolve to include:

• Built-in Current Sense Resistors or Shunts: Capture real-time current data for monitoring and protection.

• Temperature Sensors / Thermal Monitoring: Detect rising temperature in the lug junction proactively.

• Communications Interfaces: Embed low-power communication (wired or wireless) to transmit lug health metrics.

• Modular Plug-in Units: Designs where sensor modules can snap into standard lug bodies for retrofit.

• Digital Twins and Predictive Maintenance Systems: Lugs feed data into predictive models to forecast failures or maintenance needs.

How to Approach Field Retrofit or Upgrades?

• Confirm that the panelboard interior can accommodate upgraded lug forms.

• Ensure clearances and voltages remain compliant when swapping lugs.

• Use same bolt holes if possible to minimize rework.

• Retain labels, torque specifications, and alignment of conductor entry directions.

• Test upgraded lugs under full load and thermal cycling to validate performance.

Common Questions About Panelboard Lugs (FAQ)

Q: Can a panelboard lug support both copper and aluminum conductors?
A: Yes, many modern lugs are dual-rated (AL9CU), meaning they are listed for both copper and aluminum conductors, eliminating the need for separate lug types.

Q: What is the correct torque value for tightening panelboard lugs?
A: The torque will be specified by the manufacturer and depends on bolt size and conductor size, but typical torque ranges often fall between 45–300 lb-in for various sizes (for example, some lug systems use 45–50 lb-in for #6 to 2/0 AL, or 275 lb-in for larger sizes).

Q: Is it safe to put two wires in one lug (double-tap)?
A: Unless explicitly permitted by the lug manufacturer, double-tapping is not recommended. It often leads to uneven clamping, elevated resistance, loosening, overheating, and potential failure.

Q: How often should lug torque be checked once in service?
A: Under most installation codes, periodic inspection may require checking connections every few years, especially in high thermal cycling or vibration environments. Always follow applicable electrical codes and manufacturer guidelines.

In modern electrical distribution systems, panelboard lugs play a critical role in ensuring safe, efficient, and durable connections between conductors and panel bus systems. By focusing on material quality, dual-rated capability, mechanical precision, and evolving designs that support sensor integration, the next generation of panelboard lugs can meet the demands of electrification, smarter grids, and modular infrastructure.

Kangshuai offers a range of advanced panelboard lugs engineered for high performance, durability, and future-ready capability. For more information or custom solutions, contact us today and let our team assist in selecting the ideal lug for your project.
