How Can Wago Connectors Improve Electrical Installations?
2026-01-15
Summary: Wago connectors are innovative tools designed to simplify electrical wiring by offering quick, secure, and reliable connections. This guide explores their advantages, installation methods, technical specifications, and practical applications in residential, commercial, and industrial setups. Additionally, it addresses common questions and considerations for selecting the right Wago connector for specific projects.
Table of Contents
- Introduction to Wago Connectors
- Key Benefits of Using Wago Connectors
- Types of Wago Connectors
- Step-by-Step Installation Guide
- Technical Specifications
- Frequently Asked Questions
- Conclusion & Contact
Introduction to Wago Connectors
Wago connectors are advanced electrical connectors that allow for quick, tool-free connections between wires. Designed for both solid and stranded conductors, these connectors eliminate traditional screw terminals and reduce wiring errors. Their compact design and secure connection mechanism make them ideal for modern electrical systems, including residential, commercial, and industrial applications.
Developed with safety and efficiency in mind, Wago connectors have become a preferred choice for electricians and engineers who aim to enhance wiring productivity while maintaining high safety standards.
Key Benefits of Using Wago Connectors
- Time Efficiency: Quick push-in or lever operation reduces installation time significantly compared to traditional screw terminals.
- Safety: Reduced risk of loose connections and arcing, ensuring compliance with safety standards.
- Reliability: High-quality materials prevent corrosion and maintain a stable connection over time.
- Flexibility: Compatible with solid, stranded, and fine-stranded wires of various sizes.
- Compact Design: Space-saving connectors are ideal for tight electrical panels.
Types of Wago Connectors
Wago connectors come in multiple variations to suit different electrical needs. The main types include:
| Connector Type | Wire Range | Application | Operation |
|---|---|---|---|
| Wago 221 Series | 0.14 – 4 mm² | Residential wiring, junction boxes | Lever-operated push-in |
| Wago 222 Series | 0.08 – 2.5 mm² | Commercial and light industrial | Push-in without tools |
| Wago 243 Series | 0.75 – 2.5 mm² | Industrial applications | Spring clamp mechanism |

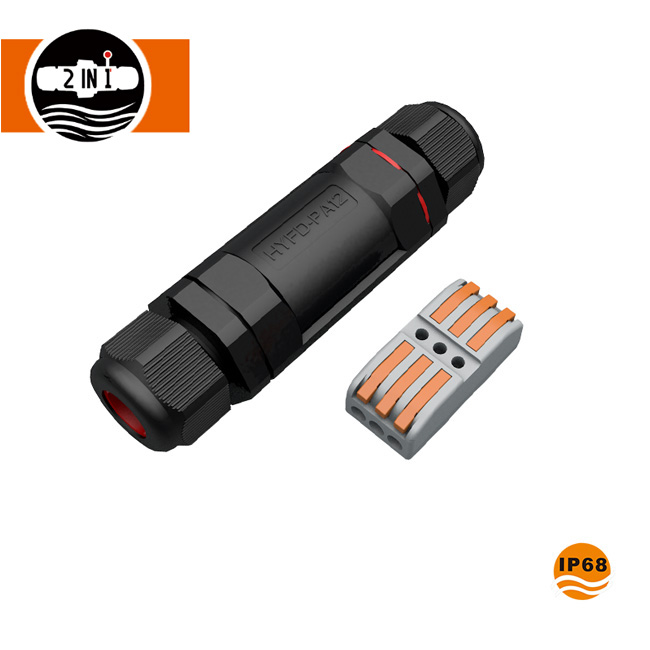

| Waterproof Wago Connector | 0.14 – 2.5 mm² | Outdoor and wet environments | Lever and seal for waterproofing |
Step-by-Step Installation Guide
Installing a Wago connector is straightforward, but following proper steps ensures maximum safety and reliability:
- Prepare the Wire: Strip the insulation of each wire to the recommended length (usually 10-12 mm).
- Open the Connector Lever: For lever-type connectors, lift the lever to allow wire insertion.
- Insert the Wire: Push the wire fully into the slot until it touches the stop inside.
- Secure the Connection: Close the lever to lock the wire in place.
- Check the Connection: Gently pull the wire to ensure it is secure. For waterproof connectors, ensure seals are properly aligned.
- Test the Circuit: Confirm electrical continuity and proper operation before closing panels or enclosures.
Technical Specifications
Wago connectors are engineered to meet international electrical standards. Key specifications include:
- Voltage Rating: Up to 450V depending on the series
- Current Rating: 24A maximum for most models
- Temperature Range: -40°C to +105°C
- Material: Flame-retardant polyamide with copper alloy contacts
- Compliance: IEC 60998, UL Listed, CE marked
Frequently Asked Questions
- Q1: Can Wago connectors be reused?
- Yes, lever-operated Wago connectors can be opened and reused multiple times without losing performance.
- Q2: Are Wago connectors suitable for outdoor use?
- Waterproof models are specifically designed for outdoor or wet environments, providing secure and safe connections.
- Q3: What types of wires are compatible with Wago connectors?
- They support solid, stranded, and fine-stranded wires across different sizes depending on the connector series.
- Q4: How do Wago connectors prevent loose connections?
- The spring clamp or lever mechanism secures the wire firmly, minimizing the risk of arcing or loose contacts.
Conclusion & Contact
Wago connectors simplify electrical installations, enhance safety, and improve workflow efficiency. Choosing the right type for your project ensures reliable, long-lasting connections. For high-quality Wago connectors, including waterproof and industrial models, ShenZhen 2 IN 1 Technology Co., Ltd. offers a wide range of solutions.
To learn more about available Wago connectors or to place an order, contact us today and get expert assistance for your electrical projects.
