Article Summary
Ultrafast laser modules are essential light sources for advanced photonics, precision measurement, nonlinear optics, optical sensing, and scientific research. By generating short optical pulses in the nanosecond, picosecond, or femtosecond range, these modules help engineers investigate rapid physical processes, develop high-performance optical systems, and achieve reliable experimental results. However, selecting the right laser involves more than comparing pulse duration or output power. Wavelength, repetition rate, pulse energy, polarization, fiber compatibility, stability, and integration requirements all influence system performance. This guide explains how ultrafast laser modules work, which specifications matter most, how to evaluate applications, and how to avoid common purchasing and integration problems.
1. Understanding Ultrafast Laser Modules
An ultrafast laser module is an optical source designed to generate laser pulses with very short durations. Depending on the technology and intended application, its output may be specified in nanoseconds (ns), picoseconds (ps), or femtoseconds (fs). One nanosecond equals one billionth of a second, one picosecond equals one trillionth of a second, and one femtosecond equals one quadrillionth of a second.
These brief pulses allow researchers and system developers to study fast optical phenomena, excite nonlinear interactions, perform precision measurements, and supply specialized seed sources for other laser systems. Fiber-based modules are particularly useful where compact packaging, optical fiber delivery, and straightforward integration are important.
Unlike a continuous-wave laser, which emits light continuously during operation, a pulsed laser concentrates its output into discrete bursts of energy. This changes the way the light interacts with a sample or optical system. The resulting performance depends on pulse duration, energy, repetition rate, wavelength, and the properties of the target.
2. How Ultrafast Laser Modules Work
Most ultrafast laser systems combine a gain medium, a mechanism for generating short pulses, optical components that control the output, and electronic circuits for operation and stabilization. Fiber-based designs use optical fiber as the gain medium or as part of the pulse-generation architecture.
Pulse generation and mode locking
Mode locking is a widely used technique for generating ultrashort pulses. It establishes a stable phase relationship among longitudinal modes within a laser cavity, allowing their optical fields to combine into a sequence of short pulses. Depending on the design, mode locking may be achieved through passive or active techniques.
The resulting pulse train is characterized by its pulse duration and repetition rate. Specialized optical and electronic designs help maintain the desired output under normal operating conditions. Dispersion management may also be necessary because different spectral components can travel at different speeds through optical materials and fiber.
Optical output and control
After pulse generation, the optical output is delivered through a fiber connector or a free-space optical interface, depending on the module architecture. Supporting electronics may regulate temperature, manage power, synchronize pulses, and communicate with an external controller.

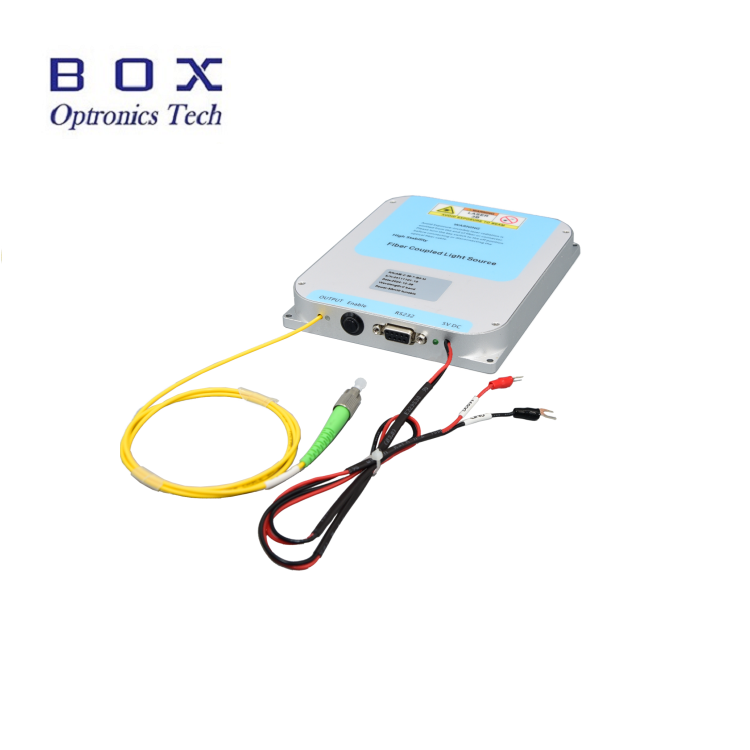

For example, Box Optronics ultrafast laser modules cover nanosecond, picosecond, and femtosecond pulse options. Product configurations can include different wavelengths, output powers, repetition rates, and fiber types, allowing engineers to identify a suitable starting point for their optical systems.
Actual performance depends on the selected model and operating conditions. Engineers should therefore verify the complete product datasheet rather than assume that every feature is available in every module.
3. Nanosecond, Picosecond, and Femtosecond Pulses
Pulse duration is one of the first specifications to evaluate because it determines the timescale over which optical energy is delivered. The three major pulse-duration categories serve overlapping but different purposes.
| Pulse Type | Typical Duration Range | Potential Advantages | Representative Applications |
|---|---|---|---|
| Nanosecond | Approximately 1–1000 ns | Useful pulse energy and practical timing control in many designs | Optical sensing, time-domain measurements, pulsed seed sources |
| Picosecond | Approximately 1–1000 ps | Shorter excitation windows and high peak power at suitable pulse energies | Nonlinear optics, spectroscopy, precision measurement |
| Femtosecond | Approximately 1–1000 fs | Ultrashort excitation and access to extremely fast physical processes | Ultrafast spectroscopy, multiphoton imaging, optical frequency comb research |
Note: These are broad time ranges used to explain the categories, not guaranteed specifications for any particular product. Available pulse durations depend on the laser architecture.
When should you choose a femtosecond source?
Femtosecond pulses are valuable when the experiment requires temporal resolution on ultrashort timescales or when nonlinear optical interactions benefit from concentrated peak power. They can support pump-probe experiments, multiphoton excitation, and investigations of ultrafast material or optical behavior.
When are picosecond or nanosecond sources appropriate?
Picosecond modules may provide a practical balance between pulse duration, energy, and system complexity. Nanosecond modules can be suitable for pulsed sensing, timing applications, and systems that do not require femtosecond temporal resolution. The correct choice should follow the application requirements rather than the assumption that shorter is always better.
4. Key Specifications That Determine Performance
A laser datasheet contains several interconnected parameters. Reviewing them together helps prevent compatibility issues and unnecessary costs.
Wavelength
The operating wavelength affects optical absorption, fiber transmission, detector response, and compatibility with filters, lenses, amplifiers, and other components. For example, telecommunications-related photonics frequently uses wavelengths around 1550 nm, while other experiments may require 1064 nm, 780 nm, or a different spectral region.
Confirm whether the application requires a fixed wavelength, a tunable source, or a particular polarization-maintaining fiber configuration.
Pulse duration and pulse energy
Pulse duration describes how long an individual pulse lasts, while pulse energy measures the optical energy contained in that pulse. Both affect how the source interacts with a sample and whether the laser can satisfy the experiment's energy requirements.
For an idealized pulse train, pulse energy can be estimated from average optical power divided by repetition rate:
For example, a source delivering 10 mW at 10 MHz has an average pulse energy of approximately 1 nJ, assuming the stated power and repetition rate describe the same output condition.
Peak power can be estimated by dividing pulse energy by the effective pulse duration, but the precise relationship depends on pulse shape and the definition used. These estimates are useful for initial screening; measured specifications should guide final design decisions.
Repetition rate and average power
Repetition rate indicates how many pulses are emitted per second. A higher repetition rate may improve measurement throughput or signal accumulation, but it can also reduce pulse energy when average power is constrained. Evaluate both values at the intended operating point.
Polarization and fiber type
Polarization-sensitive experiments may require polarization-maintaining (PM) fiber, while other applications can use single-mode (SM) fiber. Connector type, optical return loss, fiber handling, and the downstream equipment's input requirements should also be checked.
Stability and noise
Power stability, timing stability, spectral consistency, and pulse-to-pulse fluctuations can affect experimental repeatability. A source that meets its nominal power rating may still be unsuitable if its output fluctuates beyond the system's tolerance.
Request the relevant stability measurements, test conditions, warm-up requirements, and environmental limits before finalizing a design.
5. Major Applications Across Photonics
Optical frequency combs
Ultrashort pulse trains can provide the foundation for optical frequency comb systems, where a series of regularly spaced optical frequencies supports precision frequency measurement, spectroscopy, and metrology. The required wavelength, repetition-rate stability, and spectral characteristics depend on the experimental architecture.
Nonlinear optics and supercontinuum generation
Intense optical pulses can drive nonlinear interactions in suitable fibers, crystals, and other optical media. Under appropriate conditions, these interactions can broaden the optical spectrum or generate new frequencies. Pulse energy, duration, dispersion, and coupling efficiency all influence the outcome.
Terahertz research
Ultrafast laser pulses can be used in terahertz generation and detection systems. The pump wavelength, pulse duration, synchronization requirements, and energy at the interaction point must be matched to the selected conversion method and detector.
Optical fiber sensing
Pulsed laser sources are used in various fiber sensing architectures, including systems that analyze optical signals returning from distributed sensing fibers. Depending on the measurement technique, pulse timing, wavelength, power stability, and signal-to-noise performance can influence sensing range and resolution.
Scientific research and multiphoton imaging
Femtosecond sources support studies of fast molecular, material, and optical phenomena. They can also serve as excitation sources in multiphoton imaging, where ultrashort pulses enable nonlinear excitation under suitable experimental conditions. The appropriate source depends on the sample, imaging configuration, and required optical power.
6. How to Choose the Right Ultrafast Laser Module
Choosing an appropriate module requires a structured review of performance, integration, and long-term operating requirements.
Step 1: Define the intended application
Describe the experiment or equipment in measurable terms. Identify whether the primary goal is temporal resolution, nonlinear conversion, optical sensing, excitation, or precision measurement. Record the operating environment and expected duty cycle.
Step 2: Establish the optical requirements
- Wavelength: Specify the target wavelength and acceptable tolerance.
- Pulse duration: Identify the required timescale and acceptable range.
- Average power: Determine the optical power required at the relevant output point.
- Pulse energy: Calculate the approximate energy required per pulse.
- Repetition rate: Define the timing and measurement-throughput requirements.
- Polarization: Confirm whether PM fiber or a particular polarization state is necessary.
Step 3: Check mechanical and electrical compatibility
Confirm the module dimensions, mounting arrangement, power supply, communication interface, cooling needs, and environmental specifications. A compact optical source can simplify installation, but only if it fits the available enclosure and meets the system's thermal and electrical requirements.
Step 4: Evaluate integration and control
Determine whether the module needs external triggering, synchronization, remote commands, or monitoring. Check the available control interface and confirm that its communication protocol is compatible with the host system. If several optical components must operate together, assess synchronization and timing requirements early in the design process.
Step 5: Compare complete specifications
Compare candidate modules using a common set of requirements instead of relying on a single advertised feature. The following checklist can help organize an initial technical review.
| Evaluation Item | Questions to Ask | Why It Matters |
|---|---|---|
| Optical output | Does the wavelength, power, and pulse duration meet the target? | Determines application suitability |
| Timing | Is the repetition rate stable and appropriate? | Affects synchronization and throughput |
| Fiber interface | Are fiber type and connector compatible? | Reduces coupling loss and integration problems |
| Control system | Are required communication and trigger functions available? | Supports automated operation |
| Operating conditions | Are temperature, power, and mounting requirements manageable? | Supports stable operation |
| Customization | Can nonstandard parameters be supported? | Helps meet specialized project needs |
Step 6: Confirm requirements with the supplier
Before purchasing, provide the supplier with your target specifications and request confirmation of the proposed configuration. Ask for a current datasheet, applicable test conditions, interface details, and any relevant integration documentation. If the project requires nonstandard performance, confirm feasibility before committing to the design.
7. Integration, Reliability, and Maintenance
Even a technically suitable laser module can produce disappointing results if it is installed or operated incorrectly. A clear integration plan helps protect optical performance and reduces avoidable downtime.
Control the operating environment
Follow the manufacturer's specified temperature, humidity, ventilation, and power-supply requirements. Excessive temperature changes can affect output stability, while unsuitable electrical conditions may interfere with reliable operation. Do not assume that every compact module requires the same cooling arrangement.
Protect optical connections
Contamination on fiber connectors can increase insertion loss and, in some circumstances, damage optical surfaces. Inspect and clean connectors using approved procedures before connection. Respect the minimum bend radius of the fiber, avoid excessive pulling force, and use appropriate strain relief.
Verify performance after installation
Establish a baseline measurement for output power, pulse timing, and other critical parameters. Compare subsequent measurements with the baseline and the supplier's specified operating limits. Where possible, use calibrated instruments and document the conditions under which measurements were taken.
Plan service and support
Ask about warranty coverage, technical support, expected service requirements, and the availability of replacement units. For equipment used in continuous operation or critical research, understand the likely consequences of downtime and plan suitable contingencies.
8. Common Selection Mistakes and Their Solutions
Mistake 1: Choosing the shortest pulse without a defined requirement
A shorter pulse may increase system complexity or cost without improving the intended measurement. Define the required temporal resolution first, then choose a pulse duration that meets the actual application needs.
Mistake 2: Comparing average power alone
Two modules with the same average power can have different pulse energies because their repetition rates differ. Compare average power, repetition rate, and pulse energy together, using specifications that refer to compatible operating conditions.
Mistake 3: Overlooking fiber and connector compatibility
Incompatible fiber types, connector interfaces, or polarization requirements can create unnecessary optical loss and integration delays. Confirm these details before ordering and include any necessary adapters or interface components in the system design.
Mistake 4: Assuming published performance applies to every configuration
Product families may contain multiple wavelengths, output powers, pulse durations, and control options. Verify the exact model and configuration in writing rather than assuming that a feature shown for one version is standard across the entire series.
Mistake 5: Ignoring total system cost
The purchase price is only one part of the budget. Consider optical accessories, driver electronics, cooling, integration engineering, calibration, maintenance, and downtime. A suitable module with a straightforward interface may reduce the total cost of ownership even when its initial price is not the lowest.
9. Why Supplier Expertise Matters
Ultrafast laser projects often involve specialized technical requirements that cannot be resolved by comparing product names alone. A knowledgeable supplier can help clarify available configurations, explain specification differences, and identify potential compatibility issues before the design is finalized.
Box Optronics provides ultrafast laser modules for optical and photonics applications, with options spanning nanosecond, picosecond, and femtosecond pulse technologies. Its published product range includes different wavelength and power configurations, as well as options for SM and PM fiber interfaces.
Depending on the selected model, these sources may support optical frequency combs, supercontinuum generation, terahertz research, nonlinear optics, optical fiber sensing, and other specialized applications. The company also describes customization options for parameters such as pulse width, output power, repetition frequency, and fiber type.
When evaluating a configuration, share your intended application, target wavelength, pulse duration, power requirements, repetition rate, and preferred interface. This gives the technical team a clearer basis for assessing suitability and identifying the appropriate product specifications.
As with any precision optical component, confirm the exact configuration, delivery specifications, test documentation, and support arrangements directly with the supplier before placing an order.
10. Frequently Asked Questions
Q1. What are ultrafast laser modules used for?
They are used in photonics research, nonlinear optics, optical frequency combs, supercontinuum generation, terahertz systems, optical fiber sensing, multiphoton imaging, and other applications requiring pulsed optical output. The appropriate module depends on the application's wavelength, pulse duration, energy, and timing requirements.
Q2. What is the difference between picosecond and femtosecond laser modules?
Picosecond pulses typically last longer than femtosecond pulses. Femtosecond modules are useful for experiments involving extremely fast processes and certain nonlinear interactions, while picosecond modules can suit applications with less demanding temporal-resolution requirements. The final choice depends on the complete optical system.
Q3. How do I calculate pulse energy?
For a regular pulse train, divide average optical power by repetition rate. For example, 10 mW divided by 10 MHz gives approximately 1 nJ per pulse. Use consistent units and ensure that both values describe the same operating condition.
Q4. Why does wavelength matter when selecting an ultrafast laser?
Wavelength affects material interactions, fiber transmission, detector sensitivity, and compatibility with optical components. Choosing a wavelength that matches the experiment and the surrounding optical equipment helps avoid unnecessary conversion stages and integration difficulties.
Q5. Should I choose single-mode or polarization-maintaining fiber?
Single-mode fiber may be sufficient when stable polarization is not a critical requirement. Polarization-maintaining fiber is often preferred in polarization-sensitive experiments and systems where maintaining a defined polarization state is important. Confirm the required interface and specifications for the exact module.
Q6. Can ultrafast laser modules be customized?
Some manufacturers offer customization of parameters such as wavelength, pulse duration, output power, repetition rate, and fiber configuration. Availability depends on the design and technical feasibility of the requested combination. Provide a complete requirement list to obtain an accurate assessment.
Q7. What information should I provide when requesting a quotation?
Include the intended application, target wavelength, pulse duration, average power, pulse energy, repetition rate, fiber type, connector, control interface, operating environment, and estimated quantity. Also identify any mandatory stability, synchronization, or mechanical requirements.
Q8. How can I maintain consistent laser output?
Follow the manufacturer's operating instructions, maintain appropriate environmental conditions, protect optical connections, use a suitable power supply, and monitor critical output parameters. Document baseline measurements and investigate deviations before they affect experimental results.
Q9. Are ultrafast laser modules suitable for OEM integration?
Many modular laser sources are designed for integration into larger optical instruments, sensing equipment, and research platforms. Suitability depends on dimensions, electrical requirements, thermal management, control interfaces, optical connections, and the required safety provisions.
Q10. How do I verify that a laser module meets my requirements?
Review the current datasheet, confirm the exact product configuration, check measurement conditions, and request supporting test information for critical parameters. Where necessary, evaluate a sample or conduct system-level testing before committing to a larger order.
11. Conclusion: Build a More Reliable Photonics System
Ultrafast laser modules provide the short optical pulses needed for advanced research, precision measurement, nonlinear optics, and specialized sensing applications. Successful selection depends on understanding how pulse duration, wavelength, repetition rate, pulse energy, average power, polarization, and interface requirements work together.
By defining measurable application requirements, comparing complete specifications, and addressing integration challenges early, engineers can reduce development risks and select a source that fits both immediate needs and long-term project goals.
Whether you are developing an optical sensing platform, building a scientific instrument, or investigating nonlinear optical phenomena, choosing a well-matched module is an important step toward consistent and dependable results.
