How Can the STB1-63 Miniature Circuit Breaker Improve Circuit Protection?

Understanding the STB1-63 Miniature Circuit Breaker

Electrical distribution systems depend on reliable protective devices to help prevent damage caused by abnormal current conditions. An overloaded cable can overheat, while a short circuit can produce a very high current in a short period. Without suitable protection, these conditions may damage equipment, interrupt operations, and increase the risk of electrical fires.

A miniature circuit breaker is a resettable protective switching device designed to interrupt a circuit when current-related conditions exceed its operating characteristics. Unlike a conventional fuse, an MCB can generally be reset after the fault has been identified and corrected, provided the device has not been damaged and remains suitable for service.

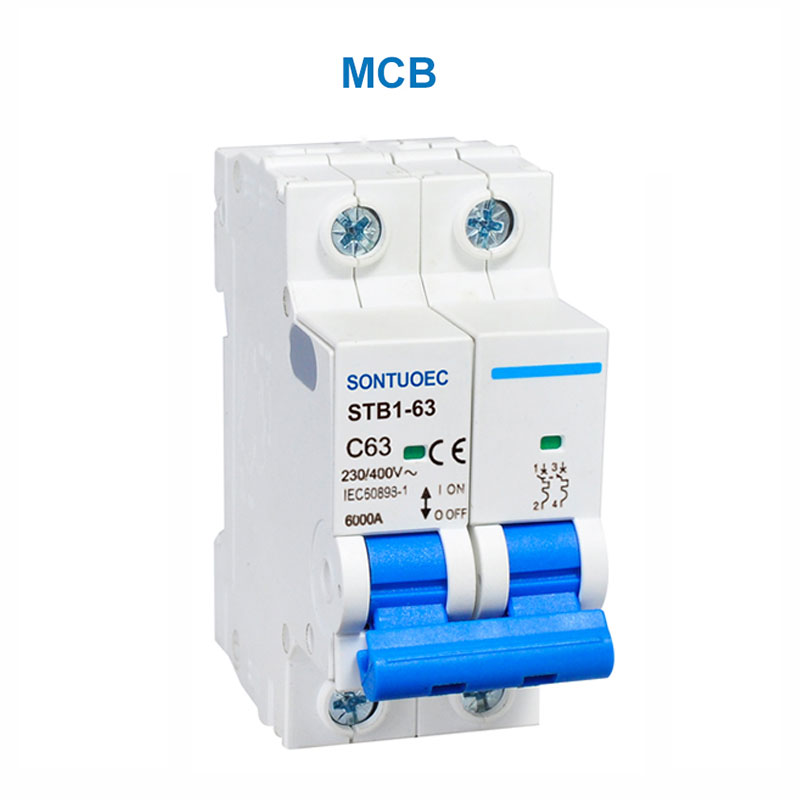

The STB1-63 Miniature Circuit Breaker from Wenzhou Santuo Electrical Co., Ltd. is intended for low-voltage circuit protection. Its published product information lists multiple rated-current options, pole configurations, tripping curves, and short-circuit breaking capacities. These options allow buyers to assess configurations for different distribution requirements.

For electrical wholesalers and panel manufacturers, the main procurement challenge is selecting a device that matches the actual circuit design. A breaker with an unsuitable current rating or insufficient breaking capacity can compromise protection, even when its external dimensions fit the distribution board.

How Does an MCB Protect an Electrical Circuit?

The STB1-63 belongs to the miniature circuit breaker category. MCBs commonly use a thermal-magnetic tripping mechanism to respond to overloads and short circuits. The precise internal construction and performance must be confirmed in the manufacturer's technical documentation for the relevant model.

Thermal Protection Against Overloads

An overload occurs when a circuit carries more current than intended for an extended period. This may happen when too many loads operate simultaneously or when equipment draws more current than expected.

In a thermal-magnetic breaker, an overload heats a bimetallic element. As the element heats and bends, it activates the tripping mechanism. The response depends on the magnitude of the overload and the breaker’s time-current characteristics.

This time-dependent response helps accommodate normal operating conditions while interrupting sustained overloads. However, the breaker must still be matched to the conductor size, installation method, ambient temperature, and expected load.

Magnetic Protection Against Short Circuits

A short circuit creates an unintended low-impedance path, potentially producing a current far above normal operating levels. The magnetic trip mechanism responds rapidly when current reaches the relevant operating threshold.

Rapid interruption helps limit the duration of the fault, but the breaker's rated short-circuit capacity must be sufficient for the prospective fault current at the installation point. A breaker should never be assumed suitable simply because its rated current matches the load.

Manual Switching and Resetting

An MCB typically includes a manual operating handle that allows a user to switch the circuit on or off. Following a trip, the cause should be investigated before the breaker is reset. Repeatedly resetting a breaker without identifying the underlying problem can expose equipment and wiring to continued risk.

It is also important to understand the device's limits. A standard MCB is not automatically a residual-current protection device. Where protection against earth-leakage or electric shock is required, the circuit design may call for an appropriate RCCB, RCBO, or another protective arrangement under applicable regulations.

Key STB1-63 Specifications Explained

Published STB1-63 product information identifies the following configuration options. Buyers should confirm the current datasheet and exact ordering code before treating any parameter as a contractual specification.

Understanding Rated Current

Rated current, expressed in amperes (A), is a key selection parameter. It is not a recommendation to choose a breaker based solely on the maximum expected load. The designer must coordinate the protective device with the conductor's current-carrying capacity and the relevant design rules.

Understanding Breaking Capacity

Breaking capacity, commonly expressed in kiloamperes (kA), indicates the short-circuit current that a breaker can interrupt under specified test conditions. The required value depends on the prospective fault current and the applicable system design. Where the available fault current exceeds the breaker's rating, an engineered and standards-compliant alternative may be required.

Understanding Tripping Curves

B, C, and D curves are commonly used to describe different instantaneous magnetic trip ranges. The selected curve affects how the breaker responds to short-duration current peaks, such as motor starting or transformer energization. The correct choice depends on the load and fault-loop conditions, not simply on whether a device is described as sensitive or heavy-duty.

Always obtain the manufacturer's official time-current curves and technical data for detailed coordination calculations.

How to Select the Right STB1-63 Configuration

Correct selection begins with the circuit rather than the product catalogue. A structured review helps procurement teams reduce specification errors, unnecessary replacements, and commissioning delays.

Step 1: Calculate the Circuit Load

Determine the expected operating current based on the connected equipment, supply voltage, phase arrangement, and applicable design method. For motors and other inductive loads, starting current and operating characteristics must also be considered.

Step 2: Coordinate the Breaker with the Conductors

The protective-device rating must be coordinated with the conductor's allowable current under the actual installation conditions. Cable material, cross-sectional area, insulation temperature rating, ambient temperature, grouping, and installation method may all affect the permissible current.

Step 3: Choose the Pole Configuration

Single-pole, two-pole, three-pole, and four-pole arrangements serve different circuit configurations. The correct arrangement depends on the supply system, neutral requirements, isolation requirements, and local electrical rules. Do not assume that every four-pole application requires the same neutral-switching arrangement.

Step 4: Select the Tripping Curve

These ranges are general reference values, and the published STB1-63 information lists the ranges above for its magnetic releases. Final selection must be based on the exact manufacturer's data and the applicable standard. A higher instantaneous trip threshold is not automatically better; it can affect fault disconnection performance.

Step 5: Verify the Prospective Fault Current

Determine the prospective short-circuit current at the point where the breaker will be installed. Select a device with sufficient breaking capacity and verify coordination with upstream and downstream protective devices where required.

Step 6: Check Environmental and Installation Conditions

Review ambient temperature, enclosure conditions, ventilation, mounting compatibility, conductor size, terminal requirements, and any relevant derating instructions. These factors can influence performance even when the nominal ratings appear correct.

Typical Applications and System Compatibility

MCBs are widely used in low-voltage distribution systems where branch-circuit overcurrent protection is required. The suitability of a particular STB1-63 configuration depends on its confirmed ratings and the system design.

Residential Distribution Boards

MCBs may protect lighting circuits, socket circuits, and other appropriately designed branch circuits. The rated current and tripping characteristics must match the wiring, load, and local installation requirements.

Commercial Buildings

Offices, retail spaces, and similar facilities may use MCBs to protect individual circuits supplying lighting, receptacles, and selected equipment. Clear circuit identification and consistent specifications can simplify maintenance and replacement.

Industrial Control Panels

Control panels may incorporate MCBs for auxiliary circuits, control power, and other compatible loads. Designers should verify available fault current, coordination with upstream protection, and the starting characteristics of connected equipment.

Distribution Equipment and Panel Assembly

Panel builders and electrical equipment manufacturers need reliable dimensional information, terminal specifications, mounting compatibility, and repeatable quality. Confirm the exact mechanical drawings and installation instructions before designing a panel around a particular breaker.

Where a circuit requires residual-current protection, surge protection, motor overload protection, or other specialized functions, an MCB alone may not satisfy all protection requirements. The complete protective arrangement should be selected according to the intended application and relevant regulations.

Installation and Safety Considerations

Correct installation is essential to the performance of any circuit breaker. Even a properly rated device may fail to provide the expected protection if it is installed incorrectly or used outside its specified conditions.

Verify the Product Before Installation

• Confirm the model, rated current, pole count, trip curve, voltage rating, and breaking capacity.
• Inspect the housing and terminals for visible shipping damage.
• Verify that the device is compatible with the intended distribution board and mounting arrangement.
• Review the manufacturer's installation instructions and applicable local requirements.

Use Correct Wiring and Terminal Practices

Conductors must be suitable for the terminals and installation conditions. Follow the manufacturer's specified conductor preparation and tightening torque. Loose connections can create resistance, localized heating, and premature failure; overtightening can also damage terminals.

Observe Safe Isolation Procedures

Installation and maintenance should be performed by qualified personnel using appropriate isolation, verification, and protective procedures. Switching a breaker to the OFF position should not be treated as a substitute for verifying that the work area is electrically safe.

Verify the Completed Installation

After installation, the responsible professional should perform the checks and tests required by the applicable regulations and commissioning plan. These may include connection checks, circuit identification, protective-device coordination, and verification of the intended protective measures.

Common Problems and Troubleshooting

A breaker that trips repeatedly is responding to a condition that needs investigation. Replacing it with a higher-rated device without reviewing the circuit can create a serious safety hazard.

Problem 1: The Breaker Trips During Normal Use

Possible causes include excessive load, an unsuitable rated current, high starting current, incorrect coordination, or an electrical fault. A qualified electrician should assess the load and wiring before changing the breaker configuration.

Problem 2: The Breaker Trips Immediately

Immediate tripping may indicate a short circuit, a severe fault, incorrect wiring, or a problem with connected equipment. Do not repeatedly reset the breaker. Isolate the circuit safely and arrange professional investigation.

Problem 3: The Terminal Area Becomes Hot

Abnormal heating may result from loose connections, excessive current, unsuitable conductor preparation, or damaged terminals. The circuit should be assessed promptly by qualified personnel. Do not touch potentially energized components or attempt live tightening.

Problem 4: The Breaker Cannot Be Reset

The circuit may still contain a fault, or the breaker may have been damaged. The cause must be identified before the circuit is returned to service. A visibly damaged or suspect protective device should be evaluated and replaced when required.

For distributors and maintenance teams, recording the circuit conditions, model number, operating history, and fault symptoms can help suppliers and technicians investigate problems more efficiently.

Maintenance and Service Life

MCBs are generally designed for dependable operation with limited routine intervention, but their actual service life depends on the product, loading conditions, environment, switching frequency, and exposure to faults.

Schedule Appropriate Inspections

Inspection frequency should follow the equipment manufacturer's guidance, applicable electrical codes, and the operating environment. Industrial installations with demanding conditions may require a different maintenance program from ordinary residential distribution boards.

Check for Environmental Damage

Qualified maintenance personnel should look for signs of overheating, contamination, corrosion, cracked housings, damaged terminals, or other conditions that may compromise safe operation.

Investigate Repeated Fault Events

A breaker that has interrupted a severe fault should be assessed in accordance with the manufacturer's instructions and applicable maintenance procedures. Do not assume that every breaker remains suitable for service after every fault event.

Keep Accurate Maintenance Records

Record the breaker model, installation date, circuit identification, inspection results, and any replacement or fault history. These records help facility managers plan maintenance and help procurement teams identify the correct replacement configuration.

How to Evaluate an MCB Supplier

For B2B buyers, a competitive unit price is only one part of the purchasing decision. Technical documentation, manufacturing consistency, delivery reliability, and after-sales communication can be equally important.

Review Manufacturing Experience

Evaluate the supplier's product range, production capabilities, quality procedures, and experience with low-voltage protective devices. Request information relevant to the product series and application rather than relying exclusively on general company descriptions.

Verify Technical Documentation

Request the official datasheet, dimensional drawings, time-current curves, applicable standard references, and relevant test or conformity documents. Confirm that the documents correspond to the exact model and configuration being quoted.

Assess Quality Control

Ask how incoming components are checked, how production defects are controlled, and what final inspections are performed. For larger orders, agree on inspection criteria, product identification, packaging, and procedures for managing nonconforming goods.

Clarify Commercial Requirements

Confirm the minimum order quantity, price by configuration, sample availability, lead time, packaging requirements, payment terms, shipping arrangements, and warranty conditions. Ensure that all critical requirements appear in the quotation or purchase documentation.

Wenzhou Santuo Electrical Co., Ltd.'s STB1-63 Miniature Circuit Breaker is a product option for buyers sourcing low-voltage circuit protection components. The company also lists other circuit protection and electrical control products. Buyers should discuss their intended application and verify all model-specific technical and commercial details directly with the supplier.

The company describes its experience in circuit breakers and AC contactors, along with quality and conformity credentials on its company profile. For a particular project, request the relevant supporting documents and verify their scope, validity, and applicability to the products being purchased.

Purchasing Checklist for STB1-63 Miniature Circuit Breakers

Before requesting a quotation or placing a bulk order, prepare a clear specification sheet. This makes it easier to compare offers and reduces the risk of ordering an incompatible configuration.

• Confirm the STB1-63 model and required rated current.
• Specify the number of poles and intended supply arrangement.
• Identify the required B, C, or D tripping characteristic.
• Confirm the required short-circuit breaking capacity.
• Provide the system voltage, frequency, and intended application.
• Verify the relevant product standard and required conformity documents.
• Request official technical data, drawings, and time-current curves.
• Confirm mounting dimensions, terminal requirements, and accessories where applicable.
• Clarify MOQ, sample arrangements, unit pricing, lead time, and packaging.
• Agree on inspection requirements, warranty terms, and delivery documentation.

A complete specification helps the supplier recommend an appropriate configuration without making assumptions about the installation. For safety-critical applications, the final selection should be reviewed by a qualified electrical designer or responsible professional.
