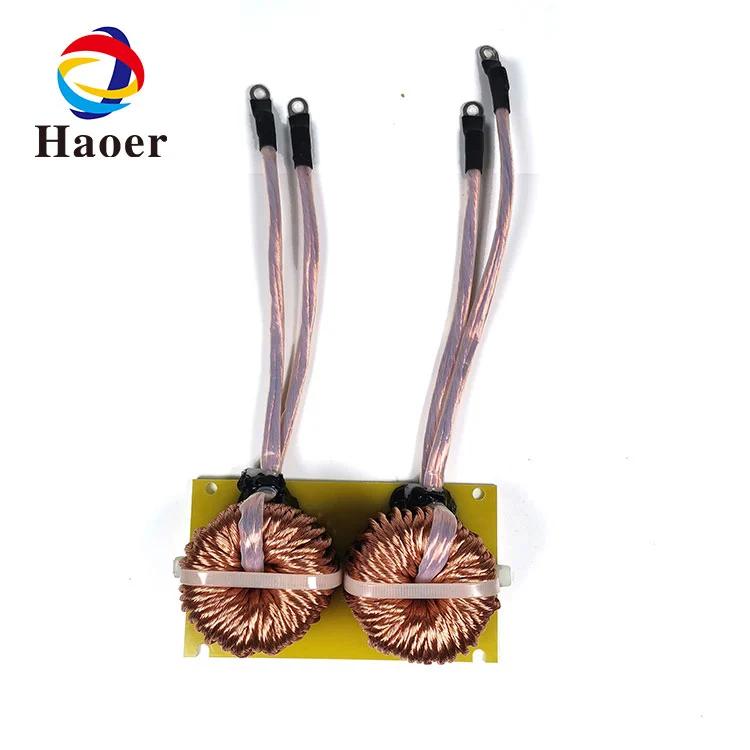

How Can Parasitic Capacitance Be Minimized in a Large Switching Power Supply Assembly Inductor

In the realm of power electronics, the efficiency and thermal stability of a Large Switching Power Supply Assembly Inductor are paramount. One of the silent performance killers in these components is parasitic capacitance. This stray capacitance can cause unexpected resonance, increase switching losses, and generate electromagnetic interference (EMI). At Haoer, we specialize in engineering solutions that mitigate these issues, ensuring that your Large Switching Power Supply Assembly Inductor operates at peak efficiency even under high-frequency conditions.

To minimize parasitic capacitance effectively, engineers must focus on the winding methodology and the insulation materials used during the manufacturing process.

Key Strategies for Capacitance Reduction

Reducing parasitic capacitance involves altering the physical relationship between the windings and the core. Below are the most effective techniques employed in the industry:

• Sectioned Winding Technique: Dividing the winding into multiple sections or "pies" reduces the voltage gradient between adjacent layers, thereby lowering the stored capacitive energy.

• Progressive Winding: Also known as bank winding, this method spaces out the turns so that they do not lie perfectly parallel to each other, disrupting the natural capacitance formation.

• Insulation Optimization: Using insulation with a lower dielectric constant between layers helps reduce the capacitive coupling without requiring a physical redesign of the coil.

Comparison of Winding Techniques

To illustrate the impact of different design choices, the table below compares common winding methods used in a Large Switching Power Supply Assembly Inductor.

By implementing the sectioned winding technique, Haoer ensures that the Large Switching Power Supply Assembly Inductor maintains a high self-resonant frequency (SRF), keeping it well above the operating frequency range and preventing unwanted oscillations.

Frequently Asked Questions

Here are three common inquiries regarding the management of stray capacitance in high-power inductors.

FAQ 1: Why is parasitic capacitance more problematic in a large switching power supply assembly inductor than in a small signal inductor?
In a Large Switching Power Supply Assembly Inductor, the currents and voltages are significantly higher. The energy stored in the parasitic capacitance (E = 0.5 * C * V²) is substantial due to the high voltage swings. When this capacitance discharges during each switching cycle, it dissipates energy as heat directly in the core and windings, leading to efficiency drops and thermal runaway risks that are not typically seen in small-signal components.

FAQ 2: Does increasing the physical size of the inductor help reduce parasitic capacitance?
Not directly. While a larger core allows for thicker wire or more turns, the parasitic capacitance is primarily a function of the winding geometry and the turn-to-turn voltage, not just the physical volume. Simply making the inductor larger without changing the winding pattern (e.g., using multi-layer solenoids) can actually increase capacitance due to longer, parallel wire runs. Haoer utilizes specific spacing techniques to ensure that size increases translate to better thermal performance without a capacitance penalty.

FAQ 3: How does the choice of core material affect the parasitic capacitance in a large switching power supply assembly inductor?
The core material itself does not directly contribute to parasitic capacitance in the same way that windings do. However, the core material dictates the number of turns required to achieve a specific inductance. A core material with lower permeability (like an iron powder core) might require more turns to reach the desired inductance, which could increase the surface area of the winding and potentially the capacitance. Conversely, high-permeability materials require fewer turns, which naturally helps keep the parasitic capacitance lower.

Optimizing High-Frequency Performance

When dealing with high-frequency switching converters, the goal is to keep the self-resonant frequency of the Large Switching Power Supply Assembly Inductor at least ten times higher than the switching frequency. If the operating frequency approaches the SRF, the inductor begins to act like a capacitor, causing catastrophic circuit failure.

At Haoer, we utilize finite element analysis (FEA) to model the electrostatic fields within the inductor. This allows us to predict and mitigate parasitic capacitance issues before a single prototype is built, ensuring that your power supply remains stable and cool under load.

Contact us today to discuss how Haoer can engineer a custom Large Switching Power Supply Assembly Inductor that solves your parasitic capacitance and thermal management challenges.
