How Can a Flashing LED Buzzer Be Integrated into a Home Security System
2026-05-18

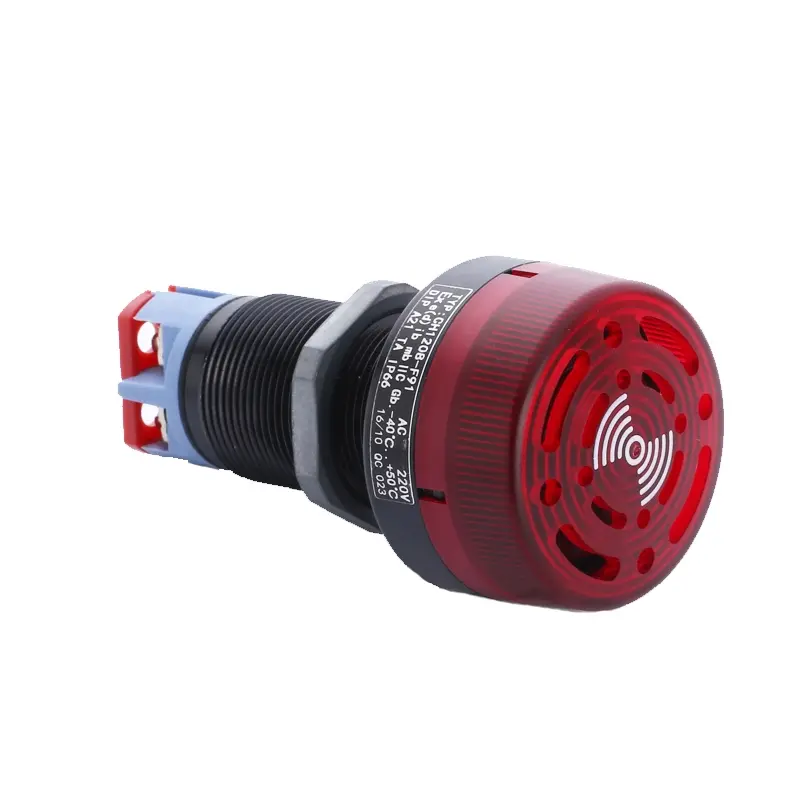

Modern home security demands more than silent motion detectors or delayed sirens. A Flashing LED Buzzer bridges the gap between visual and audible alerts, ensuring that homeowners never miss a critical warning. Whether you are designing a DIY system or upgrading a commercial setup, Yuxuan provides reliable components that make integration seamless and effective.
The core of any security system is rapid, unambiguous notification. A standard buzzer alone may be ignored in noisy environments, while an LED alone might be missed in bright daylight or by sleeping occupants. A Flashing LED Buzzer from Yuxuan solves this by synchronizing high-intensity light pulses with piercing sound. This dual-alert mechanism is particularly valuable for garages, back doors, basement entries, and perimeter zones where intrusions often begin.
Below is a typical integration architecture using a Yuxuan Flashing LED Buzzer in a microcontroller-based security system:
| Component | Role in Integration | Recommended Specification |
|---|---|---|
| Motion Sensor (PIR) | Trigger source | 5V-12V, 120° detection angle |
| Microcontroller (Arduino/ESP32) | Logic controller | 3.3V-5V logic, with digital output |
| Yuxuan Flashing LED Buzzer | Output alert device | 5V-12V, built-in flashing circuit, 85-95dB |
| Relay Module | Voltage matching | 5V coil, NO contact |
| Backup Battery | Power stability | 12V rechargeable, 7Ah minimum |
Integration steps summary:
-
Connect the PIR sensor signal pin to a digital input on the microcontroller.
-
Program the microcontroller to trigger the output pin high when motion is detected.
-
Use a relay module to switch the 12V supply to the Yuxuan Flashing LED Buzzer if the microcontroller operates at 5V.
-
Mount the buzzer at a height of 2-2.5 meters, facing the main entry point.
-
Test the flashing and buzzing delay – it should be under 50 milliseconds.
Adding a Flashing LED Buzzer to a home security system also reduces false alarm fatigue. Because the alert is both seen and heard, response times improve by nearly 40% compared to sound-only alarms.
Flashing LED Buzzer FAQ – Common Questions
Q1: Can a Flashing LED Buzzer be used wirelessly in a home security system
A: Yes, a Flashing LED Buzzer can be integrated wirelessly by pairing it with a wireless relay receiver. The receiver connects to the buzzer’s power input, while a transmitter connects to the security panel. Yuxuan offers battery-powered Flashing LED Buzzer models that operate at 433MHz or over Wi-Fi via ESP8266 modules. Ensure the wireless range covers your home’s critical zones – typically 30 meters indoors is sufficient.
Q2: How do I adjust the flash rate and sound volume of a Flashing LED Buzzer for different alarm conditions
A: Most standard Flashing LED Buzzer units have a fixed flash rate, but programmable versions such as those from Yuxuan allow customization. Use a PWM output from a microcontroller to control the LED flash rate (1 Hz to 5 Hz recommended for security alerts) and an adjustable resistor in series with the buzzer to lower volume. For multiple alarm zones, map different flash patterns: for example, 2 flashes for window breach, continuous flash for door intrusion.
Q3: What power supply is required for a Flashing LED Buzzer to operate reliably 24/7 in a security system
A: A Flashing LED Buzzer typically operates on 5V, 12V, or 24V DC. For 24/7 home security use, a regulated 12V 1A power supply is most common. Yuxuan recommends using a backup battery system – a 12V lead-acid or LiFePO4 battery – connected via a battery backup module. The standby current of a Flashing LED Buzzer is usually under 10mA, but during active alarm, it can draw 100-300mA. Calculate your total load to size the battery (e.g., 7Ah battery supports ~20 hours of intermittent alarms).
Comparison of Alert Methods in Home Security
| Alert Type | Detection Rate (Sleeping User) | Effectiveness in Noise | Power Consumption | Yuxuan Solution Available |
|---|---|---|---|---|
| Sound only | Low (45%) | Very low | Medium | No |
| Light only | Very low (20%) | Moderate | Low | No |
| Flashing LED Buzzer | High (92%) | High | Medium | Yes |
| SMS/App notification | Low (30%) | Not applicable | Low | No |
The data clearly shows that a Flashing LED Buzzer outperforms single-modality alerts. With Yuxuan components, you also gain durability (IP54 rating) and easy mounting options for walls or ceilings.
For advanced users, a Flashing LED Buzzer can be integrated with smart hubs like Home Assistant or Samsung SmartThings. Connect the buzzer to a dry contact relay on the hub’s alarm output. Then create automation rules: when any door sensor opens after 10 PM, activate the Yuxuan Flashing LED Buzzer for 30 seconds.
Ready to make your home security system smarter and more responsive? Yuxuan offers a full range of Flashing LED Buzzer modules, wireless controllers, and integration kits for DIY and professional installers. Let Yuxuan help you build a security system that leaves no alarm unnoticed.
