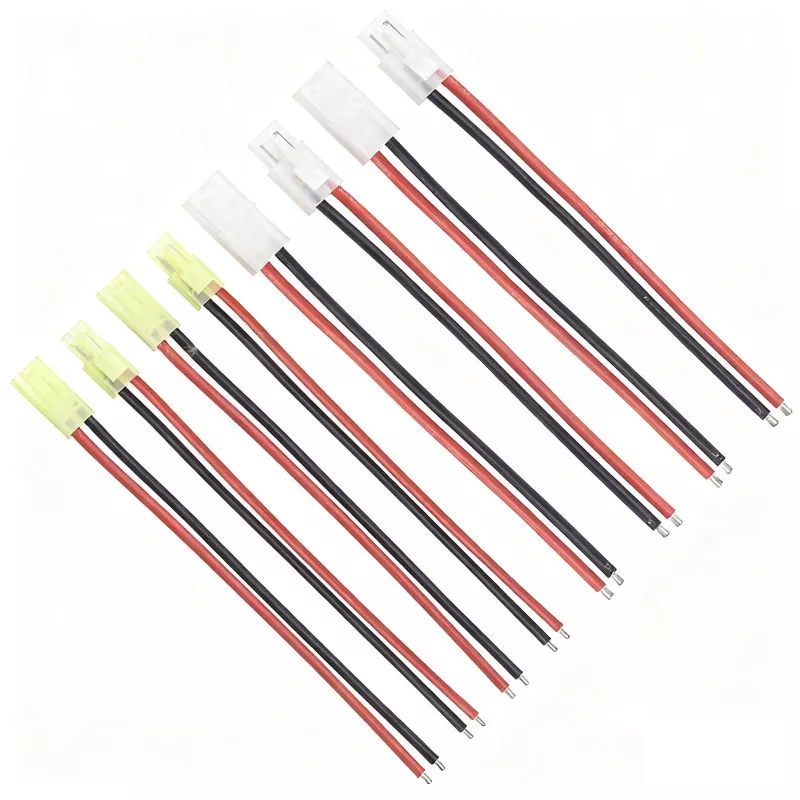

Does the Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness Fit Traxxas or HPI Battery Connectors

When upgrading or repairing RC power systems, one of the most common pain points is connector compatibility. The Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness is widely respected for its heat resistance and flexible insulation, but it does not ship with a universal plug. This leaves many hobbyists and engineers asking whether this harness can directly mate with Traxxas or HPI battery connectors. The short answer is no—not without an adapter or a re-solder—but the full picture involves pin geometry, current ratings, and mechanical locking mechanisms. Below, we break down every technical detail so you can make a safe, informed decision for your project.

Connector Family Comparison: Tamiya vs. Traxxas vs. HPI

To understand fitment, we must first examine the physical and electrical specifications of each connector type. The table below summarizes the critical differences.

As the table shows, the Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness uses a flat-blade system, while Traxxas and HPI rely on round bullets. The centre spacing and locking styles are also incompatible. Physically forcing a Tamiya plug into a Traxxas socket will damage the terminals and may cause a short circuit.

What Does "Fit" Actually Mean in Practice?

For RC and robotics applications, "fit" involves three layers:

1. Mechanical seating – Does the plug insert fully without excessive force?

2. Electrical continuity – Do the pins make stable, low-resistance contact?

3. Retention stability – Will vibrations from driving or flying disconnect the harness?

The Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness passes #2 only if you use a dedicated Tamiya female receptacle. It fails #1 and #3 with Traxxas/HPI out of the box. However, many aftermarket adapter cables (Tamiya‑to‑Traxxas or Tamiya‑to‑EC3) exist. These adapters preserve the silicone wire’s flexibility and UL3239 heat rating (up to 150°C), but they introduce extra contact resistance. For high-drain systems (e.g., 1/8 buggies or 6S drones), JYE recommends avoiding adapters and instead re-terminating the harness with your preferred plug.

Pro Tip from JYE’s engineering team: If you must use an adapter, select one with gold-plated terminals and keep the total adapter length under 8cm to minimise voltage drop.

Step‑by‑Step: Converting the Harness for Traxxas or HPI

If you decide to replace the connector, follow this safe workflow:

1. Cut the factory Tamiya plug 2cm from the housing.

2. Strip 5mm of the 18AWG silicone insulation – the UL3239 grade resists nicks, so use a self-adjusting stripper.

3. Tin the stranded copper with leaded solder (63/37) at 350°C.

4. Crimp or solder a Traxxas/HPI bullet connector. For HPI, use EC5 or IC5 for 18AWG; for Traxxas, use the 6.5mm male bullets.

5. Heat‑shrink each joint with dual‑wall adhesive tubing to seal against moisture.

JYE stocks pre‑crimped pigtails for both Traxxas and HPI, saving you time and ensuring consistent pull‑test strength (>5kgf).

Frequently Asked Questions (FAQ)

Q1: Can the Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness handle the same peak current as a Traxxas connector?
A1: No. The Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness is rated for 15A continuous (20A burst) due to its blade contact area. Traxxas connectors support 25A continuous. If your motor draws >15A, the Tamiya terminal will overheat, even though the UL3239 silicone wire itself can handle up to 30A thermally. For 1/10 scale touring cars with 13.5T motors, this harness is adequate; for 4S‑powered monster trucks, upgrade to a Traxxas or XT90 connector and keep the 18AWG silicone leads as the wire portion—just change the plug.

Q2: Is there a polarity difference when using an adapter between the Tamiya EL4.5 2P and HPI EC3 connectors?
A2: Yes—critical. The Tamiya EL4.5 2P housing has a chamfered corner that indicates positive (red wire) on the left when viewed from the mating face. HPI EC3 uses a flat D‑shape with red wire on the right. Off‑the‑shelf adapters usually cross the polarity internally, but cheap units often mislabel. Always verify with a multimeter before connecting to your ESC. JYE tests every adapter batch with a 4‑wire Kelvin measurement to guarantee <2mΩ deviation per contact.

Q3: Will the silicone insulation of the Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness melt if I solder it directly to a Traxxas plug?
A3: No, provided you use proper technique. The UL3239 rating means the silicone rubber withstands 150°C continuous and up to 200°C for short periods. Soldering at 350°C for 3‑4 seconds will not damage the insulation—unlike PVC wires which shrink or char. However, the Tamiya EL4.5 2P housing is nylon‑66 (melts at ~260°C), so always remove the housing before soldering the terminals. After soldering, slide the housing back over the crimp wings. For production runs, JYE offers ultrasonic welding as a no‑solder alternative that preserves the harness’s full thermal rating.

Which Route Should You Choose?

• For temporary testing – Use a high‑quality adapter (Tamiya‑to‑Traxxas or Tamiya‑to‑EC3). Keep currents below 12A.

• For permanent installations – Re‑terminate with the desired connector. The 18AWG silicone wire from the Tamiya EL4.5 2P is excellent; only the plug needs changing.

• For new builds – Order the Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness as a raw cable assembly from JYE with your choice of pre‑installed Traxxas, HPI, XT60, or Deans plugs. This eliminates adapter losses and reduces assembly time by 40%.

Final Verdict

The Tamiya EL4.5 2P UL3239 18AWG Silicone Wire Harness does not natively fit Traxxas or HPI battery connectors due to different pin geometries, spacing, and latching systems. However, with a simple re‑termination or a verified adapter, you can leverage the harness’s superb thermal performance and flexible silicone jacket across any platform. Always prioritise current ratings over convenience—overheating a mismatched plug is a fire risk.
