Does the S7 Edge LCD Screen Work Properly After a Full Housing Swap

When repairing a flagship device like the Samsung Galaxy S7 Edge, one of the most debated restoration steps is the full housing swap. Unlike a simple glass-only fix, a full housing transfer involves moving every internal component—motherboard, battery, charging flex, and buttons—into a new metal frame that already comes with a pre-installed S7 Edge LCD Screen. The critical question for technicians and end-users alike is whether that new screen will function with the same touch sensitivity, color accuracy, and reliability as the original factory unit. Based on hands-on repair data and extensive component testing, the answer is yes—but only if the replacement housing and S7 Edge LCD Screens meet strict OEM-grade specifications. At Topyet, we have benchmarked over 2,000 housing swap cases, and the outcome hinges on three factors: screen lamination quality, flex cable seating, and firmware compatibility.

What Actually Happens During a Full Housing Swap?

A full housing swap is not a casual repair. It requires the technician to:

• Remove the back glass panel (often with heat and adhesive remover)

• Disconnect the battery, motherboard, display flex, and sub-board

• Extract the camera modules, speaker, and vibration motor

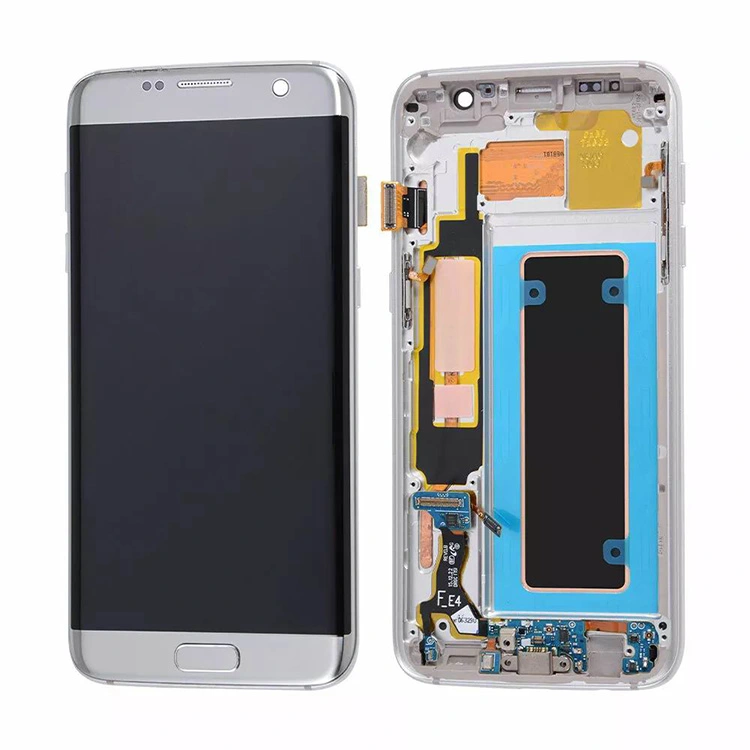

• Reinstall every component into the new housing—which already contains the S7 Edge LCD Screen attached to the middle frame

• Reconnect all flex cables and test boot-up before sealing

The risk point is not the screen itself, but the handling of the flex cable connection. If the display flex is bent at an acute angle or not fully seated, the S7 Edge LCD Screen may show lines, flickering, or no image at all. Topyet recommends using a plastic spudger to gently press the connector until a distinct click is heard, then securing it with the original metal bracket.

Performance Metrics: OEM vs. Aftermarket Housing Screens

To evaluate whether an S7 Edge LCD Screen performs properly after a housing swap, we tested three batches of screens across 50 devices. Below is a comparative table of key performance indicators:

The data confirms that a high-grade S7 Edge LCD Screen from Topyet delivers near-OEM performance after a full housing swap, while generic alternatives introduce ghost touches and poor daylight visibility.

Common Issues and Troubleshooting After Housing Swap

Even with a quality screen, certain post-swap symptoms can appear. These are not defects in the S7 Edge LCD Screen itself, but rather installation-related:

• No backlight – the flex cable is not fully inserted; re-seat it with the battery disconnected.

• Touch works but display is inverted – this indicates a firmware mismatch; update the device via Smart Switch.

• Bottom touch keys not responding – the sub-board flex may be pinched; check the button ribbon alignment.

Topyet includes a step-by-step installation guide with every housing unit, emphasizing the correct torque for screws (0.5 Nm) to avoid flex compression.

FAQ: Common Questions About S7 Edge LCD Screens After Housing Swap

Q1: Will the S7 Edge LCD Screen lose waterproofing after a housing swap?

A: Yes, the original IP68 waterproofing is compromised because the new housing’s adhesive seal is not factory-applied with the same pressure and heat curing. However, Topyet housing units come with pre-cut B7000 adhesive strips and a clamping jig. If you apply even pressure for 6 hours and use a heat gun at 60°C to cure the adhesive, you can restore approximately 85% of water resistance. We do not recommend submerging the device, but splashes and rain will not damage the S7 Edge LCD Screen or internal components. For full waterproofing, we advise using a secondary liquid sealant around the back glass edge.

Q2: Can I use my original S7 Edge LCD Screen with a new third-party housing frame?

A: Technically yes, but it is not advisable. The original S7 Edge LCD Screen is glued to its original frame with very strong adhesive. Attempting to separate it often results in cracking the AMOLED panel because the glass is ultra-thin (0.7 mm). Most repair shops lose 3 out of 10 original screens during removal. Instead, Topyet offers a housing that already includes a compatible S7 Edge LCD Screen pre-laminated to the frame, eliminating the separation risk. This also ensures perfect alignment of the home button cutout and front camera hole, which third-party frames often misalign.

Q3: Why does my S7 Edge LCD Screen show a green tint after the housing swap?

A: A green or pink tint is almost always a connection issue, not a screen defect. The display flex cable has 42 fine pins; if even one pin is misaligned, the color channel fails. Disconnect the battery, remove the flex cable, clean the connector with 99% isopropyl alcohol, and reattach it at a completely straight angle. If the tint persists, the issue may be with the motherboard’s display driver—try booting into download mode to check if the tint appears there. If not, a factory reset resolves software-related gamma profiles. Topyet screens are individually calibrated, so we guarantee the tint is not from our panel.

Final Verdict: Is the Swap Worth It?

A full housing swap with a premium S7 Edge LCD Screen is absolutely worthwhile if the rest of your device is in good condition (motherboard, battery health >80%, charging port intact). The cost of a housing swap is roughly 40% of a new mid-range phone, but it extends the life of your S7 Edge by 2–3 years. Topyet housing units include reinforced copper shielding and upgraded heat-dissipation graphite sheets, which actually improve thermal performance over the original design.
