Does Stainless Steel Cable Gland PG Series Provide Better Corrosion Resistance Than Standard Steel
2026-06-12

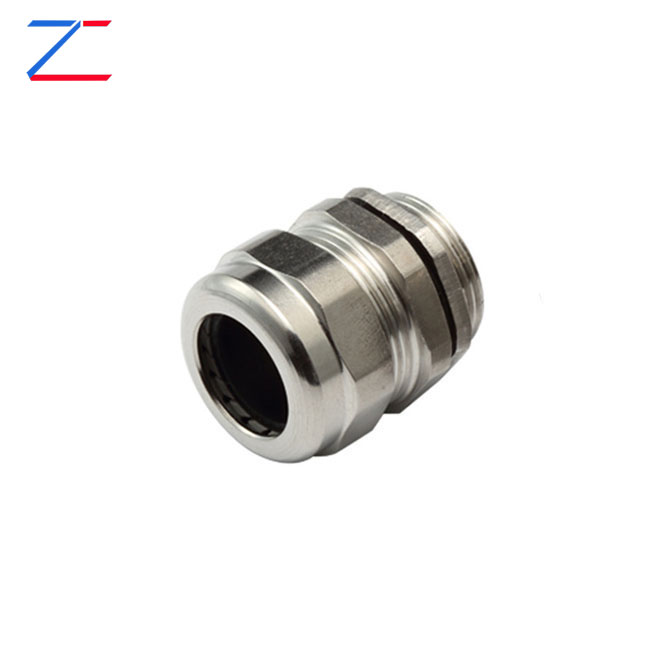

When selecting cable entry systems for harsh environments, material choice is critical. Many engineers and procurement specialists ask: does the Stainless Steel Cable Gland PG Series outperform standard steel in corrosion resistance? The short answer is yes, but the technical reasons deserve a deep dive. At Zhechi, we specialize in high-performance cable glands, and our Stainless Steel Cable Gland PG Series is engineered specifically for applications where rust and degradation are unacceptable.
The Corrosion Problem with Standard Steel
Standard steel cable glands are typically made from carbon steel with a plating layer (zinc or nickel). Once that plating is scratched or pitted, the underlying steel becomes exposed to moisture, oxygen, and chemicals. This leads to red rust, thread seizure, and eventual failure. In contrast, stainless steel contains chromium, which forms a passive oxide layer that self-repairs when damaged.
Direct Comparison: Stainless Steel Cable Gland PG Series vs. Standard Steel
| Property | Standard Steel (Plated) | Zhechi Stainless Steel Cable Gland PG Series |
|---|---|---|
| Base Material | Carbon steel + Zn/Ni plating | AISI 304 / 316 stainless steel |
| Corrosion Mechanism | Plating failure → rapid oxidation | Passive chromium oxide layer |
| Salt Spray Test (ASTM B117) | 72–240 hours before red rust | 500–1200+ hours (no red rust) |
| Suitable for Marine Environments | No | Yes (especially grade 316) |
| Thread Galling Risk | Medium (plating wears) | Low (anti-galling options available) |
| Lifespan in Humid/Coastal Areas | 1–3 years | 10+ years |
Standard steel is acceptable for indoor, dry locations. However, for outdoor, marine, chemical, or food processing plants, the Stainless Steel Cable Gland PG Series from Zhechi delivers unmatched durability.
Why the Passive Layer Matters
The chromium content in stainless steel (minimum 10.5%) reacts with oxygen to create a stable, invisible film. Even if the surface is scratched, new oxide forms immediately. Standard steel lacks this element and depends entirely on a fragile external coating. Over time, thermal cycling and vibration cause micro-cracks in the plating, inviting moisture penetration.
Stainless Steel Cable Gland PG Series – FAQ
Q1: Can the Stainless Steel Cable Gland PG Series be used in direct contact with seawater?
A1: Yes, but only if you select grade 316 stainless steel. The Zhechi Stainless Steel Cable Gland PG Series is available in both AISI 304 (general industrial) and AISI 316 (marine grade). Grade 316 adds molybdenum, which significantly improves resistance to chloride-induced pitting and crevice corrosion. For permanent seawater immersion or splash zones, Zhechi strongly recommends PG series in AISI 316 with silicone or EPDM sealing washers. Standard steel will show rust within days in the same environment.
Q2: How does the Stainless Steel Cable Gland PG Series perform in acidic or alkaline chemical atmospheres?
A2: Far better than standard steel. Standard steel plating dissolves quickly in low-pH (acidic) or high-pH (caustic) environments, leading to rapid base metal corrosion. The Zhechi Stainless Steel Cable Gland PG Series (AISI 304) resists most organic acids, mild alkalis, and industrial chemicals. For stronger acids like sulfuric or hydrochloric, Zhechi can supply special alloy versions or advise on PTFE-lined glands. However, for typical chemical plants, wastewater treatment, and battery rooms, the PG series in stainless steel provides reliable service, while standard steel would require replacement within months.
Q3: Is the Stainless Steel Cable Gland PG Series more difficult to install than standard steel due to galling?
A3: Thread galling (cold welding) can occur when stainless steel threads are over-tightened. However, Zhechi designs its PG series with precision-rolled threads and offers anti-galling coatings or lubricants upon request. Standard steel glands rarely gall, but they seize from rust instead. In practice, proper installation with moderate torque and a drop of anti-seize compound makes the Zhechi Stainless Steel Cable Gland PG Series easy to install and remove even after years in service. Standard steel glands often become permanently frozen due to corrosion inside the threads. For frequent maintenance access, stainless steel is actually superior.
Final Verdict
Does the Stainless Steel Cable Gland PG Series provide better corrosion resistance than standard steel? Absolutely. Standard steel fails quickly in moist, saline, or chemical environments. The Zhechi Stainless Steel Cable Gland PG Series (especially grade 316) delivers decades of reliable performance, self-healing passivation, and compliance with IP68 and NEMA 4X ratings. For any application where downtime, safety, or replacement cost matters, stainless steel is not an upgrade—it is a necessity.
Contact Zhechi Today
Need the right Stainless Steel Cable Gland PG Series for your project? Zhechi provides full technical datasheets, free sample evaluation, and bulk pricing. Contact our engineering team now to specify the correct PG size (PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48) and material grade for your environment.
