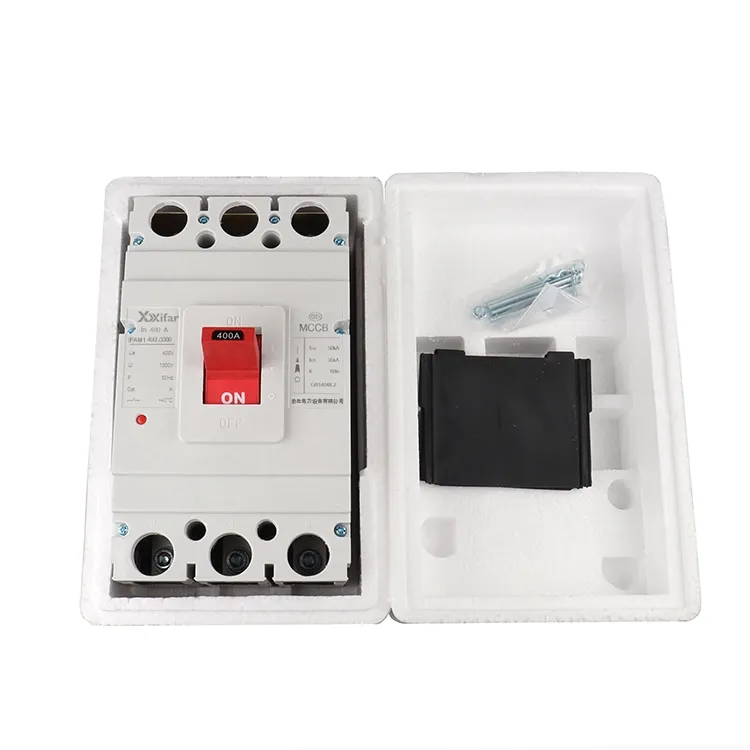

Does a 400a 3p MCCB Enclosed Molded Case Switch Come with Adjustable Magnetic Trip Settings

When specifying a 400a 3p MCCB Enclosed Molded Case Switch for industrial power distribution, one of the most frequent engineering questions concerns trip unit flexibility. The short answer is yes—most modern units from reputable manufacturers, including XiFa, offer adjustable magnetic trip settings. However, the extent of adjustability, the mechanism involved, and the application implications deserve a detailed examination.

Understanding Magnetic Trip vs. Thermal-Magnetic Trip

Before diving into adjustability, it is critical to distinguish between two common protection schemes:

For a 400a 3p MCCB Enclosed Molded Case Switch, the magnetic instantaneous trip setting determines the current level at which the breaker trips without intentional time delay—typically for short-circuit faults. XiFa offers both fixed and fully adjustable versions, with the latter being increasingly preferred for mission-critical applications.

What Does "Adjustable Magnetic Trip" Mean in Practice?

Adjustable magnetic trip allows the engineer to set the instantaneous pickup current anywhere between 2 and 10 times the rated current (In), or in some designs, 5× to 12× In. For a 400a 3p MCCB Enclosed Molded Case Switch, this translates to an adjustable range of 800A to 4,000A (or up to 4,800A). This flexibility is invaluable when:

• Coordinating with downstream protective devices (selectivity)

• Accommodating inrush currents from large motors or transformers

• Adjusting for future load changes without replacing the entire switch

XiFa implements this adjustment via a rotary dial on the front face of the enclosed unit, clearly marked with multiplier values. The enclosure does not require opening for adjustment, preserving the IP rating and safety integrity.

Key Technical Parameters at a Glance

Practical Coordination Example

Consider a feeder circuit with a 150HP motor (inrush ~1,200A) and downstream branch breakers rated at 100A. Setting the 400a 3p MCCB Enclosed Molded Case Switch magnetic trip too low (e.g., 2,000A) may cause nuisance tripping during motor start. Setting it at 3,200A (8× In) provides a 2.6× safety margin above inrush while still protecting the cable against bolted faults. XiFa units include a trip-test button to verify settings without primary injection, a feature rarely found in fixed-trip competitors.

FAQ – Common Questions About the 400a 3p MCCB Enclosed Molded Case Switch

Q: Can I adjust the magnetic trip setting while the 400a 3p MCCB Enclosed Molded Case Switch is energized and under load?
A: No. XiFa strongly recommends de-energizing the switch before any adjustment. Although the adjustment dial is externally accessible, altering the trip threshold while current flows through the main contacts can create arc-flash hazards and mechanical stress on the trip mechanism. Always follow NFPA 70E lockout/tagout procedures. After adjustment, perform a mechanical trip test with the switch off but control power applied to verify the new setting.

Q: How do I verify that my 400a 3p MCCB Enclosed Molded Case Switch magnetic trip is actually set to the dial indication?
A: The dial setting is a reference, not a certified calibration. For critical applications, XiFa recommends a secondary injection test every 2 years or after any major fault event. Use a portable circuit-breaker tester that injects a simulated fault current into the trip unit. Compare the actual trip current against the dial value—tolerance is typically ±10%. If deviation exceeds 15%, the trip mechanism or current sensor may need replacement. Most XiFa units include test ports for this purpose without removing the enclosure cover.

Q: Does adjusting the magnetic trip affect the thermal overload protection in my 400a 3p MCCB Enclosed Molded Case Switch?
A: No. These are independent systems. The thermal (overload) protection is governed by a separate bimetal or electronic thermal memory circuit. In XiFa electronic-trip models, both thermal and magnetic settings are independently adjustable. Raising the magnetic threshold does not change the long-time pickup (usually fixed at 1.0× In) or the trip time curve for overloads. This independence allows you to fine-tune short-circuit protection without compromising cable or equipment thermal withstand ratings.

Why Choose XiFa for Your Enclosed MCCB Needs?

XiFa designs its 400a 3p MCCB Enclosed Molded Case Switch with dual adjustment mechanisms—a rotary dial for magnetic pickup and a separate dial for short-time delay (where applicable). The enclosure features a transparent window over the dial area, enabling visual confirmation of settings without opening the door. All adjustment components are rated for 10,000 mechanical operations, ensuring longevity even with frequent setting changes during commissioning.

Moreover, XiFa provides a factory calibration certificate with each unit, documenting the as-shipped magnetic trip value. For projects requiring strict coordination studies, the adjustment range is linear and repeatable, reducing the need for costly coordination software recalibration.

Final Recommendation

If your application involves varying load profiles, motor starting, or generator paralleling, the adjustable magnetic trip feature is not a luxury—it is a necessity. A fixed-trip 400a 3p MCCB Enclosed Molded Case Switch may force you to oversize conductors or accept nuisance trips. XiFa adjustable units resolve this with precision and reliability, backed by a 5-year warranty and global technical support.

Ready to specify the right adjustable trip setting for your project? Our engineering team provides free coordination studies and setting recommendations based on your actual load data. Contact XiFa today via our website or call your regional distributor—we respond within 4 business hours with customized schematics and quotation. Ensure your power system is both safe and optimized. Reach out now.
