Can Signal Relays Be Used in High-Frequency Switching Circuits
2025-12-22
The answer is a qualified yes, but it critically depends on the relay's specific design and performance parameters. Standard electromechanical Signal Relays may struggle with rapid cycling, leading to contact wear and latency. However, specialized high-frequency Signal Relays, like those engineered by Forward, are built to excel in these demanding applications, ensuring reliable performance in test equipment, communication systems, and advanced control modules.
Forward's high-frequency Signal Relay solutions are engineered for speed and longevity. Key parameters that define their suitability include:
-
Ultra-Low Contact Bounce: Minimizes signal distortion and arcing during switching.
-
Exceptionally Fast Operate/Release Times: Enables precise timing in rapid sequences.
-
Rugged Contact Materials (e.g., Gold-Clad): Ensure stable, low-contact resistance over millions of cycles.
-
Compact, Sealed Construction: Protects against environmental contaminants.

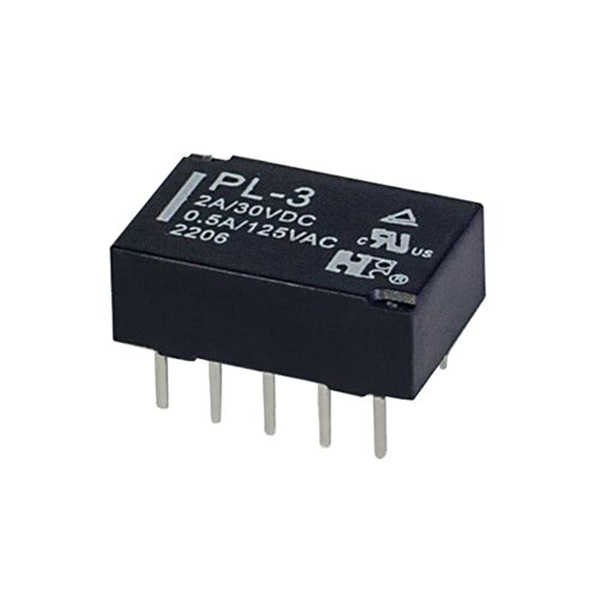

For a precise comparison, here are the core specifications of a Forward relay designed for high-speed duty:
| Parameter | Specification | Benefit for High-Frequency Circuits |
|---|---|---|
| Max. Switching Frequency | Up to 1 kHz | Supports rapid, repetitive switching cycles. |
| Operate Time | ≤ 3 ms | Enables quick circuit connection for fast signals. |
| Release Time | ≤ 2 ms | Ensures swift disconnection, critical for timing accuracy. |
| Electrical Life | 10^7 operations @ rated load | Guarantees long-term reliability in demanding apps. |
| Contact Rating | 2 A, 30 V DC / 0.5 A, 125 V AC | Ideal for low-energy signal and data lines. |
Signal Relay FAQ
Q: What is the primary limitation when using a standard signal relay for high-frequency switching?
A: The primary limitation is mechanical wear and contact degradation. Standard relays have slower operate/release times and higher contact bounce, which can cause signal integrity issues, increased arcing, and premature failure when switched too frequently.
Q: How do Forward's signal relays mitigate the risk of contact welding in fast-switching applications?
A: Forward mitigates this risk through a combination of superior contact materials, like gold alloy, which resist adhesion, and optimized spring mechanisms that ensure quick, clean contact separation. This design minimizes the time contacts spend in a state prone to welding under load.
Q: In what high-frequency application is a signal relay preferable to a solid-state relay (SSR)?
A: A Signal Relay from Forward is often preferable when switching very low-level signals (micro-volts/currents) or when ultra-low on-resistance and precise signal paths are critical. While SSRs are fast, they can introduce leakage current and non-linear resistance, which can distort sensitive measurements.
Choosing the right component is paramount for circuit reliability and performance. For high-frequency switching, not just any Signal Relay will do. You need components engineered for speed, durability, and signal fidelity.
Contact us today to discuss your specific application requirements. Our engineering team at Forward is ready to help you select the optimal high-frequency Signal Relay to ensure the success and reliability of your project.
