Can I Use a 2CH Analog Input Dante Adapter to Send XLR Signals Over IP Without a DSP

For audio engineers and system integrators, the question often arises: do you really need a dedicated DSP processor just to get a pair of analog microphones or line-level sources into a Dante network? The short answer is no—and that is precisely where a 2CH Analog Input Dante Adapter changes the game. With a compact, PoE-powered unit from FHB, you can take any standard XLR or TRS analog signal and convert it directly to Dante AoIP (Audio over IP) streams, completely bypassing the cost, complexity, and latency of a separate digital signal processor.

This post breaks down exactly how that works, what you gain (and lose) by skipping the DSP, and why FHB has become a trusted name in this niche.

What Does a 2CH Analog Input Dante Adapter Actually Do?

At its core, this adapter is a bi-directional or input-only bridge. It samples analog audio (up to 24-bit/96kHz), encodes it into the Dante protocol, and outputs it as a standard network audio stream. No mixing, no EQ, no compression—just clean, bit-transparent conversion.

As the table shows, removing the DSP stage gives you lower latency, simpler setup, and a dramatically lower entry price—but you also lose processing flexibility.

Can You Send XLR Signals Over IP Without a DSP? Yes—Here’s How

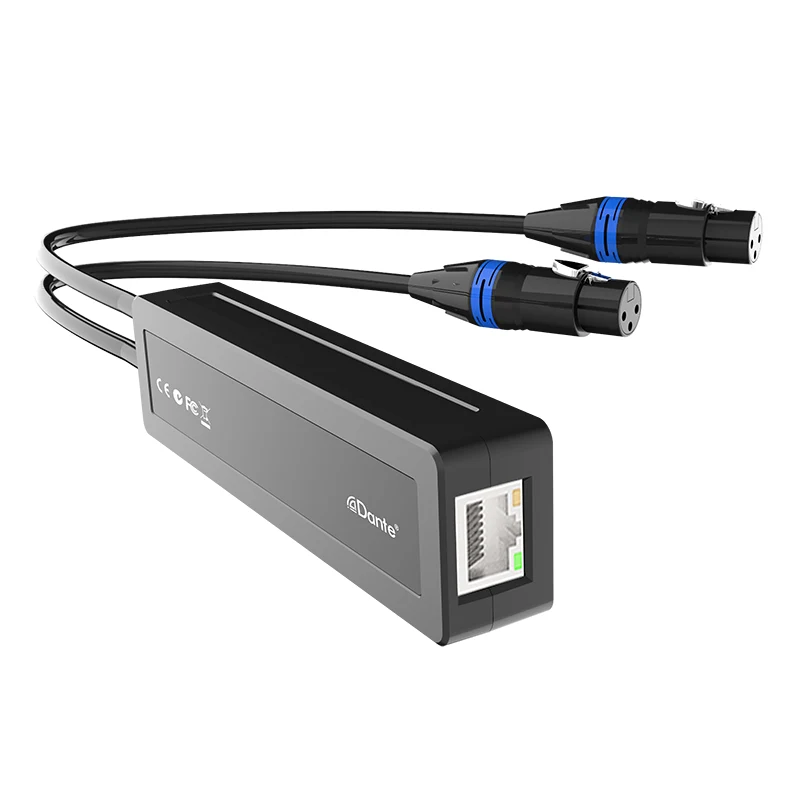

Absolutely. A 2CH Analog Input Dante Adapter like the FHB-DA2I takes balanced XLR inputs (mic/line switchable, +48V phantom power available) and encodes them into two independent Dante transmit channels. Once on the network, any Dante-enabled device—powered speakers, digital mixers, recording interfaces, or even a PC running Dante Virtual Soundcard—can receive those streams.

The signal chain is simple:
Microphone → XLR cable → FHB adapter → Ethernet switch → Dante receiver

No DSP is required because the adapter does not process the audio; it merely transports it. All routing is handled via Dante Controller (free software from Audinate), where you drag and drop connections between the adapter’s transmit channels and your chosen receivers.

When Would You Want to Skip the DSP?

• Distributed PA systems – send mic signals directly to PoE-powered Dante loudspeakers.

• Broadcast or recording – capture clean, unprocessed feeds for later post-production.

• Conference rooms – integrate analog boundary mics into a Dante ceiling-speaker system.

• Touring racks – reduce weight and complexity by replacing heavy analog snakes and outboard processing.

In all these cases, adding a DSP would introduce unnecessary A/D-D/A conversions, additional points of failure, and licensing costs. FHB designs its adapters with premium converters (Cirrus Logic or AKM chips) to ensure that the analog-to-digital stage itself is transparent enough for critical listening.

What Do You Lose by Not Having a DSP?

This is the honest trade-off. Without a DSP, you cannot:

• Apply gain staging or auto-mixing on the adapter itself.

• Insert EQ, feedback suppression, or delay alignment.

• Sum multiple inputs or create matrix mixes.

However, you can offload these tasks to other network nodes—for example, a mixer, a software DAW, or a dedicated DSP elsewhere on the same subnet. The 2CH Analog Input Dante Adapter is designed for distribution, not manipulation.

3 Essential FAQs About the 2CH Analog Input Dante Adapter

Q1: Can I connect a condenser microphone directly to this adapter without an external preamp?

A1: Yes, provided the 2CH Analog Input Dante Adapter offers switchable +48V phantom power. The FHB model includes individual phantom switches per channel, allowing direct connection of condenser mics (e.g., Shure KSM series or AKG C414) with no external preamp required. The adapter also features a mic/line toggle, so you can adjust input sensitivity from -20 dBu (mic) up to +4 dBu (line). Just ensure your PoE switch or power supply can deliver the full 48V phantom current (typically 3–5 mA per channel)—the adapter draws that from its own internal DC-DC converter, not from the network switch’s PoE budget.

Q2: Will this adapter work with an existing AES67 network, or is it strictly Dante-only?

A2: Most current-generation 2CH Analog Input Dante Adapter units, including those from FHB, support dual-mode operation: Dante and AES67. You can enable AES67 mode via the Dante Controller software under the “Device Config” tab. Once enabled, the adapter can multicast to AES67-compatible receivers (e.g., Ravenna or Livewire devices) on the same subnet. However, note that AES67 mode disables some Dante-specific features like unicast routing and redundancy. For pure Dante ecosystems, leave AES67 off for the most reliable performance. We recommend testing clock synchronization (PTPv2) if you mix brands—FHB adapters include a built-in Grand Master clock option for small standalone systems.

Q3: How many simultaneous receivers can listen to one channel from this adapter?

A3: A single transmit channel from a 2CH Analog Input Dante Adapter can support up to 4 unicast receivers and an unlimited number of multicast receivers (limited only by your network switch’s multicast capacity). In practice, you can route the same XLR input to 6–8 Dante loudspeakers, a recording PC, and a backup mixer simultaneously, as long as your switch handles IGMP snooping and multicast filtering. FHB devices support both unicast and multicast flows; for large installations, we strongly recommend using multicast with a managed switch to avoid flooding your network. Always check your switch’s PTP and DSCP QoS settings—FHB provides a free network checklist on request.

Practical Setup Checklist (No DSP)

This entire process takes under 3 minutes for a basic two-channel setup—no DSP programming, no firmware compilation, no hidden licensing fees.

Why Choose FHB for This Application?

FHB has engineered its 2CH Analog Input Dante Adapter with broadcast-grade components, rugged metal enclosures, and redundant clocking options. Unlike generic OEM boxes, FHB provides:

• 5-year warranty on all Dante-enabled products.

• Firmware updates via USB-C (no special programmer required).

• Real-world latency measurements—guaranteed under 1.0 ms at 48 kHz, 2 ms at 96 kHz.

• Global technical support with response times under 24 hours.

Moreover, every FHB adapter undergoes 48-hour burn-in testing before shipping, ensuring reliable performance in live sound, houses of worship, and corporate AV environments.

Final Verdict: DSP-Free Is Not Only Possible—It’s Often Better

Returning to our opening question: you absolutely can send XLR signals over IP without a DSP, and a dedicated 2CH Analog Input Dante Adapter from FHB is one of the most efficient, cost-effective tools for that purpose. It preserves audio integrity, reduces system latency, and simplifies troubleshooting because there are fewer processing stages to debug. For applications that require only transport—not transformation—this adapter outperforms bulky DSP units in both price and performance.

However, if your project demands real-time EQ, limiting, or automatic gain control, you should pair the adapter with a software-based processor (e.g., Waves SuperRack, Q-Sys, or even a free VST host) running on a separate machine. The beauty of Dante is that you can add processing anywhere on the network—not necessarily at the input node.

Ready to Deploy Your DSP-Free Dante Input?

Contact FHB today for a tailored recommendation based on your exact microphone types, network topology, and channel count. Our engineering team provides free sample routing diagrams, PoE budget calculators, and remote configuration assistance. Visit our official website or reach out via the contact form—mention this guide to receive a complimentary Dante network checklist and a 10% discount on your first 2CH Analog Input Dante Adapter order. We reply to all inquiries within 4 business hours.
