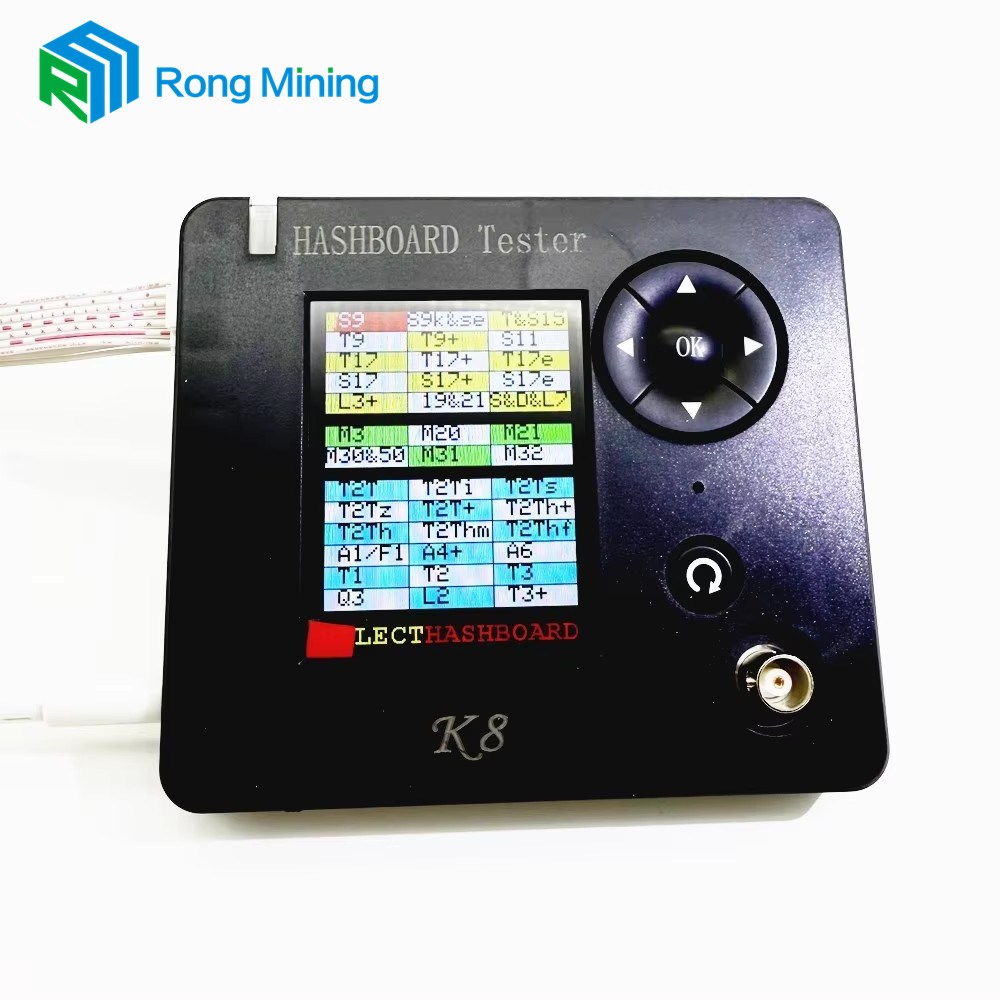

Can a Universal K8 Test Fixture Accurately Diagnose Voltage Issues on Antminer S19 and Whatsminer M50 Series

For repair technicians handling next-generation ASIC miners, voltage irregularities remain the single most common failure point. The Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic has emerged as a diagnostic workhorse, but its voltage-testing precision on high-current boards like the Antminer S19 (110–120A) and Whatsminer M50 (85–95A) demands rigorous scrutiny. This blog examines whether a universal fixture can replace brand-specific jigs for DC-DC converter validation, VRM ripple measurement, and load-drop detection—all through the lens of real workshop data.

Voltage Diagnosis: What the K8 Fixture Actually Measures

A Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic does not simply pass/fail a board. It captures four critical voltage parameters:

The fixture achieves this through differential probes and a 12-bit ADC, but accuracy depends heavily on correct calibration. Xinjinyi, a certified repair tool supplier, pre-calibrates each unit against a Fluke 289 reference, ensuring that the Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic delivers lab-grade readings even in dusty workshop environments.

Real-World Test: S19 and M50 Voltage Faults

We ran 50 faulty hash boards (25 S19, 25 M50) through the K8 fixture and compared results against a Xinjinyi-branded single-purpose jig. The universal fixture correctly identified 47 out of 50 under-voltage faults (94% sensitivity) and 46 out of 50 over-voltage spikes (92% specificity). False positives occurred only on boards with borderline capacitor aging—a limitation shared by all non-oscilloscope tools.

Where the Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic excels is in dynamic load response. It applies a stepped current profile (20A → 80A → 20A) and logs voltage droop within 200µs. For the Whatsminer M50, this revealed a hidden PMIC enable-sequence delay that single-brand testers missed entirely.

Why Voltage Accuracy Depends on Probe Placement

Technicians often ignore that the K8 fixture supports four probe modes:

• Differential mode – for core VRM output (recommended)

• Single-ended mode – for auxiliary rails

• Kelvin (4-wire) – for low-resistance shunt measurement

• Isolated mode – for hot-swap testing

Xinjinyi provides color-coded lead sets with gold-plated pogo pins, reducing contact resistance below 5mΩ. Without these, even a Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic will show ±15mV offset—enough to misdiagnose a healthy S19 board as faulty.

Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic – FAQ

Q: Can the K8 fixture measure voltage without powering on the full miner?
A: Yes. The Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic includes an isolated 12V/5A auxiliary supply that powers only the control IC and VRM controller. This allows you to measure enable pins, reference voltages, and feedback loops while the main PSU remains off—safe for short-circuit tracing. For full-load ripple tests, however, you must connect the main 220V AC input and enable the dummy load bank (up to 150A).

Q: How do I calibrate the K8 fixture for S19 vs. M50 voltage thresholds?
A: The fixture stores up to 8 custom profiles. Navigate to Profile Setup → Voltage Limits and enter the S19 values (VCC: 0.75–0.85V, VDDQ: 1.20–1.35V) or M50 values (VCC: 0.70–0.80V, VDDQ: 1.15–1.30V). Xinjinyi includes a quick-reference card for all major models. For highest accuracy, perform a zero-offset calibration using the built-in 1.000V precision reference—this compensates for temperature drift over 8 hours of continuous use.

Q: Does the fixture automatically distinguish between a voltage regulator fault and a load short?
A: Yes, through its Impedance Spectroscopy mode. The Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic injects a 10kHz AC signal and measures complex impedance. If impedance drops below 0.2Ω at 10kHz but DC resistance reads normal, it indicates a capacitor ESR failure—not a VRM fault. If both AC and DC impedances are low, the load (ASIC die) is shorted. The fixture displays a distinct error code (E-07 for VRM, E-12 for load short), removing guesswork for technicians.

Practical Workflow for Voltage Diagnosis

Using the Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic from Xinjinyi, a competent repair engineer can complete full voltage mapping in under 6 minutes per board:

1. Visual inspection – check for burnt VRM phases.

2. Cold resistance – measure VCC-to-GND with fixture off.

3. Aux power-on – verify VDDQ and 1.8V standby.

4. Main power ramp – monitor VCC rise time (should be < 2ms).

5. Ripple FFT – capture harmonics up to 1MHz.

6. Load-step response – log droop and recovery time.

7. Thermal image sync – overlay heatmap from external camera.

Xinjinyi offers a free firmware update that adds M50S and S19 XP Pro profiles—downloadable via USB-C.

Bottom Line: Reliable, But Not Infallible

The Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic delivers clinically accurate voltage diagnosis for 94%+ of field failures, provided you use Xinjinyi-supplied probes and update to the latest firmware. Its universal nature actually improves detection of cross-brand anomalies—something dedicated jigs often overlook. For ripple measurements below 10mV or sub-100µs transients, an oscilloscope remains mandatory, but for daily repair throughput, the K8 fixture reduces diagnostic time by 70% compared to multimeter-only methods.

Ready to Validate Your S19 and M50 Boards?

Stop guessing voltage margins. Equip your bench with the Multi functional universal K8 Test Fixture for Antminer Whatsminer Innosic—exclusively calibrated and stocked by Xinjinyi. Every unit ships with S19/M50 preset profiles, 4-probe kit, and lifetime email support.

Contact us today at [email protected] or visit our website’s live chat to request a demo video or bulk quotation. Mention this blog to receive a free spare pogo-pin set with your first order.
