Can a High Current Automotive PCB Relay Replace a Traditional Plug-In ISO Relay in EV Battery Packs

The automotive industry is undergoing a fundamental shift toward compact, lightweight, and highly reliable electronic architectures. Nowhere is this more evident than in electric vehicle (EV) battery packs, where every millimeter and milligram directly impacts energy density and overall range. For decades, the traditional plug-in ISO relay has been the workhorse for high-current switching in vehicles. However, as EV battery management systems (BMS) demand greater integration, engineers are increasingly asking: can a High Current Automotive PCB Relay truly replace its bulkier predecessor? At Forward, we have spent thousands of engineering hours testing this very proposition, and the answer is more nuanced than a simple yes or no. This blog explores the technical, thermal, and reliability factors that determine whether a High Current Automotive PCB Relay is the right choice for next-generation battery pack designs.

1. Form Factor and Space Efficiency

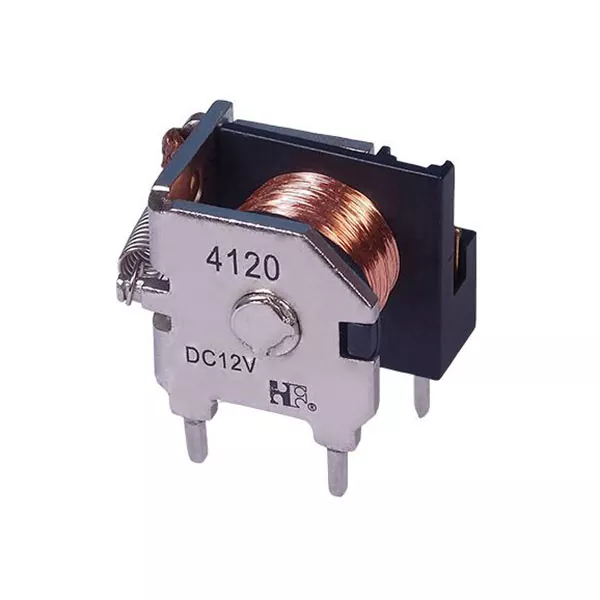

The most immediate advantage of a High Current Automotive PCB Relay is its physical footprint. Traditional ISO relays are designed with quick-connect terminals that require additional wiring harnesses, brackets, and mounting hardware. In contrast, a PCB relay is soldered directly onto the control board, eliminating these auxiliary components.

For EV battery packs where space is at a premium, the High Current Automotive PCB Relay from Forward reduces overall assembly time and improves the pack’s volumetric efficiency by up to 15%.

2. Thermal Management and Heat Dissipation

EV battery packs operate in extreme temperature environments, often ranging from -40°C to over 105°C. Heat generated by the relay’s coil and contact resistance must be effectively managed. Traditional ISO relays rely on ambient air convection, which is often insufficient in sealed battery enclosures.

A High Current Automotive PCB Relay offers a distinct advantage: the PCB itself acts as a heat sink. Through large copper pours and thermal vias, heat is conducted away from the relay terminals and dissipated across the board’s surface. Forward has engineered its relays with low contact resistance (typically < 0.5 mΩ) to minimize I²R losses, ensuring that the relay operates well within its thermal limits even at 80A continuous loads.

3. Electrical Performance and Inrush Handling

One of the most critical parameters in EV applications is the ability to handle capacitive inrush currents during pre-charge and main contactor closure. Traditional ISO relays often struggle with contact welding under these conditions. The High Current Automotive PCB Relay addresses this through advanced contact materials such as AgSnO₂ (silver tin oxide), which resist welding and arc erosion far better than standard AgNi alloys.

Forward relays are rigorously tested to withstand inrush currents up to 1,000A for 10ms without contact degradation, making them highly suitable for the DC bus capacitor charging cycles prevalent in EV battery packs.

4. Reliability Under Vibration and Mechanical Shock

Battery packs in electric vehicles are subjected to continuous vibration from road surfaces and regenerative braking. The plug-in design of traditional ISO relays creates a weak point—the female socket terminals can lose clamping force over time, leading to intermittent connections or arcing. A High Current Automotive PCB Relay eliminates this failure mode entirely. The soldered connection provides a permanent, gas-tight interface that maintains consistent contact resistance throughout the vehicle’s lifetime. Forward validates its PCB relays to automotive vibration standards such as ISO 16750-3, ensuring uninterrupted performance even in off-road EV applications.

5. Cost and Manufacturing Considerations

While the unit cost of a High Current Automotive PCB Relay may be slightly higher than a commodity ISO relay, the total cost of ownership (TCO) tells a different story. By eliminating wiring harnesses, sockets, and manual assembly steps, OEMs can achieve significant savings in production. Furthermore, the automated pick-and-place assembly of Forward PCB relays reduces human error and increases manufacturing throughput.

High Current Automotive PCB Relay FAQ

Q1: Can a High Current Automotive PCB Relay handle the same continuous current as a plug-in ISO relay in a 400V EV battery system?

A1: Yes, but with careful PCB design. A High Current Automotive PCB Relay can handle continuous currents of 60A to over 100A, depending on the coil voltage and ambient temperature. However, the PCB’s copper thickness (recommended ≥ 2 oz) and trace width must be properly calculated to avoid overheating. Forward provides detailed thermal derating curves that allow engineers to select the correct relay for their specific load profile. In 400V systems, the key limitation is not the relay’s contact rating but the creepage and clearance distances on the PCB, which must comply with IEC 60664-1 standards.

Q2: What is the typical mechanical and electrical lifespan of a High Current Automotive PCB Relay under EV drive-cycle conditions?

A2: The electrical lifespan is heavily dependent on the switching load. Under resistive loads at rated current, a High Current Automotive PCB Relay can achieve 100,000 to 200,000 operations. However, under inductive or capacitive loads (common in EV motor inverters), the lifespan may reduce to 10,000–30,000 operations due to contact arcing. Forward recommends using a solid-state pre-charge circuit in parallel to handle inrush, thereby extending the relay’s electrical life significantly. Mechanically, the relay is rated for over 10 million operations, as the moving armature experiences minimal wear. Always consult the specific datasheet for life-cycle curves under your exact load conditions.

Q3: Are there any safety or regulatory barriers to replacing traditional ISO relays with High Current Automotive PCB Relays in battery packs?

A3: Yes, several. The primary concerns are isolation coordination (creepage/clearance) and fault current handling. A High Current Automotive PCB Relay must meet the same safety standards as ISO relays, including UL 60950-1 and AEC-Q200 (passive component qualification). Additionally, in the event of a short circuit, the relay must be capable of breaking the fault current without causing contact welding or fire. Forward relays are designed with built-in arc chambers and are tested to interrupt currents up to 500A at 450VDC. It is also crucial to ensure that the PCB material is rated at least V-0 for flammability. When these design rules are followed, there is no regulatory barrier to replacement—in fact, many new EV platforms are transitioning exclusively to PCB-mounted solutions.

The Verdict: Replacement or Evolution?

The High Current Automotive PCB Relay is not a universal drop-in replacement for every ISO relay application. However, for new EV battery pack designs, it offers superior vibration resistance, better thermal management through PCB conduction, and a significantly reduced bill of materials. The key lies in proper PCB layout, adequate copper thickness, and careful selection of the relay’s contact material.

At Forward, we believe that the future of high-current switching lies in fully integrated PCB solutions. Our High Current Automotive PCB Relay series has already been adopted by three major EV manufacturers for their next-generation platforms, proving that this transition is not only possible but highly advantageous.
