Can a Distribution Board Isolator Handle High Current Loads Effectively

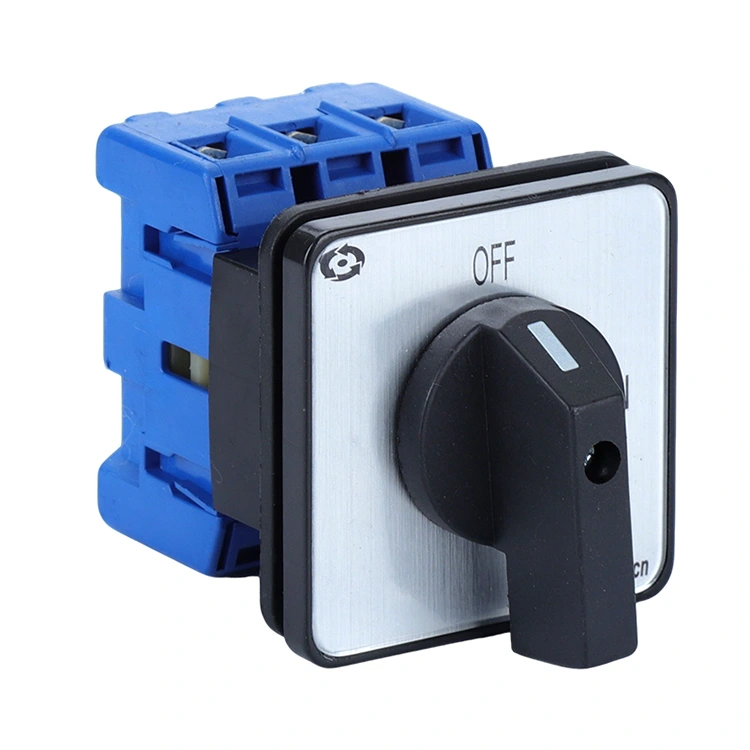

When managing electrical safety in residential, commercial, or industrial settings, the reliability of your switchgear is paramount. A common concern among engineers and facility managers is whether a Distribution Board Isolator Switch can manage high current loads without performance degradation. At YAMING, we specialize in manufacturing robust electrical components designed to meet these exacting demands. The short answer is yes, but only if the unit is correctly specified, manufactured to high standards, and properly installed.

To understand the capability of a Distribution Board Isolator Switch, it is essential to differentiate it from other protective devices. Unlike a circuit breaker, which protects against overloads and short circuits, an isolator’s primary function is to ensure a section of the circuit is completely de-energized for maintenance. Its ability to handle high current loads depends on factors like contact resistance, material quality, and thermal management.

Key Factors in High Current Handling

To ensure that your Distribution Board Isolator can handle high currents effectively, you must consider the following technical specifications provided by the manufacturer:

• Rated Operational Current (Ie): This is the current the isolator can carry continuously. YAMING isolators are rated for various amperages to match specific load requirements.

• Short-Time Withstand Current: This indicates the isolator's ability to withstand high fault currents for a short period without damage.

• Contact Material: High-grade silver alloy or copper contacts ensure low resistance and prevent overheating.

• Thermal Dissipation: Effective heat sink design prevents the unit from degrading under continuous full load.

Performance Comparison: Standard vs. High-Capacity Isolators

Choosing the right unit is critical. Below is a comparison of features based on YAMING’s product range to illustrate how specifications affect performance.

Common Questions About High Current Isolators

To further clarify the capabilities of this critical device, here are some frequently asked questions regarding the Distribution Board Isolator Switch.

What happens if I use an isolator rated for a lower current than my load demands?

Using an isolator with a current rating lower than your actual load is dangerous and strictly prohibited by electrical standards. The unit would overheat significantly, leading to contact welding, insulation breakdown, and potentially an electrical fire. You must always ensure the rated current of the Distribution Board Isolator Switch exceeds the maximum load current of the circuit. For high-demand environments, YAMING recommends selecting a unit with a safety margin of 20%.

Can a Distribution Board Isolator Switch break the circuit while it is under full load?

While most modern isolators, particularly those from reputable brands like YAMING, are designed with some load-break capacity (usually indicated by a utilization category like AC-22 or AC-23), their primary function is isolation, not interruption. They are intended to be operated only when the circuit has been de-energized by a circuit breaker. Frequent switching under high load can erode the contacts over time.

How does heat affect the performance of a high-current Distribution Board Isolator?

Heat is the primary enemy of electrical conductivity. When a Distribution Board Isolator handles high current continuously, heat is generated at the contact points and terminals. If this heat is not managed, it increases resistance, which in turn creates more heat—a phenomenon known as thermal runaway. High-quality isolators, like those in the YAMING range, utilize robust terminal clamps and silver-plated contacts to maintain low resistance and efficiently dissipate heat, ensuring reliable performance even under continuous high loads.

Conclusion

Selecting the correct Distribution Board Isolator Switch is non-negotiable for the safety and efficiency of your electrical installation. By understanding the technical ratings and choosing a high-quality product designed for your specific load requirements, you can ensure safe isolation and long-term durability. YAMING is committed to providing electrical solutions that combine safety with high performance.

For expert advice on selecting the right isolator for your high-current application or to request a quote for your next project, please Contact Us today.
