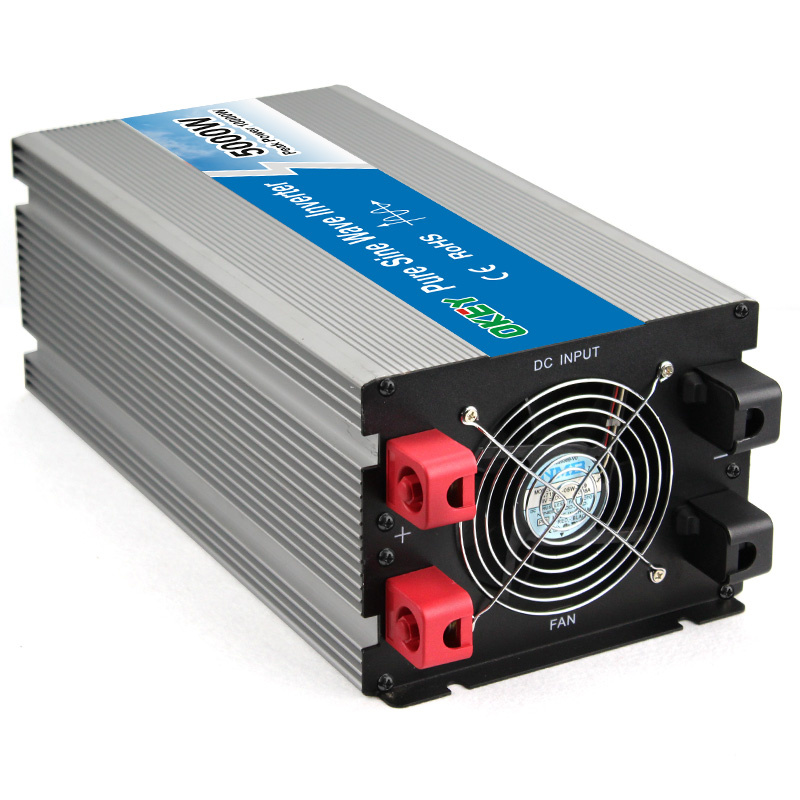

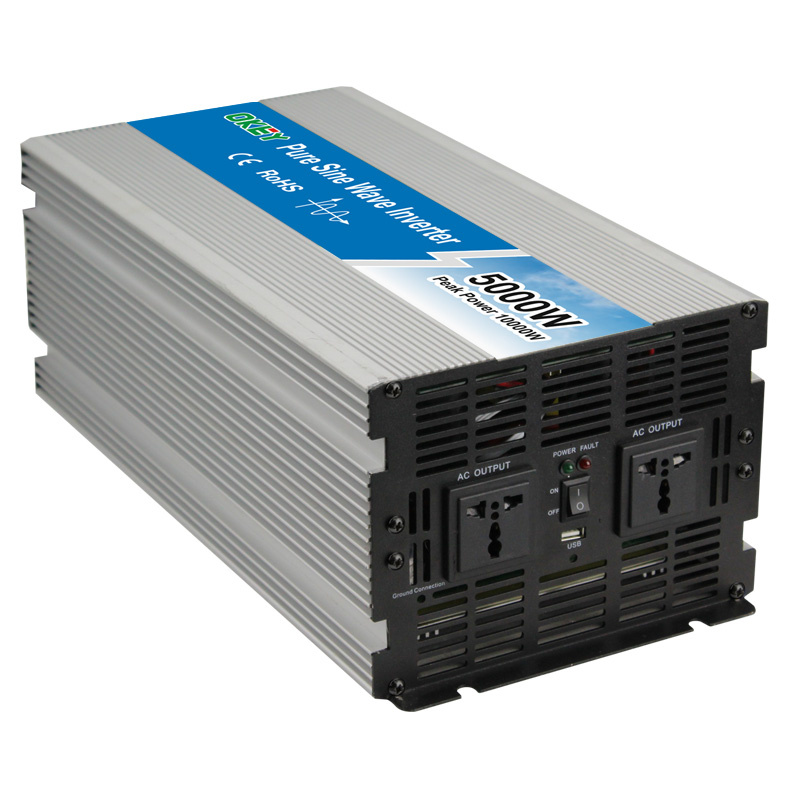

5000W off Grid Pure Sine Wave Solar Inverter Electric Inverter

5000W off Grid Pure Sine Wave Solar Inverter Opip-5000W-12V electric inverterProduct Features :High transform efficiency ,fast start;Pure sine wave output waveform;Softstart function;Strong adaptability and stability ;With automatic over-current and output short circuit protection to avoid damage th......

Send Inquiry

Product Description

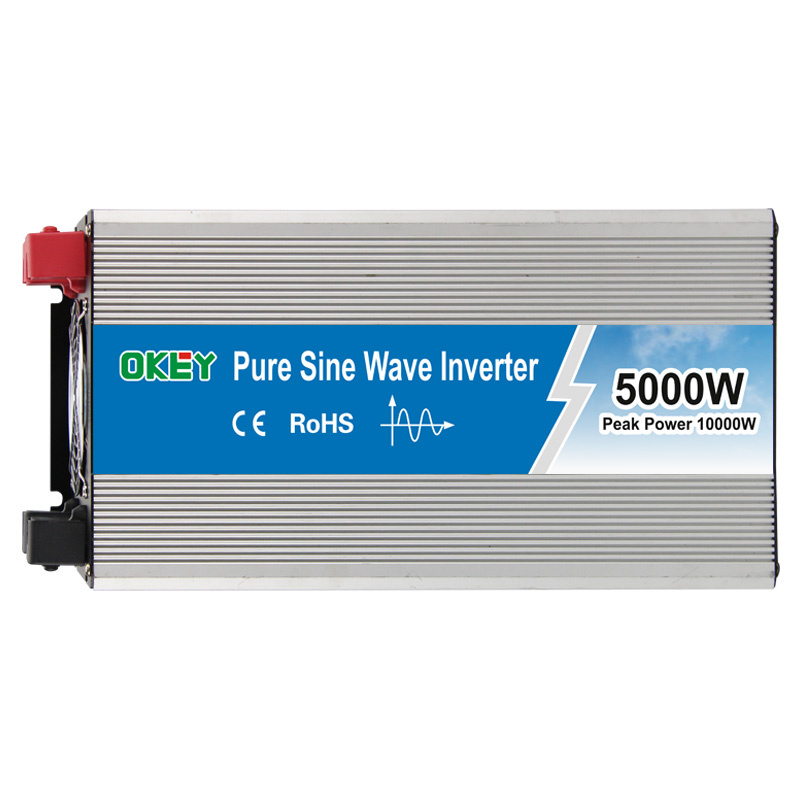

5000W off Grid Pure Sine Wave Solar Inverter Opip-5000W-12V electric inverter

Product Features :
High transform efficiency ,fast start;
Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability ;
With automatic over-current and output short circuit protection to avoid damage the equipment;
Temperature controlled fan,safe&efficient;
Safe and reliable with built in fuse.
1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of sockets are available).
Model	OPIP-5K-1	OPIP-5K-1	OPIP-5K-1	OPIP-5K-2	OPIP-5K-2	OPIP-5K-2
Rated power	5000W
Peak power	10000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	1.5A	1.1A	0.8A	1.5A	1.1A	0.8A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	455x212x155mm
Packing(mm)	460x245x195mm
Net./gross weight(g)	6045g/6730g
QTY/Ctn	4 Pcs
Meas./Ctn(mm)	500x405x425mm
Gross weight/Ctn(g)	27120g
Warranty	1 years
Configuration	Standard
Cooling method	Intelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
