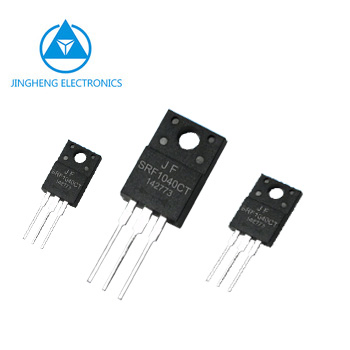

MURF1020CT/MURF1030CT/MURF1040CT/MURF1060CT SUPER FAST RECTIFIER WITH ITO- 220AB CASE
Product DescriptionSUPER FAST RECTIFIER DIODESElectronics ComponentPart Number: MURF1020CT/MURF1030CT/MURF1040CT/MURF1060CT Major Parameter: TypeVRRMIFIR(25ºC)IR(100ºC)IR(125ºC)VFTrrOutlineVAμAuAuAVnS MURF1020CT2002×55.0 500.975 35ITO-220ABMURF1030CT3002&......
Send Inquiry
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: MURF1020CT/MURF1030CT/MURF1040CT/MURF1060CT

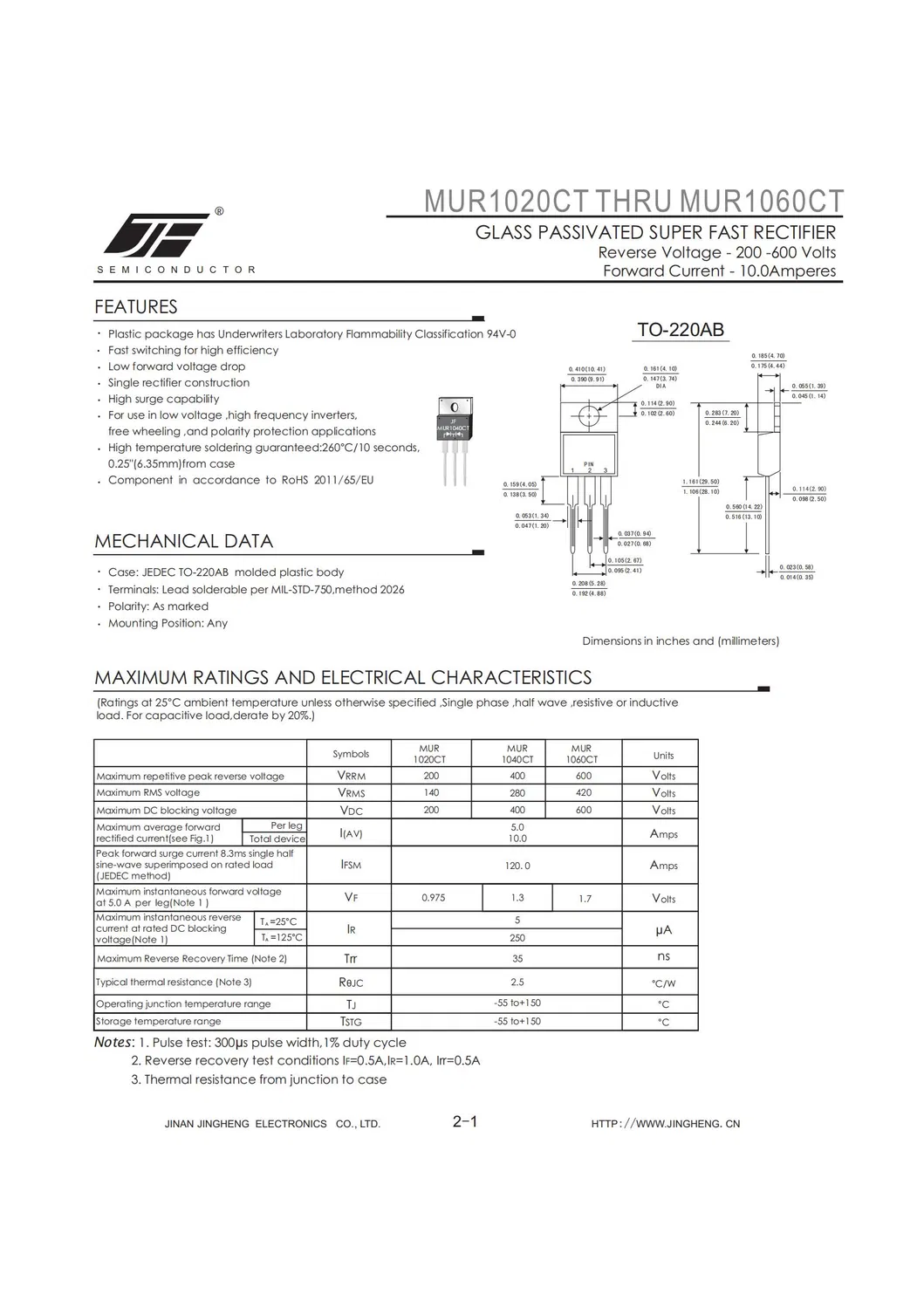

Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MURF1020CT | 200 | 2×5 | 5.0 | 50 | 0.975 | 35 | ITO-220AB | |
| MURF1030CT | 300 | 2×5 | 5.0 | 50 | 1.3 | 35 | ||
| MURF1040CT | 400 | 2×5 | 5.0 | 50 | 1.3 | 35 | ||
| MURF1060CT | 600 | 2×5 | 5.0 | 50 | 1.7 | 35 |
Brand: JF / JH

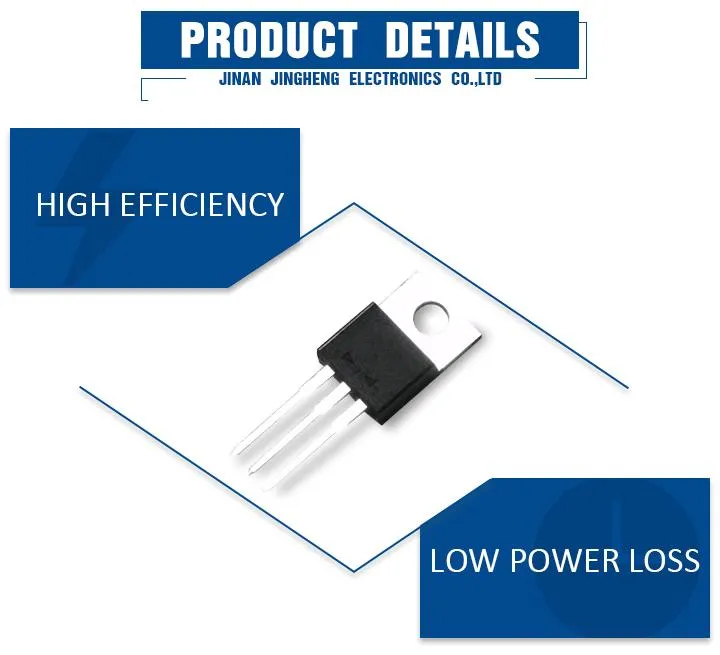

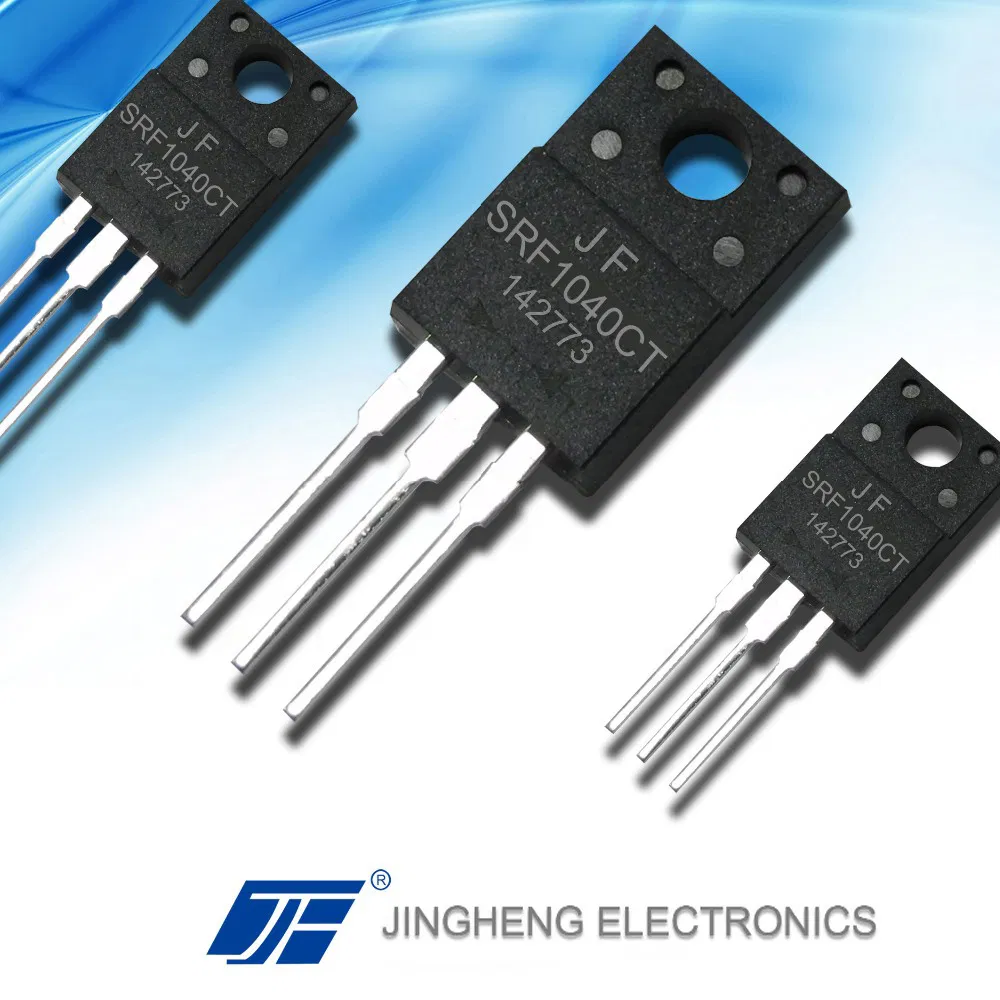

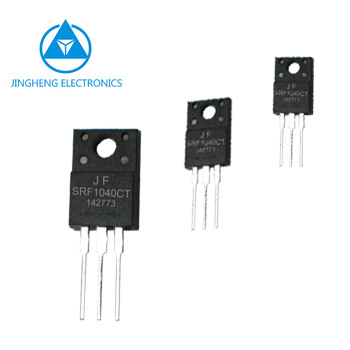

Package: ITO-220AB package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Single rectifier construction
High surge capability
For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
Fast switching for high efficiency
Low forward voltage drop
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
