Power Triode Itk15-2 for Hf Welding Machine
The ITK 15-2 is a RF power triode for using as industrial R.F heating oscillator. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK 15-2 is a wat......
Send Inquiry
Product Description

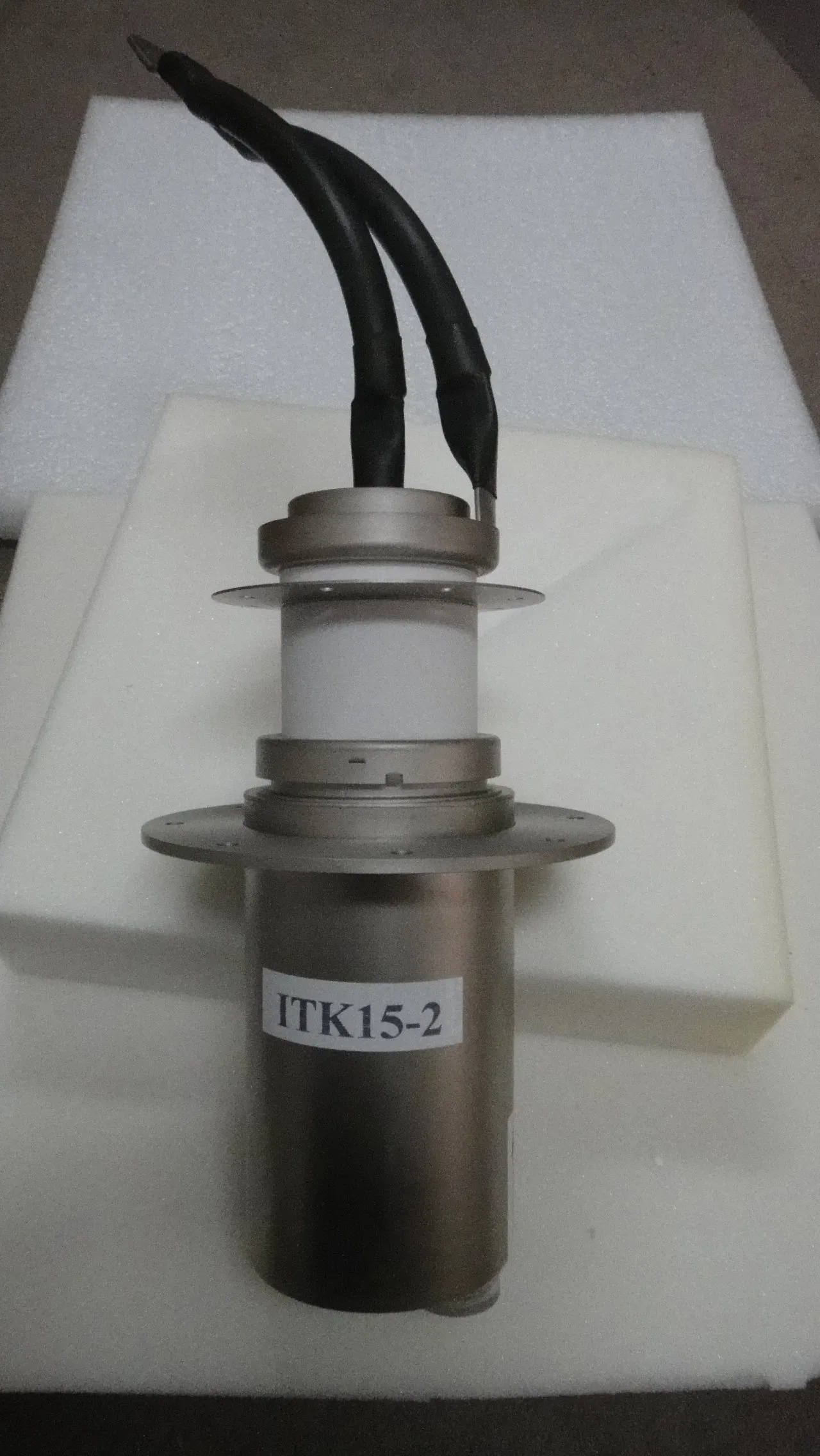

The ITK 15-2 is a RF power triode for using as industrial R.F heating oscillator. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK 15-2 is a water cooled triode. The output power is 63KW in CW mode. The anode dissipation is up to 20kW under frequency 120MHz.
GENERAL CHARACTERISTIC
Electrical
Mechanical
4CX1000A 4CX1500A/B 4CX3000A 4CX5000A
4CX10000D 4CX15000A 4CPX150K 6T51 7T62R
E3062 7T69RB 7T84RB 7T85RB 8T25RA 8T85RB
8T87RB 3CX800A7 3CX1500A7 3CX2500A3/F3/H3
3CX3000A1/A7/F1/F7 3CX4500F3(YU-108)
3CX6000A7(YU-148) 3CX10000A3/A7/H3
3CX15000A3/A7/H3 3CX20000H3 3CW30000H3
3CW40000H3 3CW45000H3
6T51 7T62R(E3062C) 8T25RA8T85RB 8T87RB
7T69RB 7T84RB 7T85RB 3CX800A7 3CX1500A7
3CX2500A3/F3/H33CX3000A3/F7/A7 3CX4500/F3
YU-108 3CX6000A7(YU-148) 3CX10000A3/F3/H3
3CX15000A3/F3/H3 3CX20000H3 3CW30000H3
33CW40000H3 3CX45000H3 BW1184J2 BW1185J2
BW1608F RS3060CJ RS3500C TH382 TH347 TH5-6
ITL5-1 TH6-3A
Microwave CW Magnetrons:
2450MHz 850W 950W 1000W 5KW 10KW,
915MHZ 5KW 30Kw,
At the same time, please be kindly to provide us your type needed, and then we can give you our similar products to replace it!
For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK 15-2 is a water cooled triode. The output power is 63KW in CW mode. The anode dissipation is up to 20kW under frequency 120MHz.
GENERAL CHARACTERISTIC
Electrical
| Filament thoriated tungsten | |
| Filament voltage (+ 5 %, - 10 %) | 7.2 V |
| Filament current | 180 A |
| Surge current | 500 A max. |
| Cold resistance | 5 mΩ |
| Capacitances | |
| grid-anode | 25 pF |
| grid-cathode | 60 pF |
| cathode-anode | 1.4 pF |
| Amplification factor | 25 approx. |
| Transconductance (Va: 4 kV, Ia: 4 A) | 60 mA/V approx |
Mechanical
| Operating position | vertical, anode down |
| Weight | 3.8 kg approx. |
| Height | 296 mm max. |
| Diameter | 155 mm max. |
