Small Wire Connectors 2 Ways
Quick Push in Lever Type Wire Connector LED Lighting ConnectorDescription: Connection Capacity:0.2-4mm²/24-12AWG Stripping Length:11mm-12mmRated Voltage/current:UL 600V; IEC 450V,32AWithstanding Voltage:AC3400V 1minInsulation Resistance:≥DC500V 500MΩOperating Temperature:-......
Send Inquiry
Product Description
Description:

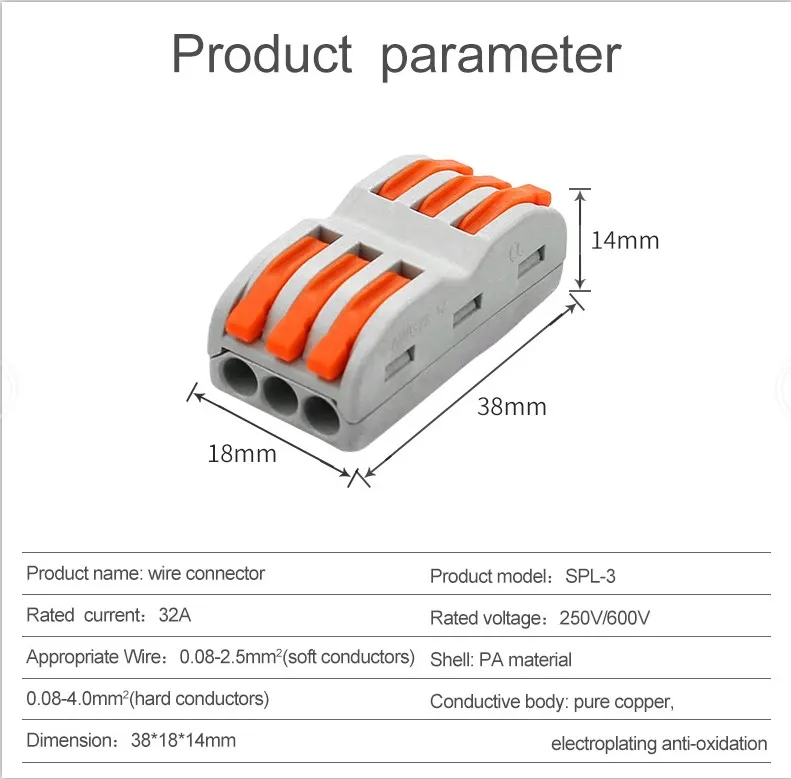

| Connection Capacity: | 0.2-4mm²/24-12AWG |
| Stripping Length: | 11mm-12mm |
| Rated Voltage/current: | UL 600V; IEC 450V,32A |
| Withstanding Voltage: | AC3400V 1min |
| Insulation Resistance: | ≥DC500V 500MΩ |
| Operating Temperature: | -40ºC~+70ºC |
| Position No.: | 2P, 3P, 5P |

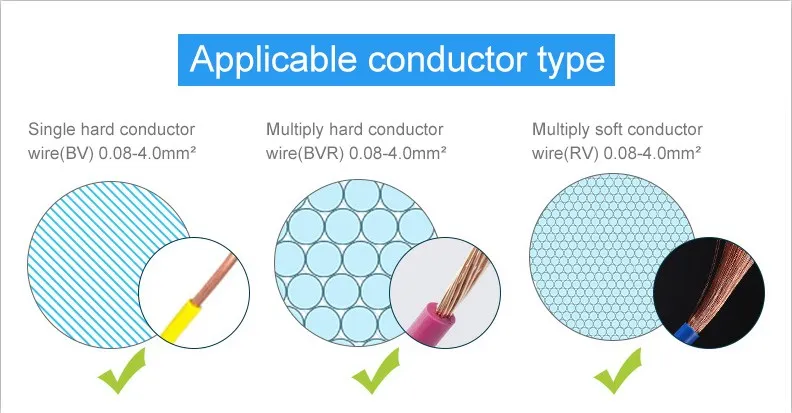

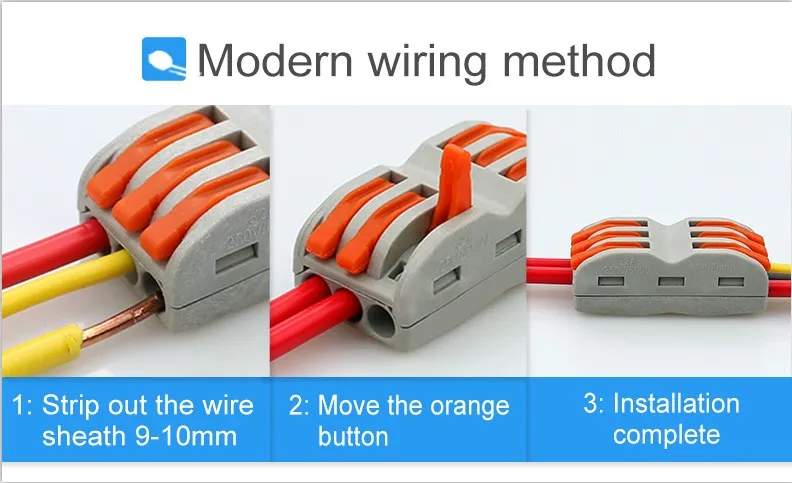

Suitable for the connection of 0.2-4mm² solid wire or stranded wire.
For solid wire, it could be inserted directly without opening the hand lever
For stranded wire, please use screwdriver or electroprobe to open the hand lever first, then to insert the wire and push back the hand lever.

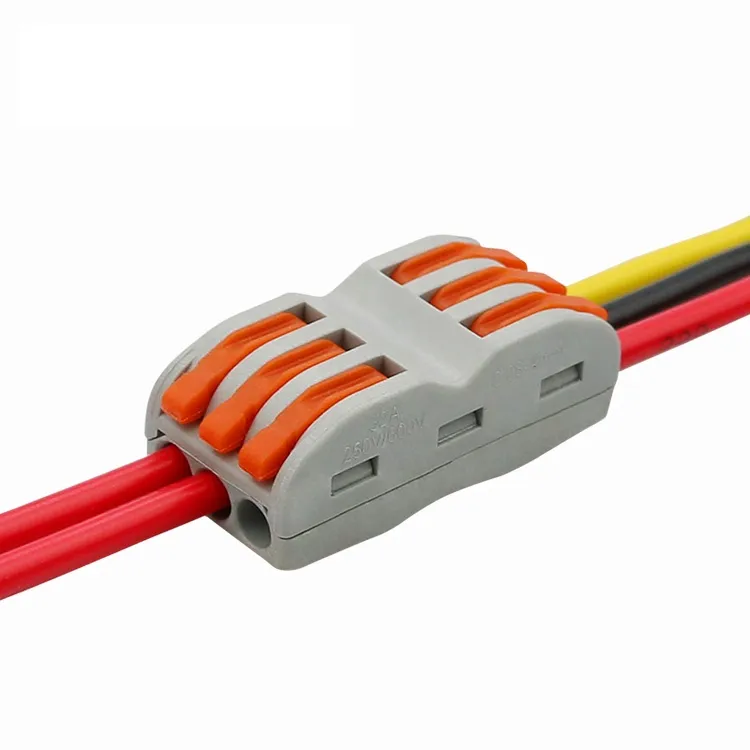

SPL-3 Equivalent wago connector: WAGO 222 series

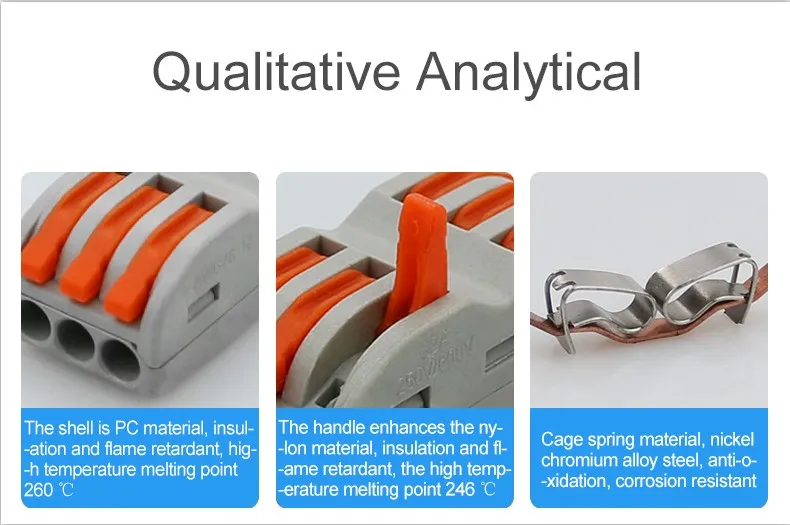

Housing material: thermoplastic, UL 94V-2 flame-retardant
Temperature: 110 degrees Celsius

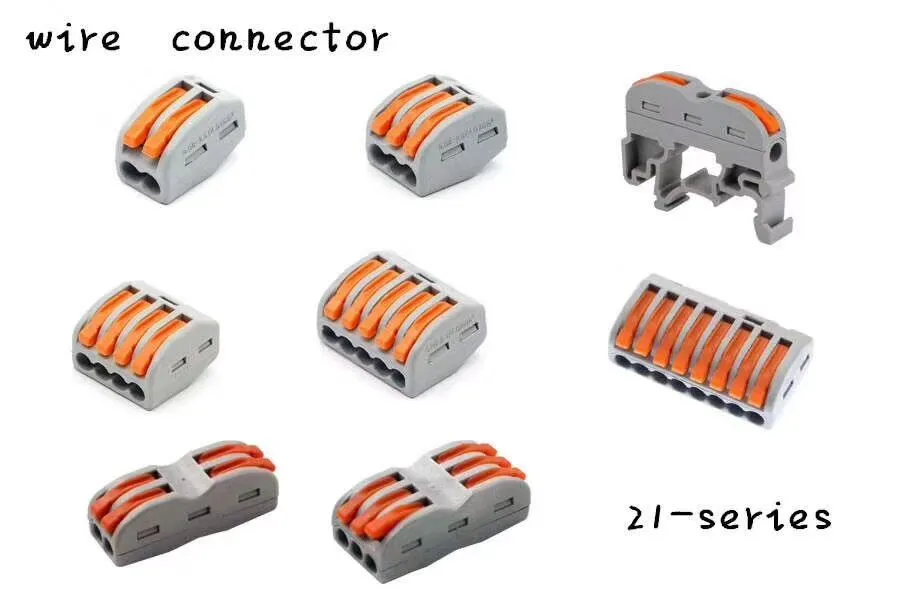

Poles: 2/3/4/5/8poles
International certification: CE
Advantages:
Fast, easy, no-twist necessary, reduces installation time and twist fatigue
Color-coded for easy indentification of different sizes
Compact size; takes up less space
No bare wires to cause shorts

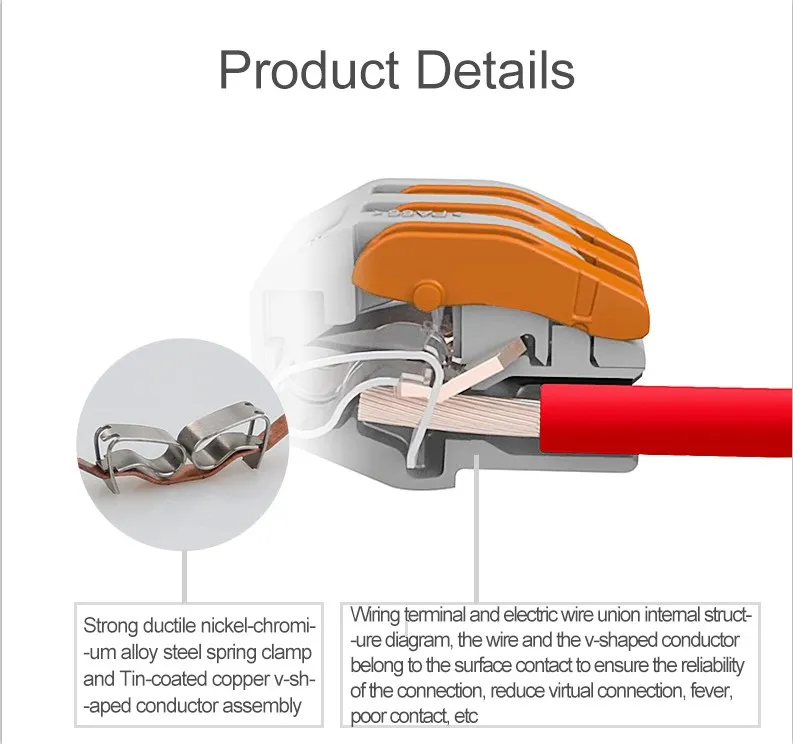

Each wire is individually clamped; provides more secure gripping on conductor
Test point in back; provides easy testing with voltage tester
Built-in wire stripping length gauge
Applications:
OEM lighting manufacturing
Prefabricated wiring systems
Circuit and fixture wiring systems
