Ikari Pin Header PCB Male Automotive Tab Header China Supplier 42 Pin Waterproof Automotive ECU Connector Function of Terminal Plug 936421 -2 Connector
IKARI MECHATRONICS INDSTRIAL (KUNSHAN) CO., LTD.ADD: NO.101 Shunyang Road, Huaqiao Town, Kunshan City, Jiangsu Province, China. MAIN PRODUCTS:* AUTOMOTIVE CONNECTOR ( PRESS FIT PIN CONNECTOR / THROUGH HOLE PIN CONNECTOR / SMT CONNECTOR )* INSERT MOULDING* SENSOR COMPONENTS* STAMPING* NEW ENERGY COMP......
Send Inquiry
Product Description
ADD: NO.101 Shunyang Road, Huaqiao Town, Kunshan City, Jiangsu Province, China.
* AUTOMOTIVE CONNECTOR ( PRESS FIT PIN CONNECTOR / THROUGH HOLE PIN CONNECTOR / SMT CONNECTOR )
* INSERT MOULDING
* SENSOR COMPONENTS
* STAMPING
* NEW ENERGY COMPONENTS
WELCOME TO ON-DEMAND CUSTOME YOUR AUTOMOTIVE CONNECTOR
IKARI Traditionally, through-hole technology (THT) was used to construct the vast majority of PCBs. Through-hole technology involves inserting components with tails or leads into holes drilled in the PCB. The leads can then be soldered onto pads or lands on the underside of the board, usually with a wave solder process
| ERP | Product Group | Product Name | Pin Number | Pin pitch | Pin Width | Bending Angle | PIN Material | Push in Force | Pull out Force | PLATING | HOUSING MATERIAL |

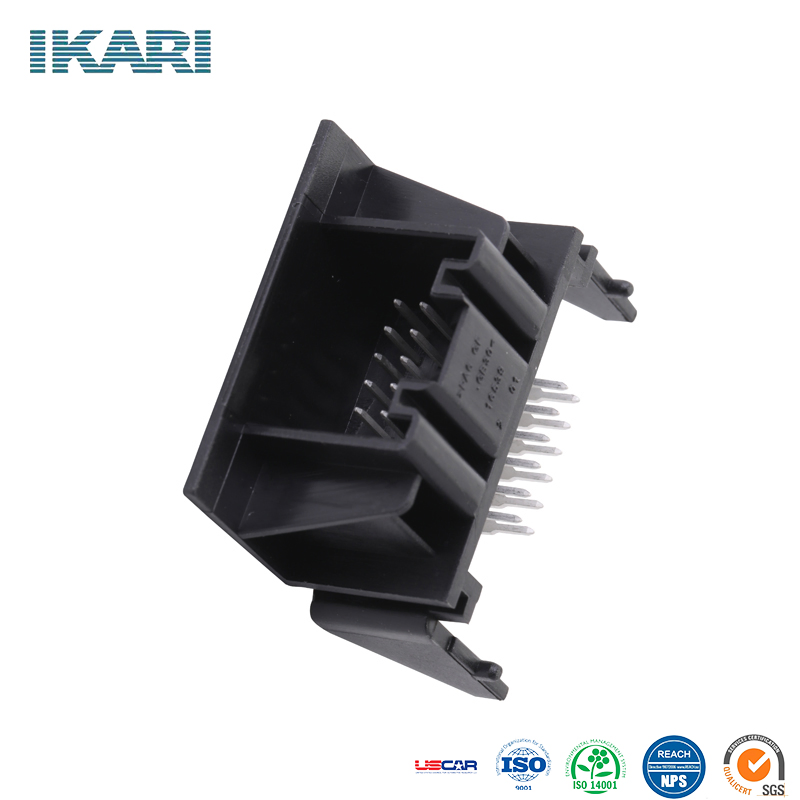

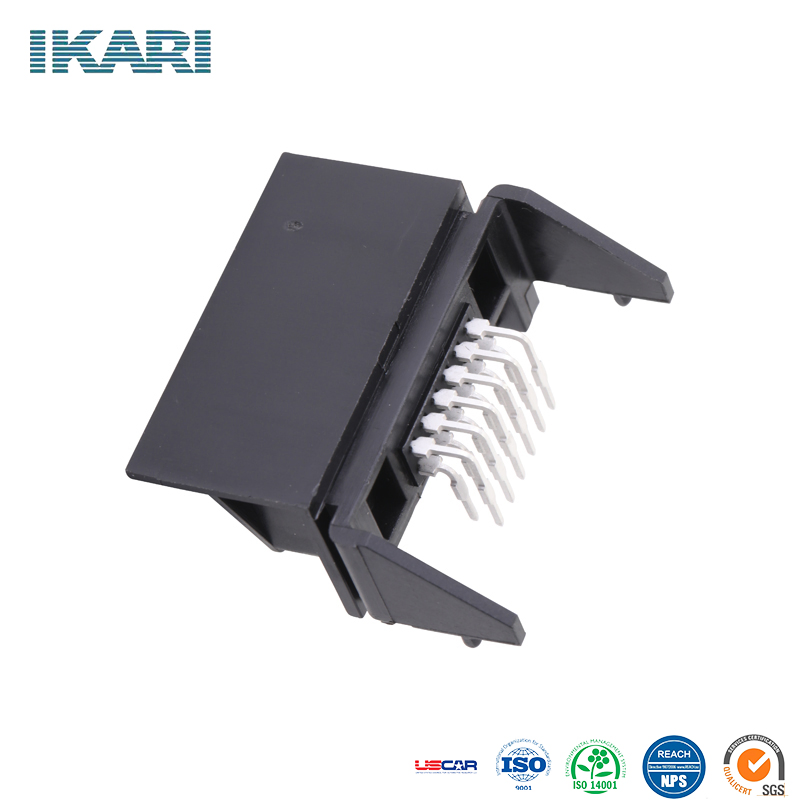

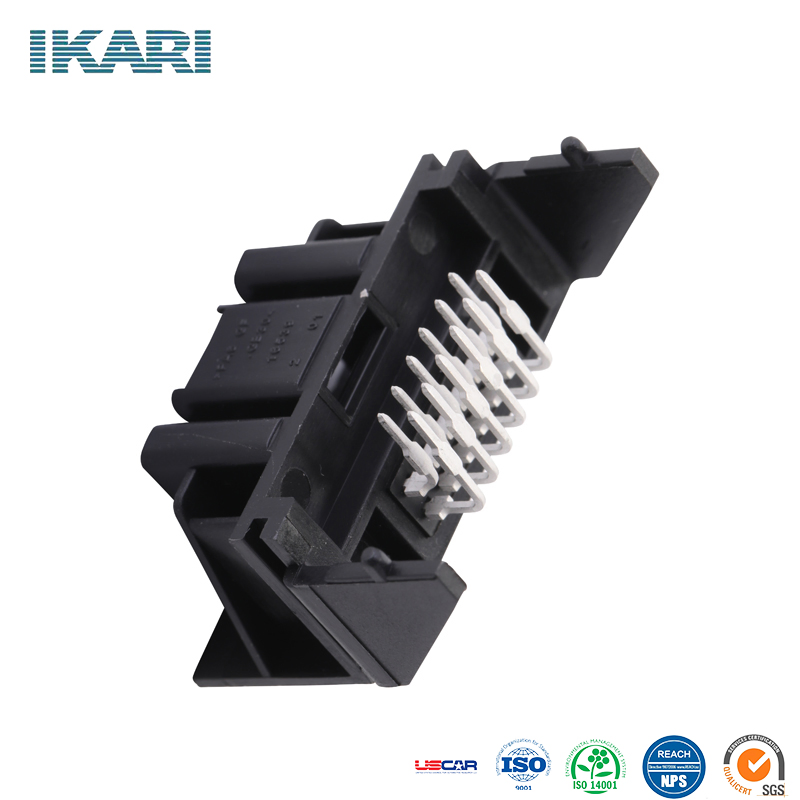

| KH35390 | Connector | Socket Header | 12 | 2.54mm | 0.64mm 2.50mm | 90° bended or 180° straight | CuSn6 | 25N | 25N | Ni 1.0-2.0+ Sn 1.0-2.0 Ni 1.0-3.0+ Sn 1.0-3.0 Ni 1.0-3.0+ Ag 1.5-5.0 Ni 2.0-4.0+ Sn 3.0-6.0 | PBT GF20 PBT GF30 PA6 GF30 PA66 GF15 PPA GF30 ABS PC T65 |
IKARI AUTOMOTIVE
Q1: What are the different types of IKARI PCB Connectors/Headers?
A: IKARI offers an extensive header portfolio in all possible configurations to ensure signal transmission in automotive applications, such as automotive DCU/ECU/BCU, Various automotive switches, Steering Column modules. Roof Module, Front end camera, Onboard charger, etc. IKARI offers a broad low/medium power product portfolio including a Press-fit pin connector, Through-hole pin connector, SMT connectors, that are used in the different PCB assembly processes.
Q2: How do I select different types of IKARI PCB Connectors/Headers?
A: IKARI manufactures a complete portfolio of automotive PCB headers which are designed for a wide range of automotive applications in the different PCB assembly processes. Press-fit pin connectors offer compliant pin elastic designs of the press-fit zone providing stress-free, solderless terminal-to-PCB connectivity suitable for the harshest of automotive environments Through-hole pin connectors and SMT connectors are selected if the components are assembled through the soldering process. Through-hole pin connectors are preferred when the connector will be mechanically stronger than SMD solder points If the connector will be plugged and unplugged repeatedly, then you should use a through-hole pin connector as its lifetime will be longer.
Q3: What is the purpose of press-fit connectors?
A: Press-fit pin connectors allow the manufacture to avoid soldering when assembling PCB electronics. The press-fit connection is formed when the pin is pressed into a fitted, plated-through hole in a PCB, which provides manufacturers to reduce the complexity of the PCB assembly process as well as lower manufacturing cost.
Q4: Where do you place a through-hole connector?
A: A standard way to place a connector is to place a through-hole connector on the opposite side of the trace to which its connecting shaft will be soldered. The connection is provided by a through-hole via.
