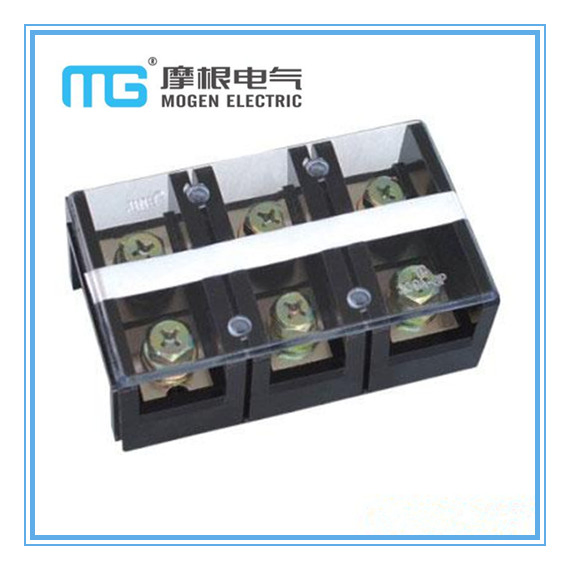

TB TC Terminal Block
TB TC series adopt plate-type,screw-clamping,low base, sealed and integral construction,
rating voltage 600V,
rating current :15A,25A,35A,45A,60A,100A .
Can realise the adjacent terminals' connection through BC series plug-in units.
Cross section: 0.5-22mm2,
Features : simple construction, convenient to install, reliable.
Adopt flaming- retarding VO- grade PC as plastic base.
The screw increase the bearing force after heart treatment, no slip thread.
In normal circumstance, the screw will not rust away for long time after special anti-salt and fog treatment. Also , stainless steel screw are available, special use for high-acidity and on the sea for long time.
Our TB TC series Terminals all past ROHS and CE certificate.
- Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 5, 6, 10, 12 - Housing Material: polyphenyl or polycarbonate
- Contact: copper pieces, tin plated brass screws
- Cover: reinforced plastic, ensures heat-resistance, good toughness and no crack
- Rated voltage: 600V
- Matched with OT, UT terminals
| Type | Current | No. ofpoles | Dimension (mm) | ||||||||
| L | L | A | B | C | D | E | F | G | |||
| TB-1503 | 15A | 3 | 46 | 36.5 | 7.5 | 9 | M3 | 22 | 17 | ||
| TB-1504 | 4 | 55 | 45.5 | 7.5 | 9 | M3 | 22 | 17 | |||
| TB-1506 | 6 | 73 | 63.5 | 7.5 | 9 | M3 | 22 | 17 | |||
| TB-1512 | 12 | 127 | 118 | 7.5 | 9 | M3 | 22 | 17 | |||
| TB-2503 | 25A | 3 | 50 | 40 | 10.5 | 12 | M4 | 30 | 20 | ||
| TB-2504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 320 | |||
| TB-2506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 | |||
| TB-2512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 | |||
| TB-3503 | 35A | 3 | 50 | 40 | 10.5 | 12 | M4 | 30 | 20 | ||
| TB-3504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 | |||
| TB-3506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 | |||
| TB-3512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 | |||
| TB-4503 | 45A | 3 | 70 | 60.5 | 15 | 17 | M5 | 38 | 23.5 | ||
| TB-4504 | 4 | 86 | 75.5 | 15 | 17 | M5 | 38 | 23.5 | |||
| TB-4506 | 6 | 120.5 | 110 | 15 | 17 | M5 | 38 | 23.5 | |||
| TB-6003 | 60A | 3 | 70.5 | 65.5 | 15.5 | 18 | M6 | 38 | 31 | ||
| TB-6004 | 4 | 93.5 | 82.5 | 15.5 | 18 | M6 | 38 | 31 | |||
| TB-6006 | 6 | 129 | 118 | 15.5 | 18 | M6 | 38 | 31 | |||
| TB-10003 | 100A | 3 | 86.5 | 75.5 | 22 | 20 | M6 | 43.5 | 35 | ||
| TB-10004 | 4 | 108 | 96 | 22 | 20 | M6 | 43.5 | 35 | |||
| TB-10006 | 6 | 153 | 140 | 22 | 20 | M6 | 43.5 | 35 | |||
| TC-603 | 60A | 3 | 28.5 | 86.5 | 38 | 42.7 | 25.5 | 31 | 15 | 17 | M6 |
| TC-604 | 4 | 28.5 | 115 | 38 | 42.7 | 25.5 | 31 | 15 | 17 | M6 | |
| TC-1003 | 100A | 3 | 34.5 | 113.5 | 46.5 | 55.2 | 28 | 36.3 | 17.3 | 22.5 | M6 |
| TC-1004 | 4 | 34.5 | 137.5 | 46.5 | 55.2 | 28 | 36 | 17.3 | 22.5 | M6 | |
| TC-1503 | 150A | 3 | 38.5 | 115 | 57.2 | 67 | 30.5 | 340 | 19.8 | 25.3 | M8 |
| TC-1504 | 4 | 38.5 | 153 | 57.2 | 67 | 30.5 | 40 | 19.8 | 25.3 | M8 | |
| TC-2003 | 200A | 3 | 44.5 | 133 | 63 | 72.1 | 34 | 44.4 | 23 | 28.3 | M8 |
| TC-2004 | 4 | 44.5 | 177 | 63 | 72.1 | 34 | 44.4 | 23 | 28.3 | M8 | |
| TC-3003 | 300A | 3 | 55 | 164 | 78 | 89.4 | 47.5 | 50.6 | 27 | 30 | M10 |
| TC-3004 | 4 | 55 | 218 | 78 | 89.4 | 47.5 | 50.6 | 27 | 30 | M10 | |
| TC-4003 | 400A | 3 | 55 | 164 | 78 | 89.4 | 47.5 | 50.6 | 27 | 30 | M10 |
| TC-4004 | 4 | 55 | 218 | 78 | 89.4 | 47.5 | 50.6 | 27 | 30 | M10 | |
