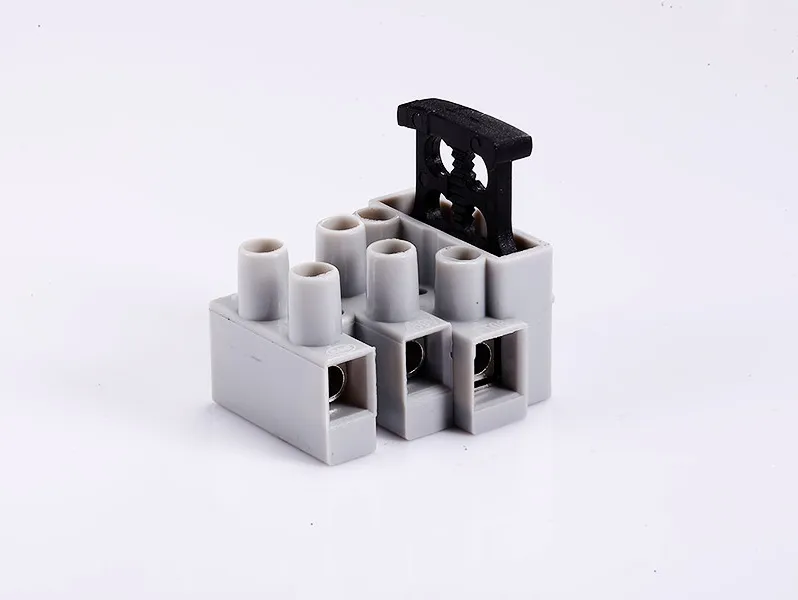

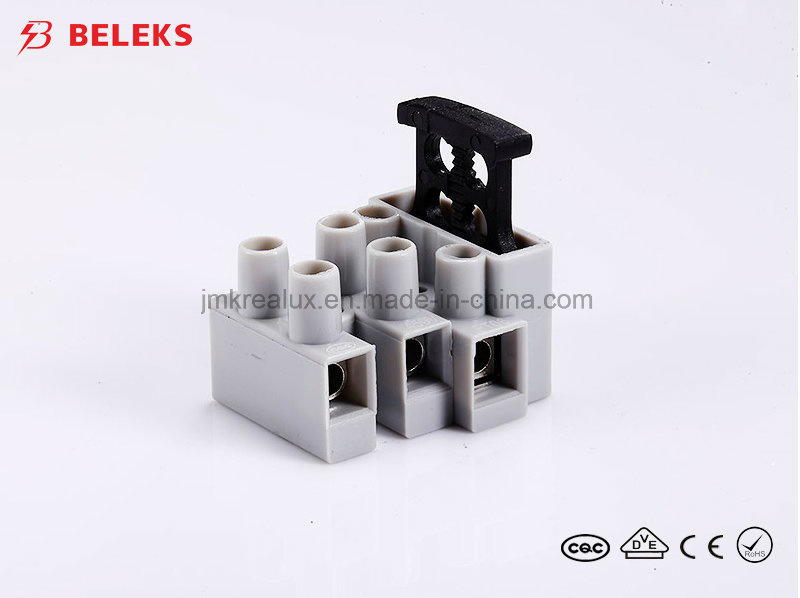

Beleks EU Standard 3 Poles Fused Mounting Terminals ( FT06 -3/83)
Fused Terminal (FT06-3/83) ModelFT06-3/83 SpecificationVoltage (V)Fuse Holder250Terminal450Ampere (A)6.315Wiring Capacity (mm2) 2.5-4"r"Fuse Size (mm)5×20 Rated Power Acceptance (mm)1.6WApprovalsVDE,CE,CQC MaterialHousing Polyamide 66 (V2)Terminal Body Brass Finished Nickle-p......
Send Inquiry
Product Description
Fused Terminal (FT06-3/83)
| Model | FT06-3/83 | |||||
| Specification | ||||||
| Voltage (V) | Fuse Holder | 250 | Terminal | 450 | ||
| Ampere (A) | 6.3 | 15 | ||||
| Wiring Capacity (mm2) | 2.5-4"r" | |||||
| Fuse Size (mm) | 5×20 | |||||
| Rated Power Acceptance (mm) | 1.6W | |||||
| Approvals | VDE,CE,CQC | |||||
| Material | ||||||
| Housing | Polyamide 66 (V2) | |||||
| Terminal Body | Brass | Finished | Nickle-plated | |||
| Terminal Screw | Zinc-plated steel (M3×6) | |||||
| Temperature | PA66(V2):T110 | |||||
| Color | Grey | |||||
