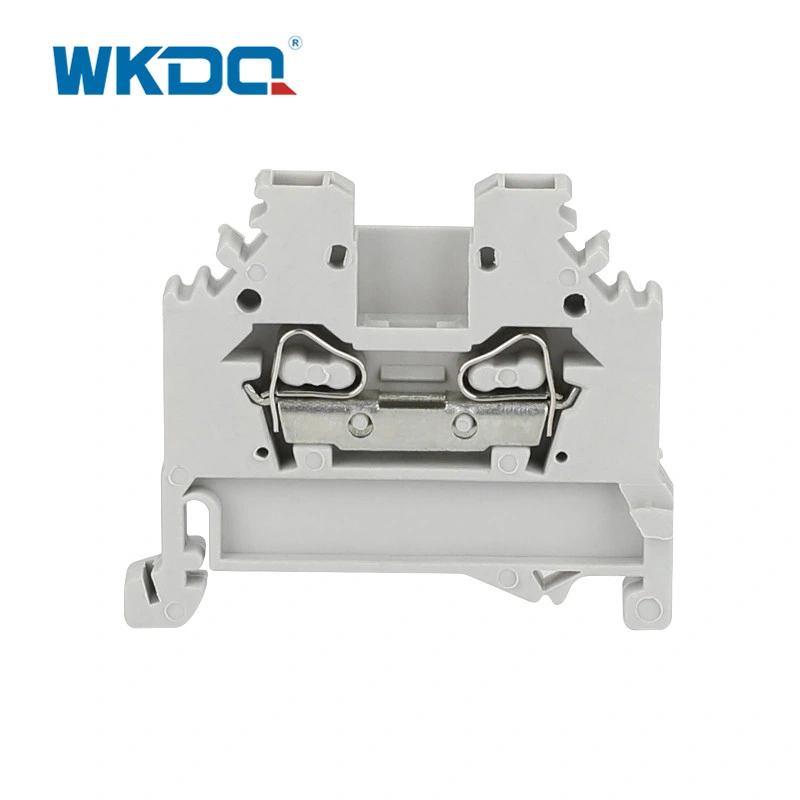

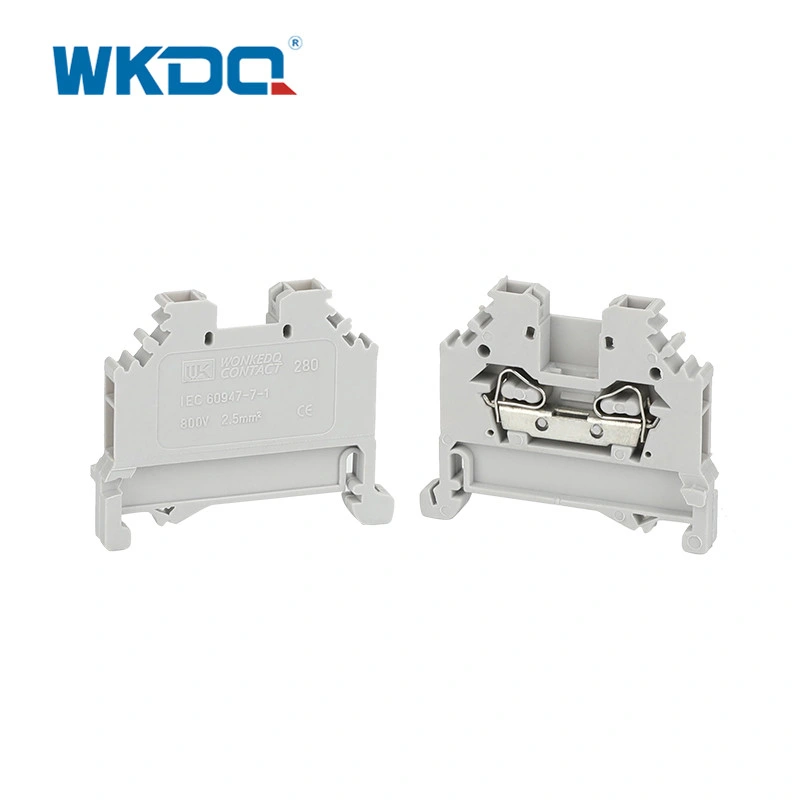

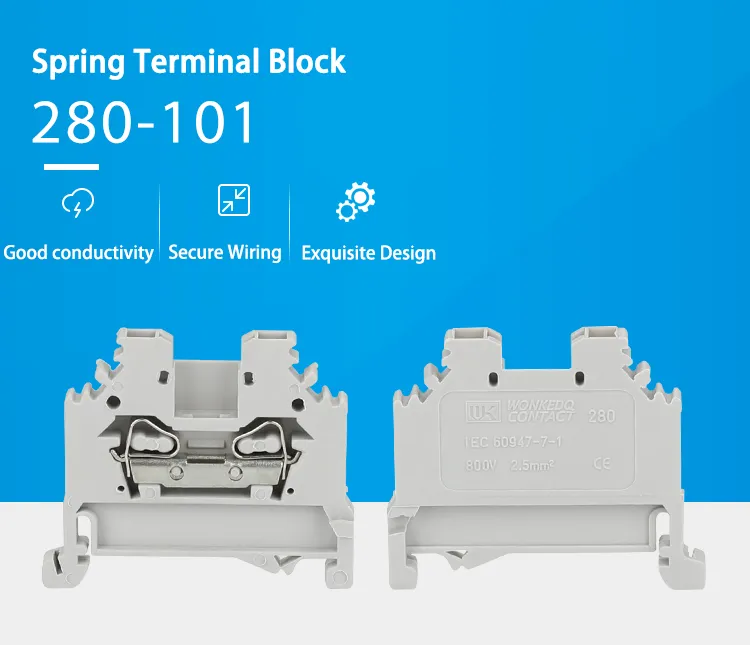

280-101 Universal 2.5mm Spring Terminal Blocks

Product Description

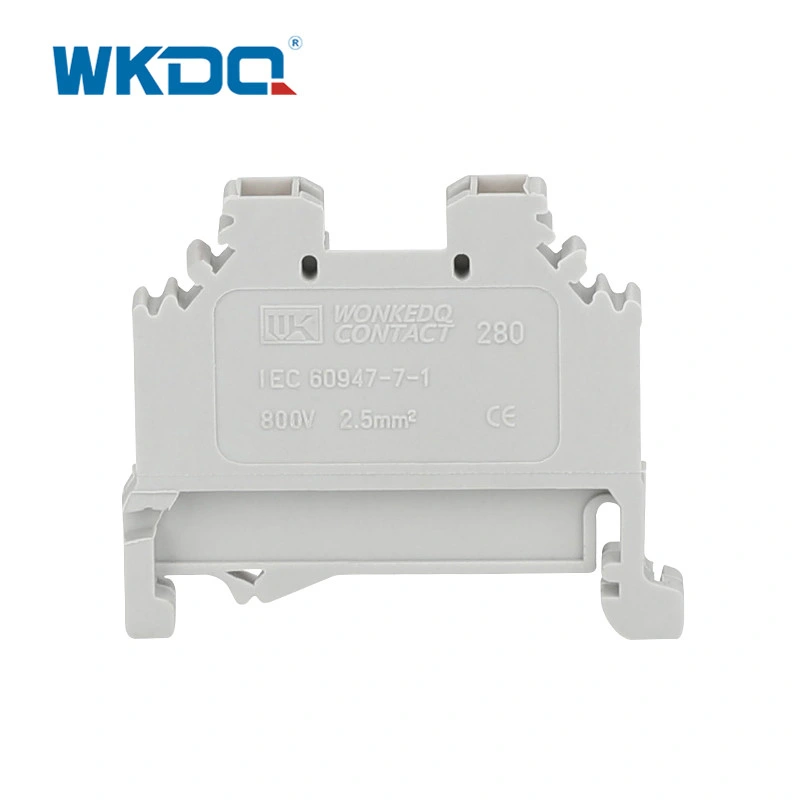

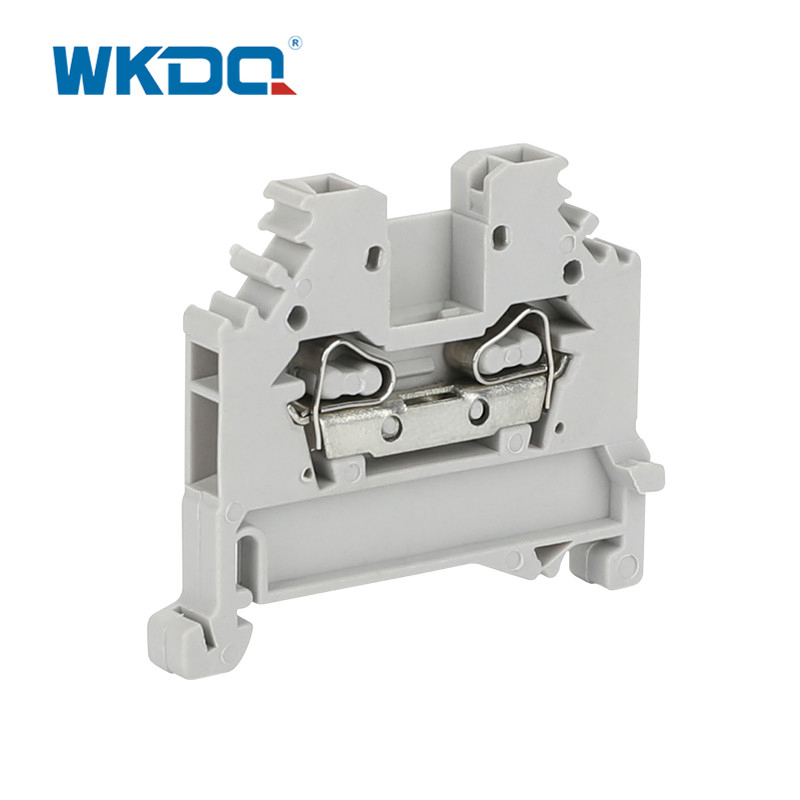

280-101 Universal 2.5mm Spring Terminal Blocks

1. DESCRIPTION:

We offer many terminal block products including double level ,multiple conductors, ground ing, space-saver feed through, fuse, sensor, plug-in connection, disconnect , isolation and more.The side-entry spring rail-mount terminal blocks is easy to operate, fast wiring installation with side wire entry. With the compact body saving space.
These high-density blocks reduce wiring time, minimize troubleshooting, and perform in severe conditions. Secure contact is durable under extreme conditions such as vibration type applications.

Made from polyamide 66 with tin plated copper conductors.
Use spring pressure technology to avoid from vibration.
Tin plated brass conductor is low contact resistance.
With the universal feet, can easy mounting and dismounting from the terminal DIN Rail.
Compact plastic body is easy for handing and safety connecting.
Other color and design can be customized.

Technical Parameters

Model No.	280-101
Color	Grey, other color can be customized

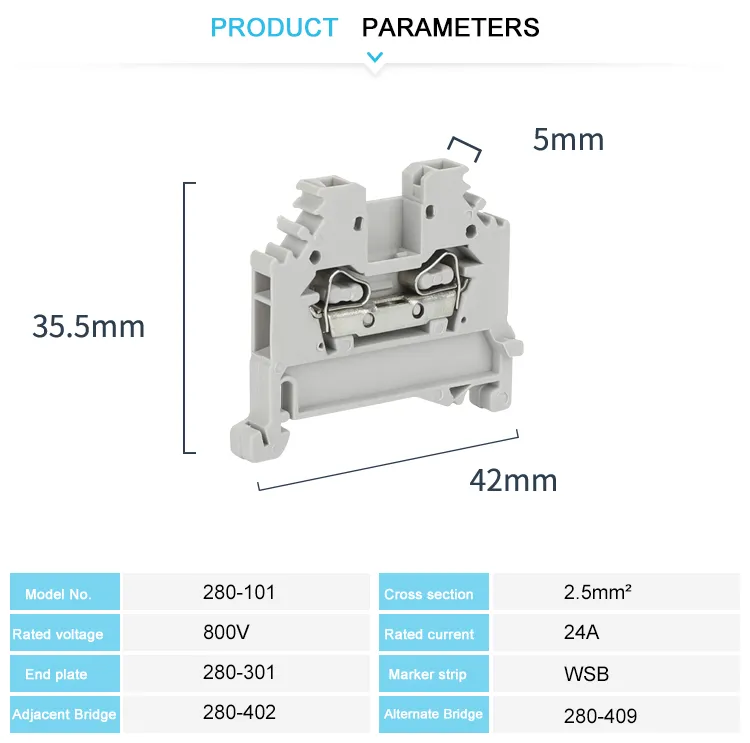

Length/Height/Wide (mm)	42/35.5/5
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/24A
Cross section	0.08-2.5 mm²
Conductor Size	28-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	6.13g/pc, 100PCS/BOX, 4200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

FAQ

Q1 : Are you manufacturer ?
   We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
   Of course, our R&D Depart. have rich experience in OEM, ODM service.  Package can be customized as demanded.
Q3:What about your MOQ?
    We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
   Products approved by CE, RoHs, etc.  Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
    If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
