Product Description

Manufacturers supply through hole right angle USB 1394 connectors

Specification:

Features:
1. With A Type/B Type/Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

Material
1. Housing: PBT White/Black
2. Terminal: Phosphor Bronze Plating Gold/Tin
3. Shell: BRASS Plating Ni

Electrical performance:

Rating	*DC12V 1A max*
Temperature	-30ºC~85ºC
Contact Resistance	50mΩ max
Insulation Resistance	100MΩ min(DC250V)
Operating Force	5-20N
Life	10,000 cycles min

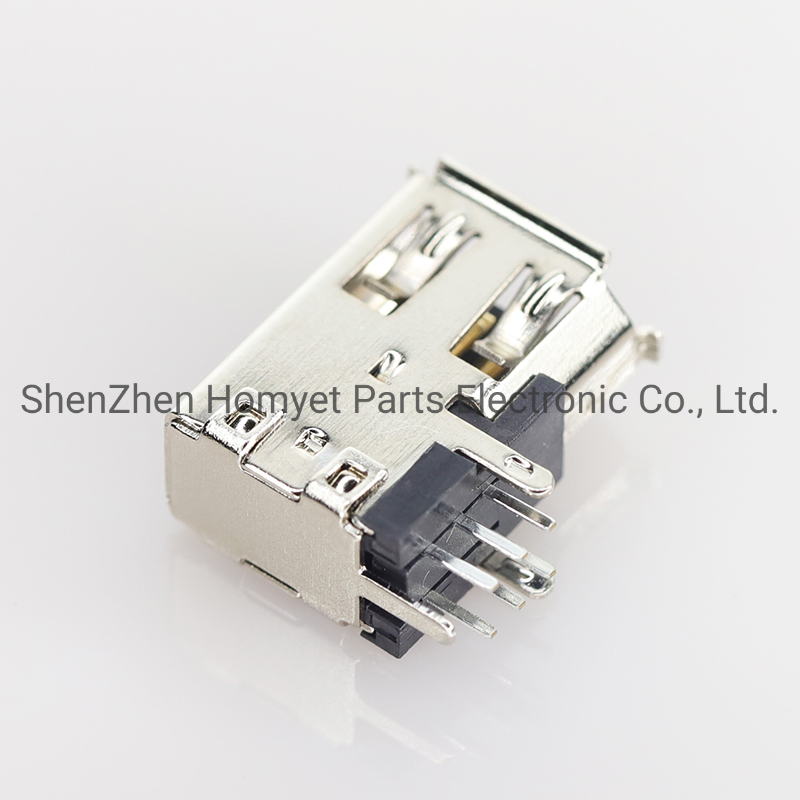

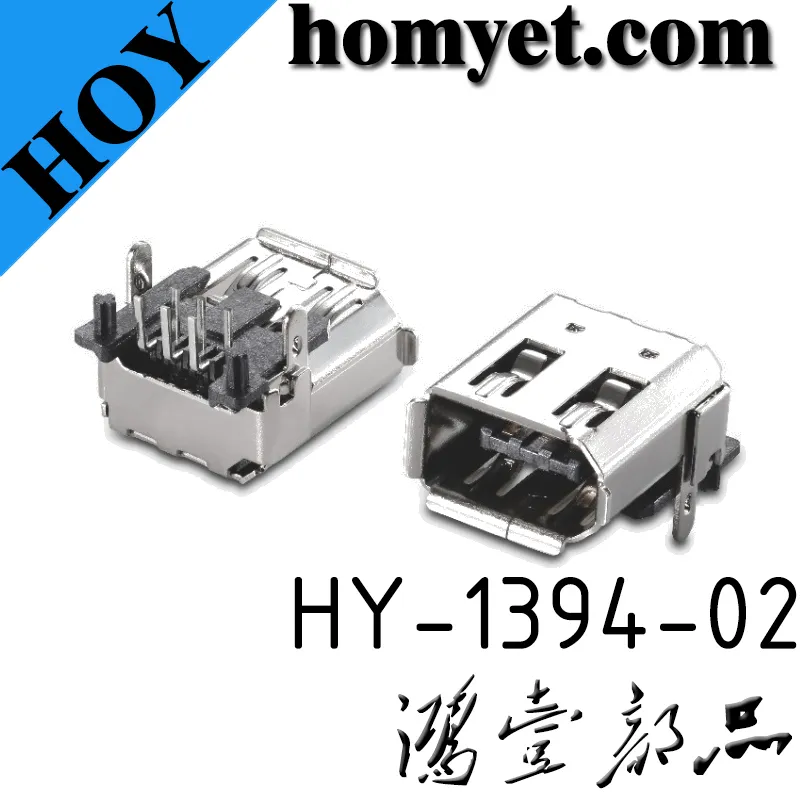

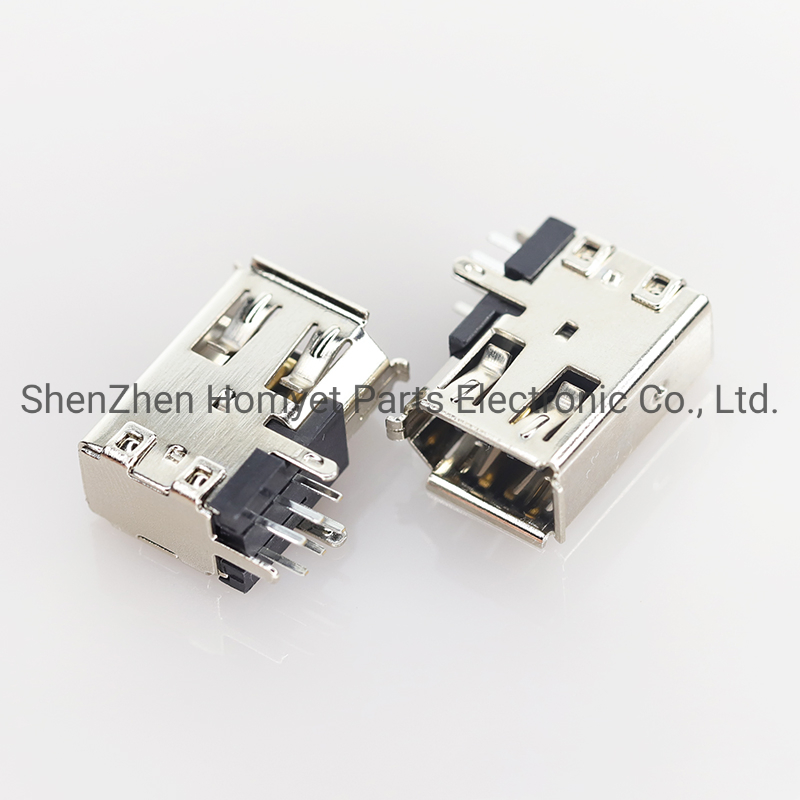

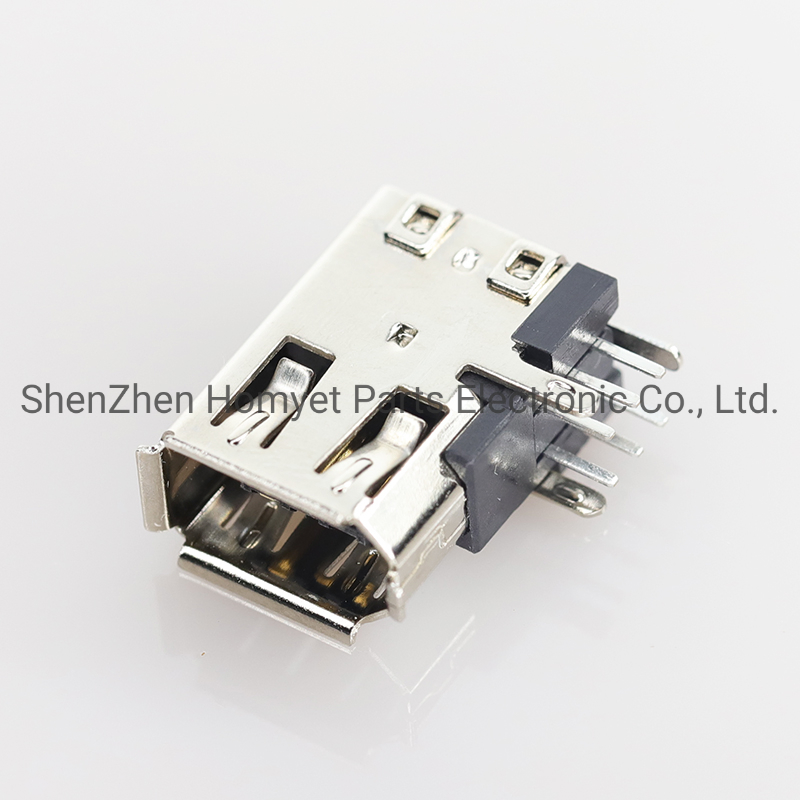

Product Detail Show:

China DIN Socket to USB Adapter Manufacturers Supply Through Hole Right Angle USB 1394 Connectors

Application Range:
1. Digital devices: digital camera, digital video
2. Communication products: mobiles
3. Security Products: Videophone, Monitor etc.
4. Toy: electronic toy etc.
5. Computer products: Camera, laptop, Tablet PC etc.

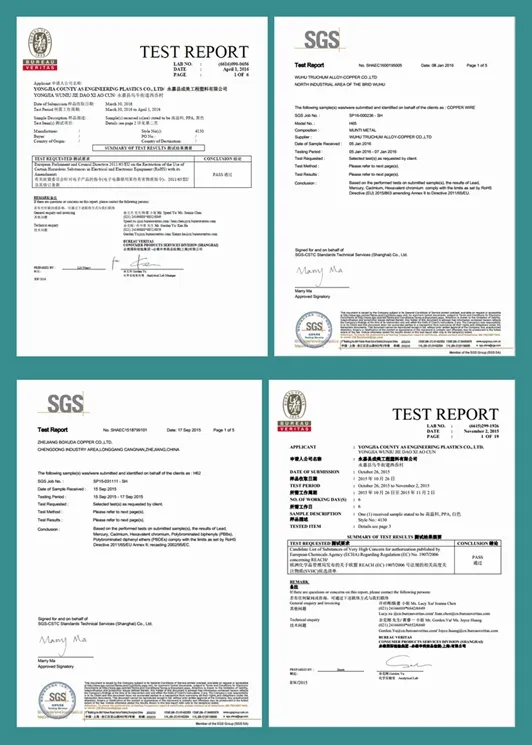

Products Certification:
