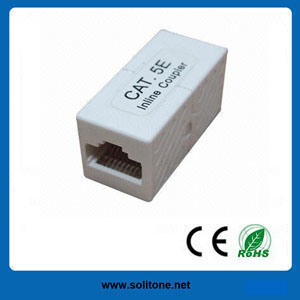

UTP 180 Degree Cat5e Coupler Keystone Jack Leokj-UC5e-C037

Product Description

Description:
Horizontal style Cat5e 180° Keystone jacks, UTP type and for connecting application of communication ports in working area
Features dual color-coded wiring label with both T568A/BA wiring pattern, rear termination field for easy termination of a jack while installed in a wall plate, surface mount boxes and blank patch panels for a wide variety of applications

Features:

Housing	High-temperature thermoplastic
Inserting duration	750 times
Material of the IDC clips	Tinned phosphor bronze pins, fits for 22AWG/23AWG/24AWG cables
Punching duration	250 times
Punching tools	Tooless punching type assembles the cables with the punching cover

Available in Cat5E, T568A/B wiring schemes, meets or exceed TIA/EIA Cat5E requirements
Housing: High-temperature thermoplastic
Shielding protects against EMI/RFI interference
Compact jack design, 8 positions and 8 conductors
Contact: Phosphor bronze, phosphor bronze with 6 to 50μ -inch gold plate
Accept 22 to 26AWG solid with a insulation diameter of 0.4 to 0.6mm
Easy to be terminated, extremely low-attenuation loss and high-return loss
High-reliability and superior performance
Material of the FCC connectors' 8-pin of the RJ45 jack: Phosphor bronze with golden plated 3U, 6U, 15U, 30U, 50U at option
