Nac3 Fca Powercon for Vrx932lap Line Array
Overview:
Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i. E. The powerCON should not be connected or disconnected under load or live
Features & Benefits
Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground

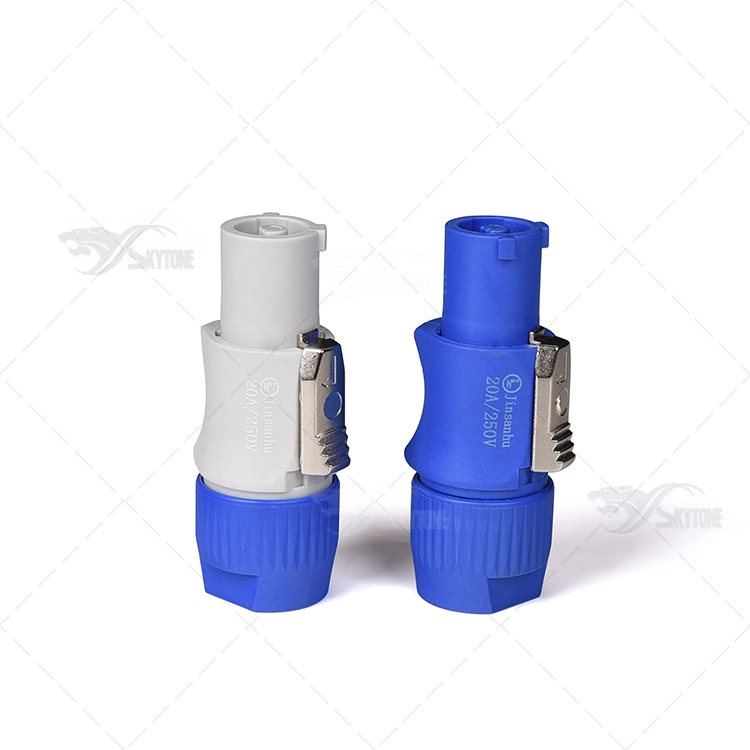

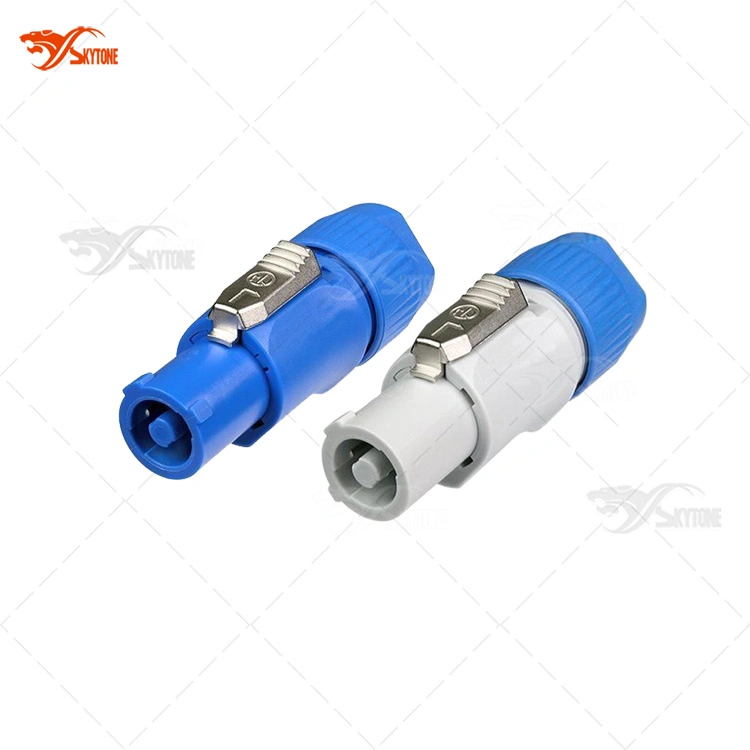

Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
UL, cUL recognized components
VDE certified
SEV approved
Branded with unique hologram - guarantees genuine and authentic product
Specifications:
Applications:
VRX932LAP line array speaker
VRX918SP line array subwoofer speaker box
Overview:
Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i. E. The powerCON should not be connected or disconnected under load or live
Features & Benefits
Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
UL, cUL recognized components
VDE certified
SEV approved
Branded with unique hologram - guarantees genuine and authentic product
Specifications:
| Model | NAC3FCA |
| Gender | female |
| Contact resistance | ≤ 3 mΩ (inner) |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rated current per contact | 20 A rms |
| Rated voltage | 250 V ac |
| Cable O.D. | 6 - 15 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 2,5 mm² |
| Wiresize | 14 AWG |
| Locking device | Quick Lock |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Temperature range | -30 °C to +80 °C |
| Coding | A-type for power inlet (color coding blue) |
Applications:
VRX932LAP line array speaker
VRX918SP line array subwoofer speaker box
