Product Description

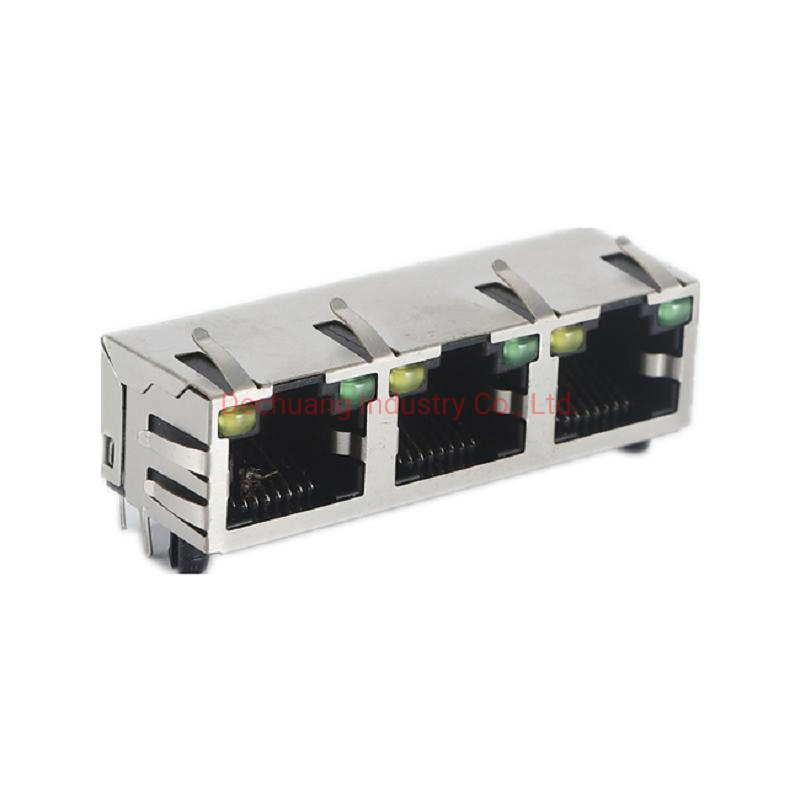

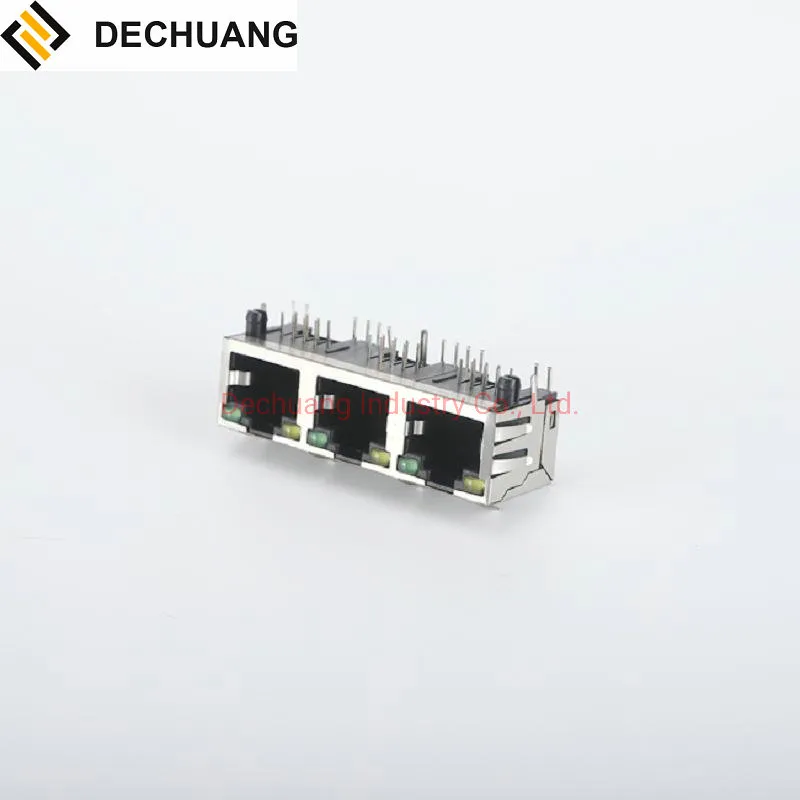

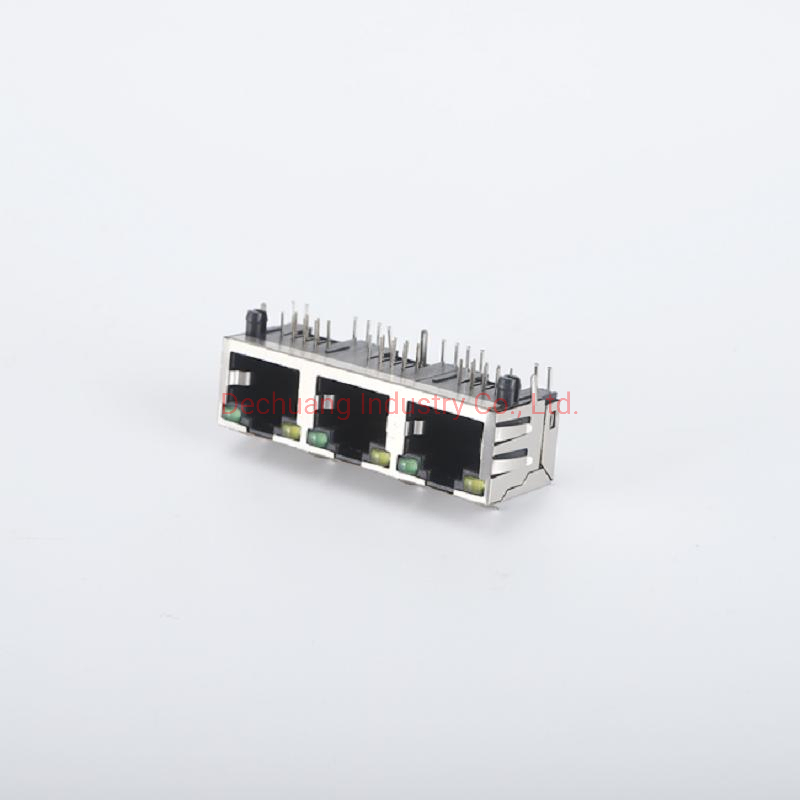

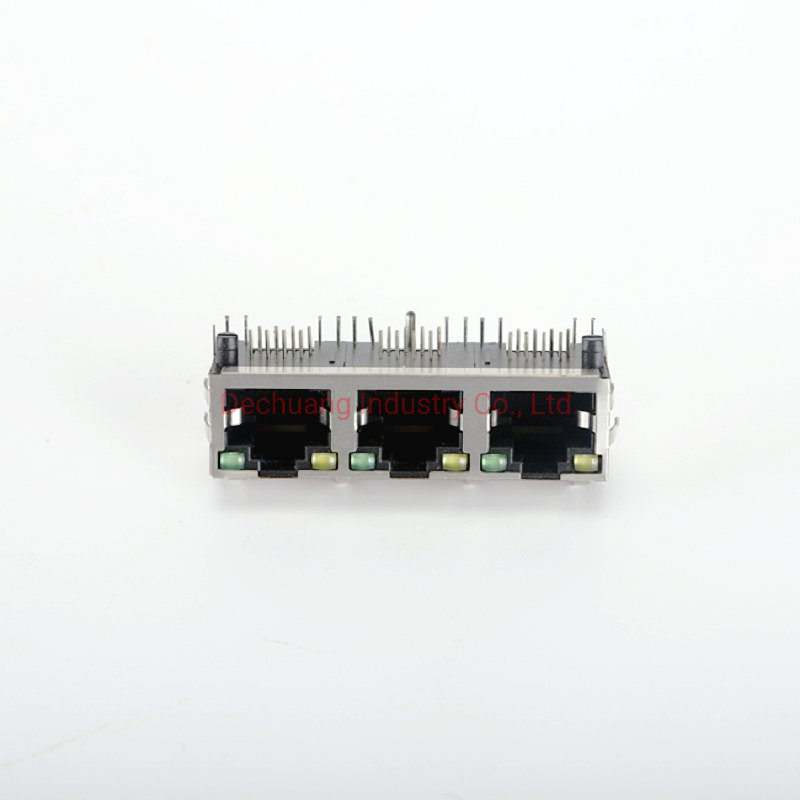

Female To Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes For 5G Base - T Ethernet with Transformer and LED Model

Female to Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes for 5g Base - T Ethernet with Transformer and LED Model

Electrical
1.Current Rating	1.5 amps
2.Voltage Rating	125vac
3.Insulation Resistance	500 MΩmin
4.Contact Resistance	30 MΩmax
5.Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Retention Strength	7.7KG.F min between jack and plug
2.Durability	750 mating cycles min
Material
1.Housing	PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield	0.20~0.25mm thickness brass with tin plated
4.Gold Plating	1u ,3u 6u 15u 30u 50u
5.RoHS peak wave solder	RoHS peak wave solder temperature rating 260ºC±5ºC
Operating and Storage Temperature
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 85ºC
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,

Arrange packing within 24 hours
Delivery time within 7-12days
DNo else charge
Excellent after-sales system
Supporting visits to factory for inspection

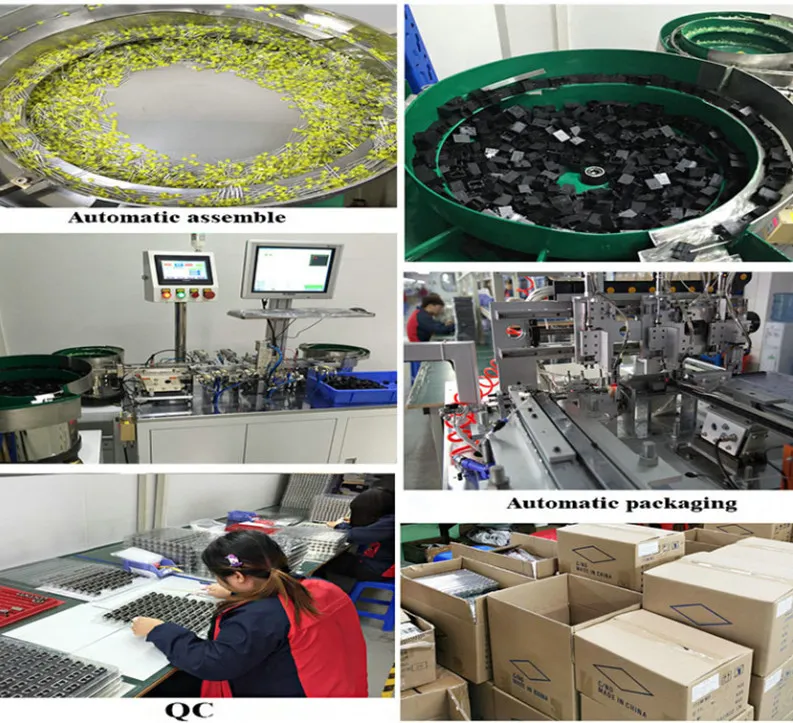

100% checked before shipment
Female to Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes for 5g Base - T Ethernet with Transformer and LED Model

Female to Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes for 5g Base - T Ethernet with Transformer and LED Model

Dechuang industry co.,ltd,started as Lan transformer OEM partner to the industry leading company domestic and overseas
in China.Have great advantages in quality, cost and lead time control.Mean while,we are also confident with our 15 years
international trade to support customers professionally.

"To the enterprise of virtue" is the main axis of Dechuang.

Staff Spirit: Quality, Love, Honesty and Dedication

Team Spirit: Learning Innovation, pragmatic and Efficient

Entrepreneurship: There is no guarantee of success without entrepreneurship
Female to Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes for 5g Base - T Ethernet with Transformer and LED Model

The main products are Ethernet network transformer,2.5G/5G/10G LAN transformer,100M/1000M single port,dual port,quad port LAN transformer;

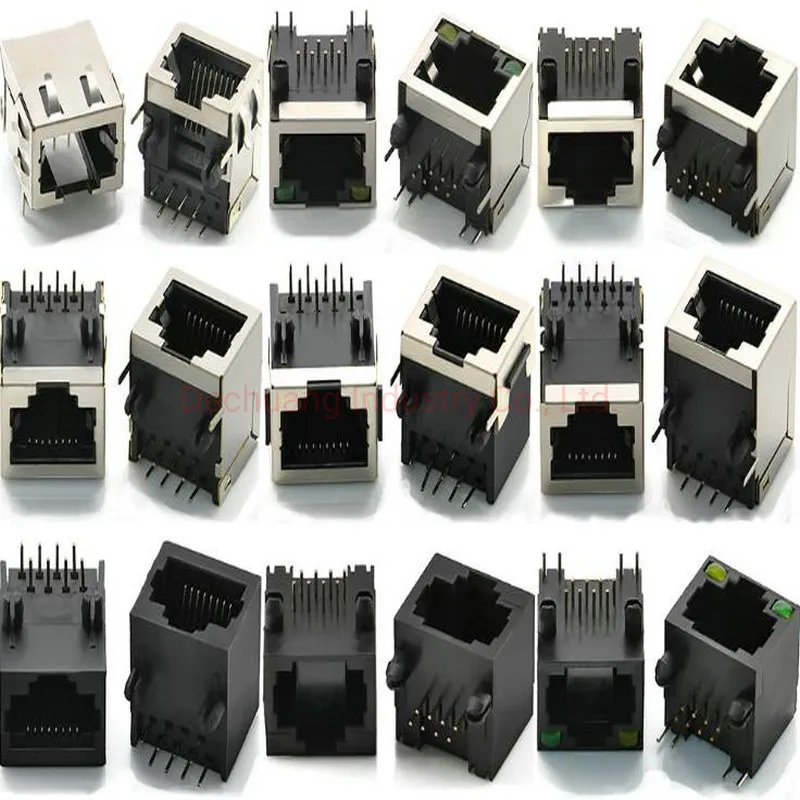

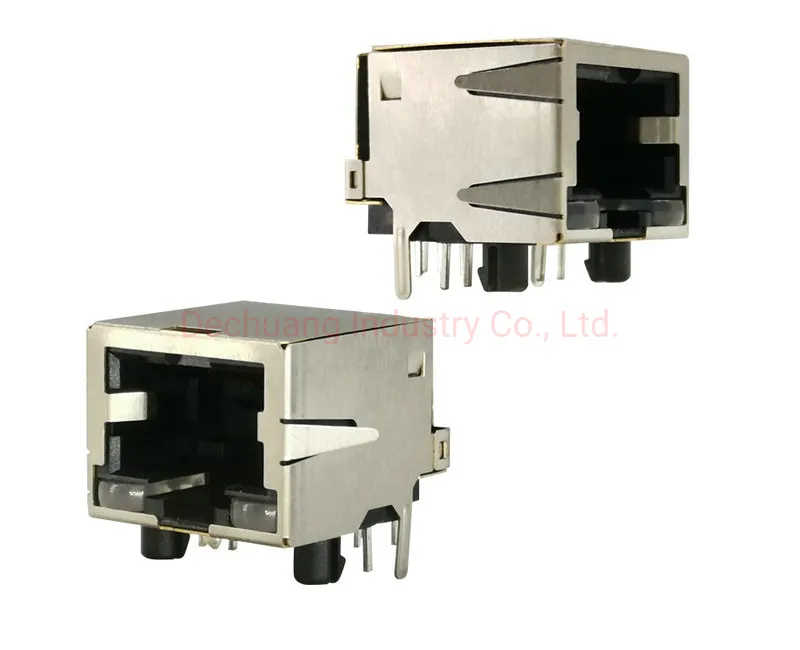

RJ45 connector,single port RJ45 connector,Low-profile RJ45 connector,SMT RJ45 connector,Vertical RJ45 connector,RJ45 Connector with USB,
1xN RJ45 connector,2xN RJ45 connector,RJ45 without Magnetics, high frequency transformer,toroidal inductor,SMD common mode choke etc.,

The products widely used for digital equipments, personal computers, AV equipments, auto products, communication equipments
and medical machines.

Female to Male Tab up 1*3 Port RJ45 Connectors 3 Ports Light Pipes for 5g Base - T Ethernet with Transformer and LED Model

Q1: Do you test all your goods before delivery?
A: Yes, we will 100% test before delivery.

Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.

Q3: Is it OEM available?
A: Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on
the products.

Q4: How about the lead time ?
A: The spot goods 3-7 days, for OEM and ODM order,please check exactly with us.

More questions, please contact us directly. We are always here waiting to serve you!
