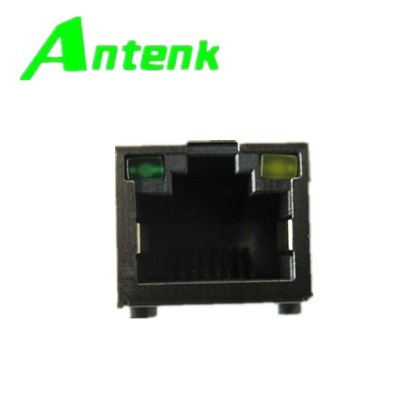

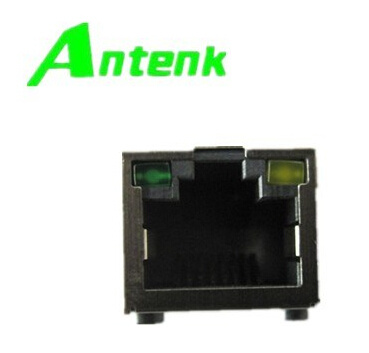

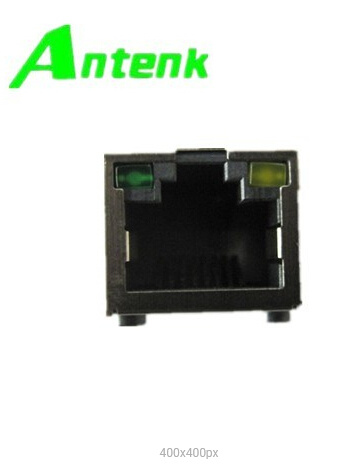

8p8c RJ45 Connector
Key Specifications/Special Features:Electrical dataComplies with IEEE standards and all 10/100 EthernetSpecifications including 350uH with 8mA DC biasCurrent rating: 1.5A AC (rms)/DCVoltage rating: 125V AC (rms)/DCContact resistance: 30MΩ maxInsulation resistance: 500MΩ minWithst......
Send Inquiry
Product Description
Key Specifications/Special Features:Electrical data
Complies with IEEE standards and all 10/100 Ethernet
Specifications including 350uH with 8mA DC bias
Current rating: 1.5A AC (rms)/DC
Voltage rating: 125V AC (rms)/DC
Contact resistance: 30MΩ max
Insulation resistance: 500MΩ min
Withstanding voltage: 1000V AC rms
Material
Housing: class filled polyester 94V-0
Contact: phosphor bronze/plated nickel 30u min, gold plated on content area 6u min
Shell: copper alloy/nickel plated
Mating performances
Mating/unmating force: 30N max
Retention strength: 50N for 60s+-5s
Durability: 750 cycles min
Environmental characteristics
Operating temperature range: 40°C-85°C
Complies with IEEE standards and all 10/100 Ethernet
Specifications including 350uH with 8mA DC bias
Current rating: 1.5A AC (rms)/DC
Voltage rating: 125V AC (rms)/DC
Contact resistance: 30MΩ max
Insulation resistance: 500MΩ min
Withstanding voltage: 1000V AC rms
Material
Housing: class filled polyester 94V-0
Contact: phosphor bronze/plated nickel 30u min, gold plated on content area 6u min
Shell: copper alloy/nickel plated
Mating performances
Mating/unmating force: 30N max
Retention strength: 50N for 60s+-5s
Durability: 750 cycles min
Environmental characteristics
Operating temperature range: 40°C-85°C
