Product Description

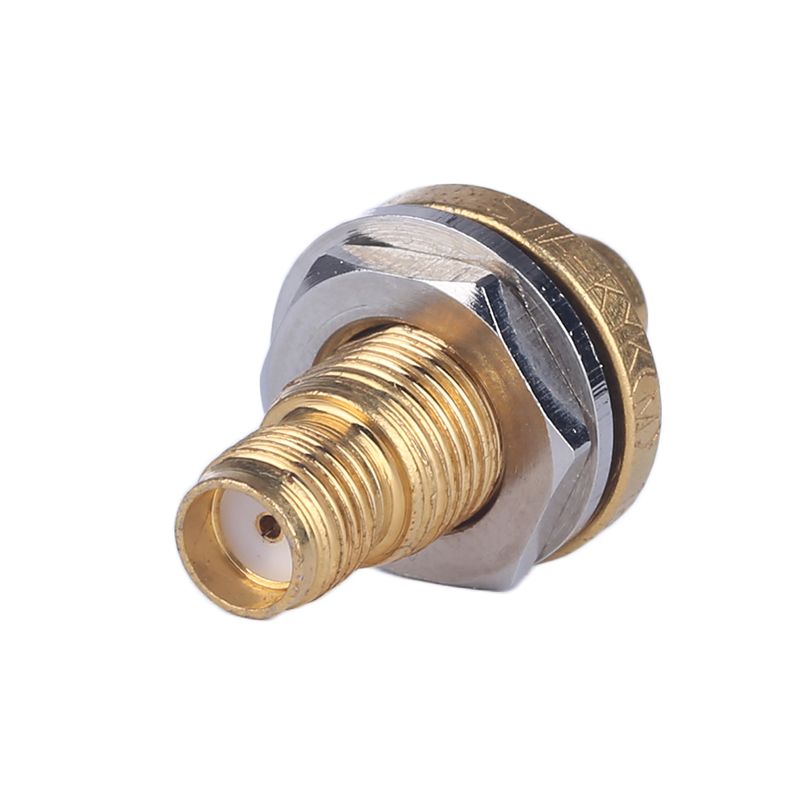

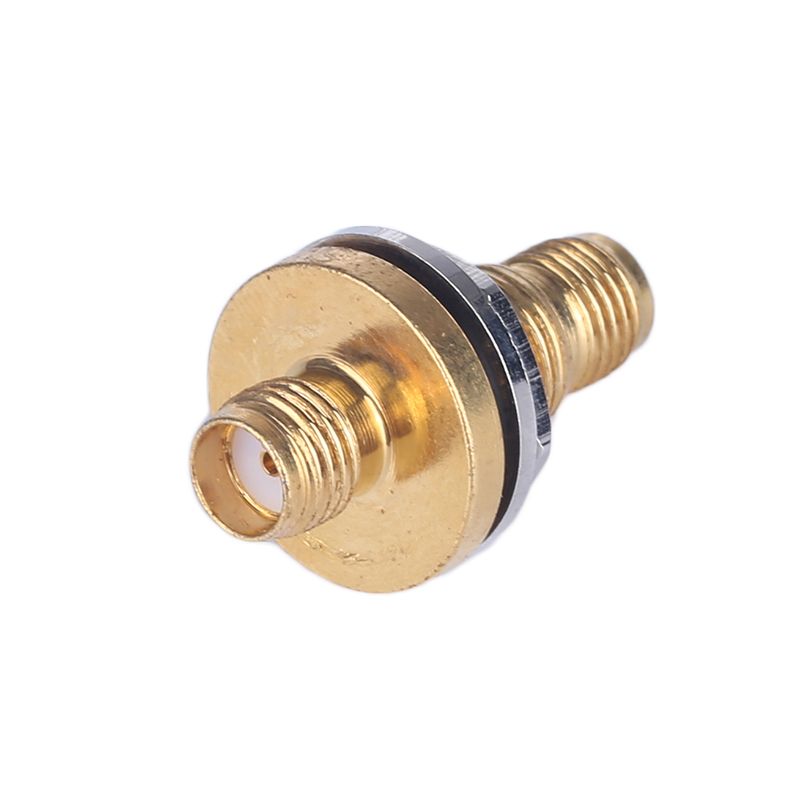

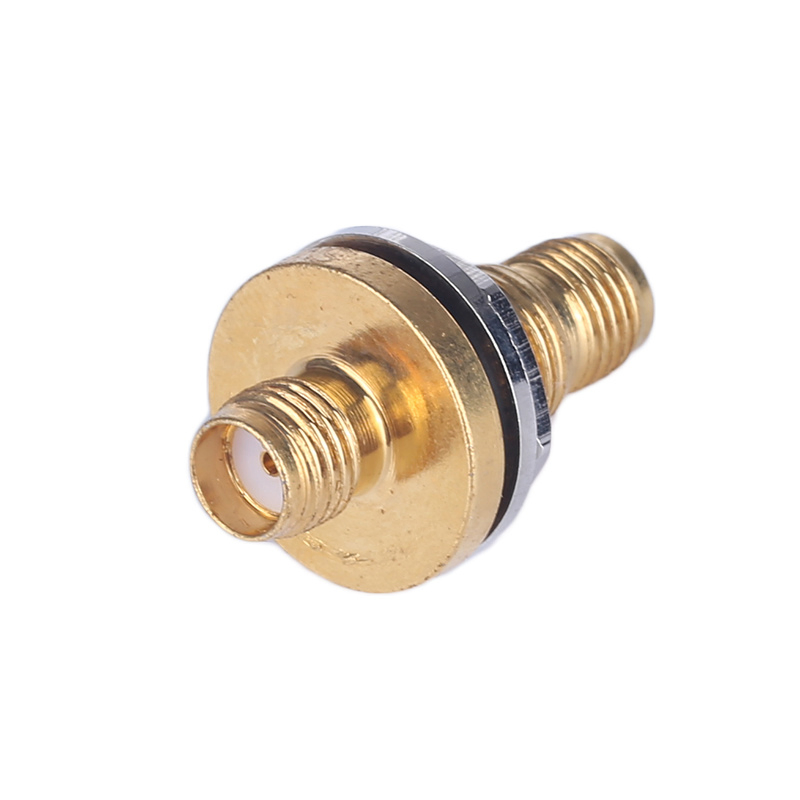

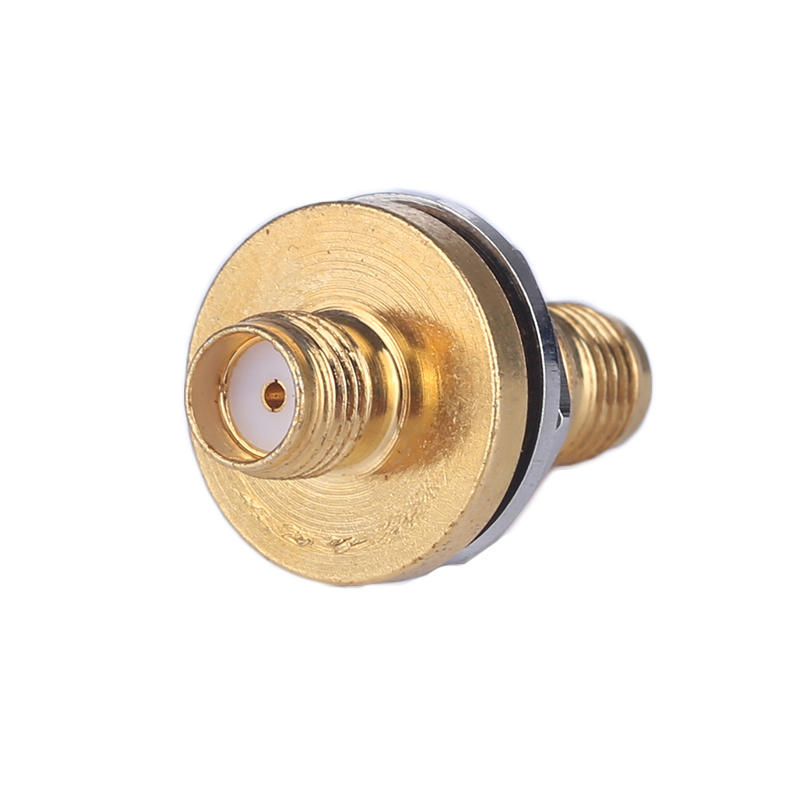

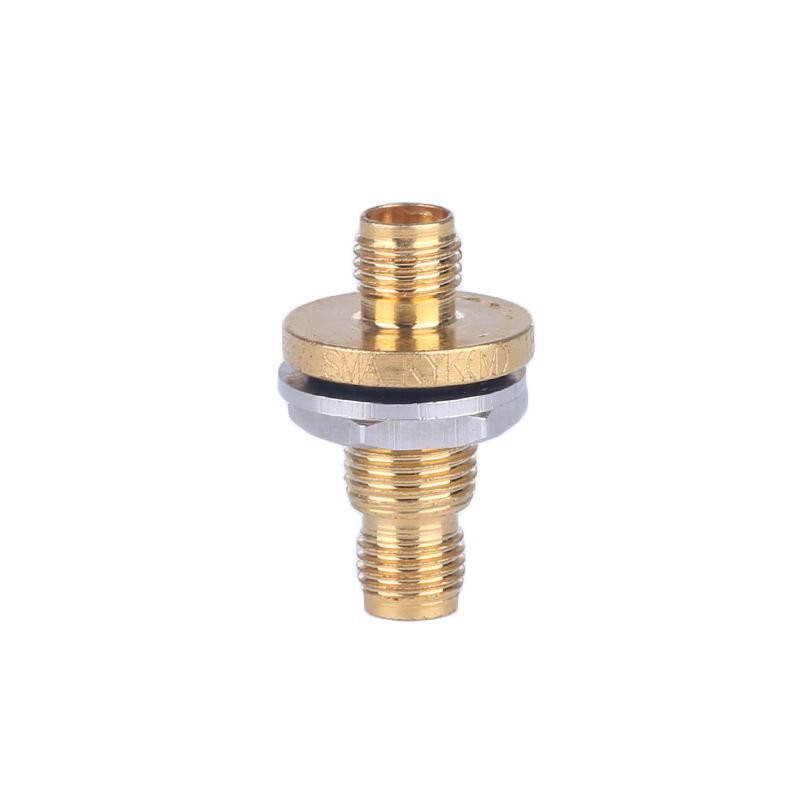

SMA Stone Mastic Asphalt Plug Connector Female Type

SMA RF coaxial connectors are designed for use with semi-rigid and flexible RF cables, which are used for microwave applicstions requiring high performance. SMA connectors are characterized by their small size and high reliability.

Environment Condition
Temperature range	PE cable, -40°C to +85°C
Vibration	150m/S²(10Hz to 2000Hz)
Electrical Specifications
Frequency range	DC to 18GHz
Working voltage	At sea level		500V (rms)
	At 5.4 Kpa		125V
Contact resistance	Center conductor		≤ 5mΩ
	Outer conductor		≤ 5mΩ
Insulation resistance	≥ 5000MΩ
Withstand voltage	At sea level		1500V (rms)
	At 5.4 Kpa		325V
VSWR	Type straight	0~4 GHz	1.15
		4~12.4 GHz	1.28
		12.4~18 GHz	1.30
	Type angle	0~4 GHz	1.20
		4~12.4 GHz	1.30
		12.4~18 GHz	1.34
Screening effectiveness	60dB min at 2~3 GHz
Mechanical Specifications
Center conductor withdrawal force	≥ 0.28 N
Durability	500 cycles
Applicable standard	GB11316-89
	IEC169-15
	MIL-C-39012

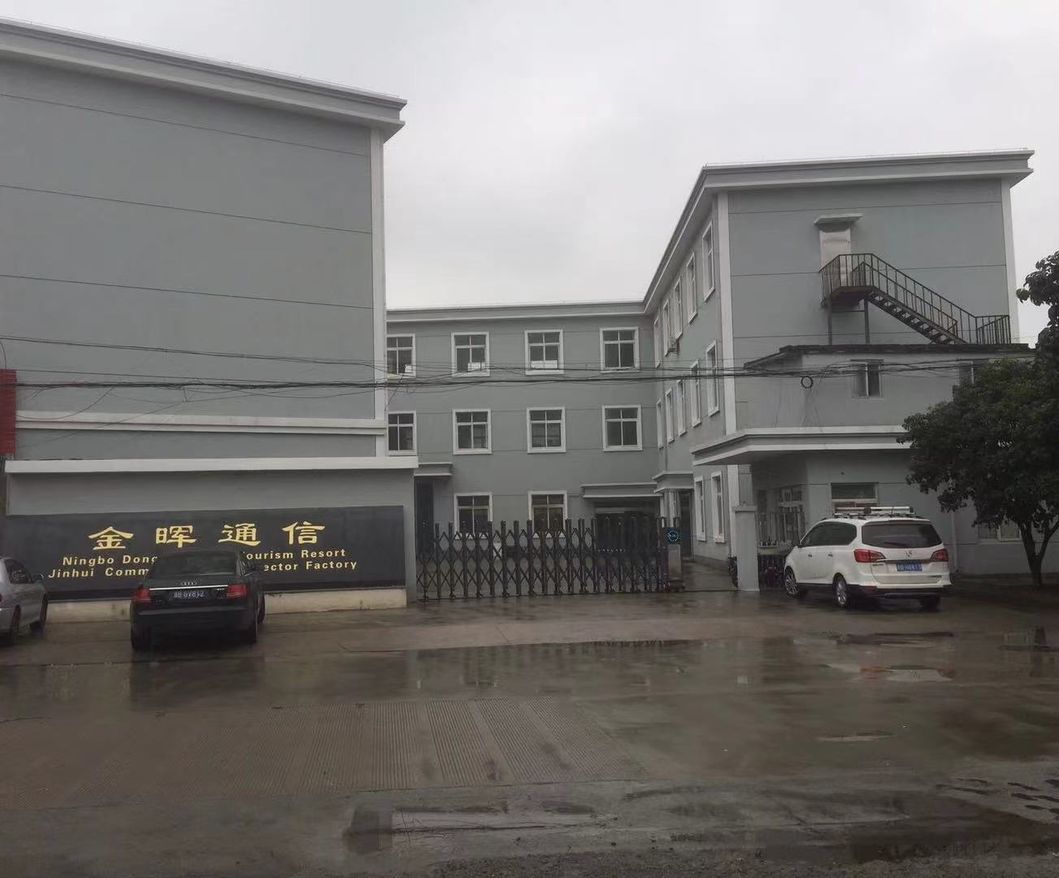

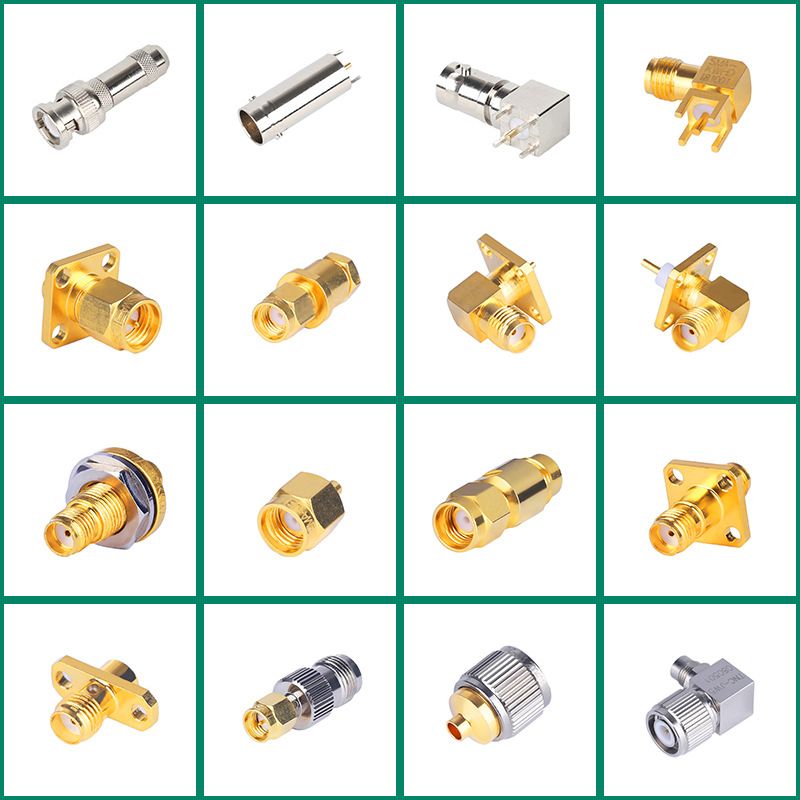

Ningbo Hanson Communication Technology Co,. Ltd. is a manufacturing and trading Company founded in 2021, which was associated with Jinhui Communication Connector Factory. It is located in Dongqian Lake Industial Park, Ningbo in Zhejiang Province. The factory has more than 20 years of experience in the production of connectors. During the period, factories has now developed to has its own hardware workshop and electroplating workshop as well as a variety of reliable suppliers, which aims to provide clients with high-quality products. The segment of main products are various RF coaxial connectors, adapters and cable assemblies of SMA series, N series, BNC series and TNC series, ect. In addition, factory is also able to serve for the clients who has customized products with specific requirements. The products are widely used in aerospace and other high-tech fields. Factory pays more attention to product quality, and annually participated in quality system certification with ISO 9001:2015. We look forward to cooperating with all clients.
