RF Coaxial N Type Female/Jack Bulkhead to SMA Female/Jack Adaptor Connector

N Type Female Bulkhead to SMA Female Connector AdaptorInterface According to IEC 60169-16/ IEC 60169-15Electrical Characteristic Impedance 50ohmTypical Frequency Range DC-6GHz VSWR ≤1.15@DC-3GHz; ≤1.25@3-6GHzInsertion Loss ≤0.20dB@6GHzTesting Voltage 1000V RMS,50Hz,at sea ......

Send Inquiry

Product Description

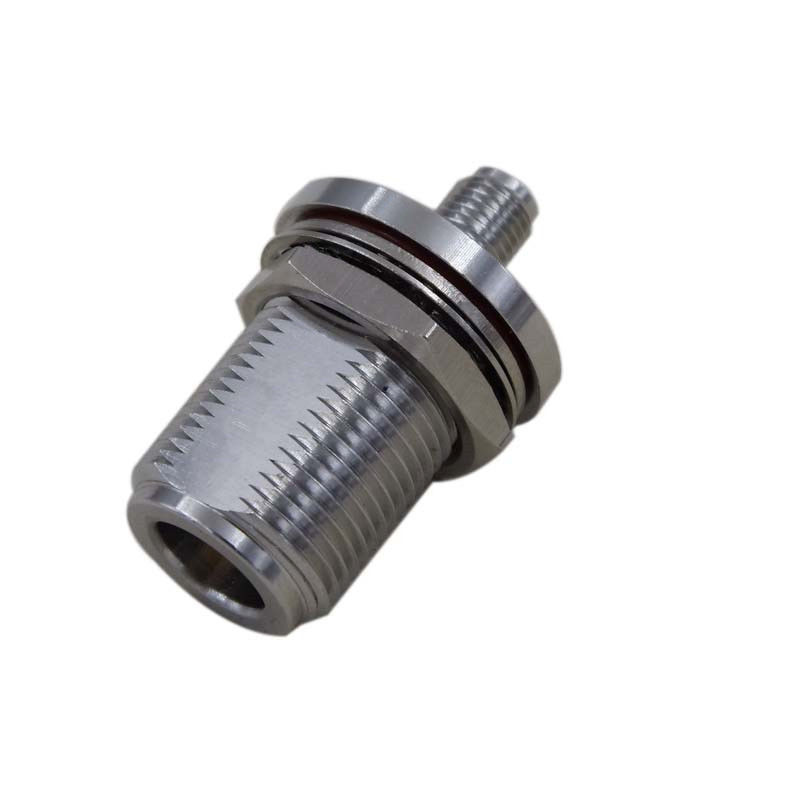

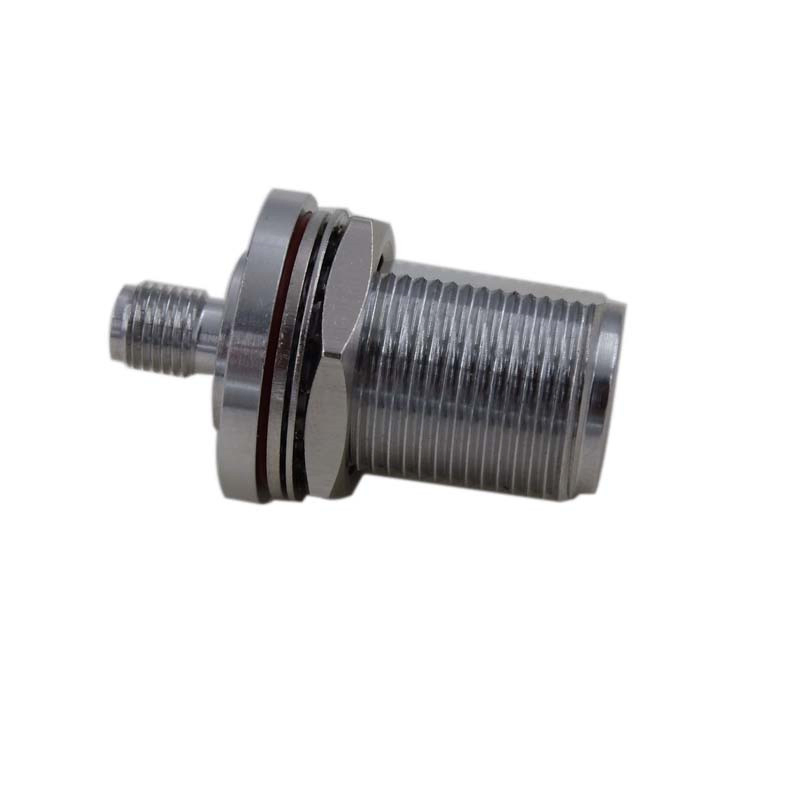

N Type Female Bulkhead to SMA Female Connector Adaptor

Interface According to	IEC 60169-16/ IEC 60169-15
Electrical
Characteristic Impedance	50ohm
Typical Frequency Range	DC-6GHz
VSWR	≤1.15@DC-3GHz; ≤1.25@3-6GHz
Insertion Loss	≤0.20dB@6GHz
Testing Voltage	1000V RMS,50Hz,at sea level
Working Voltage	480V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.0 mΩ N side ≤3.0mΩ SMA side
	Outer Contact ≤0.25mΩ N side ≤2.0 mΩ SMA side
Durability	≥500 cycles
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	-
Center conductor	Phosphor Bronze	Au
Fastening nut	Brass	Ni
Washer	Brass	Ni
Gasket	Silicone Rubber	-
Operating Temperature	_45 ºC-+ 85 ºC
Weatherproof Rate	IP67
RoHS Compliant	Yes
