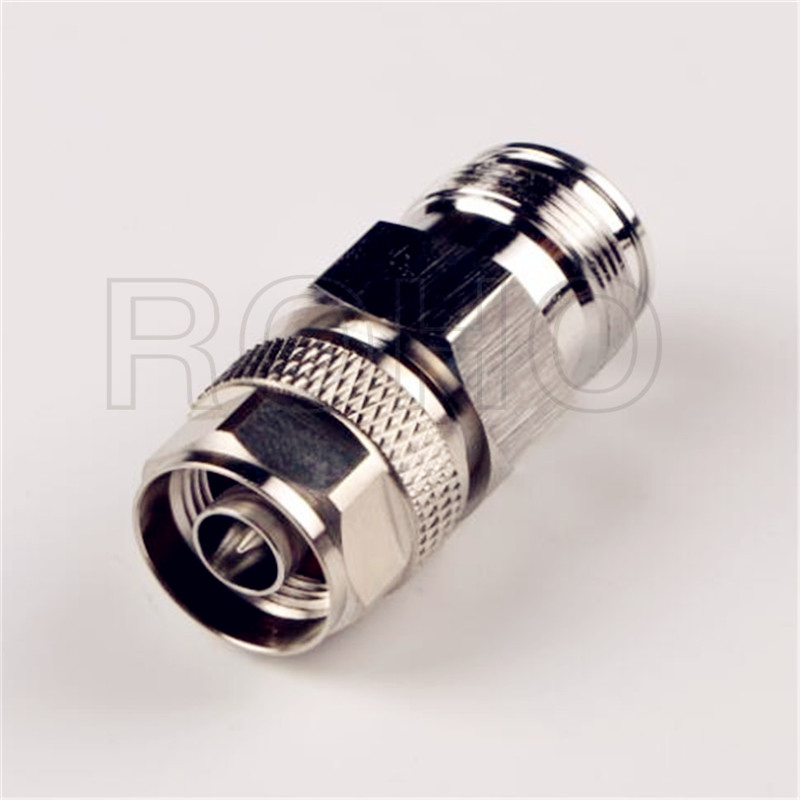

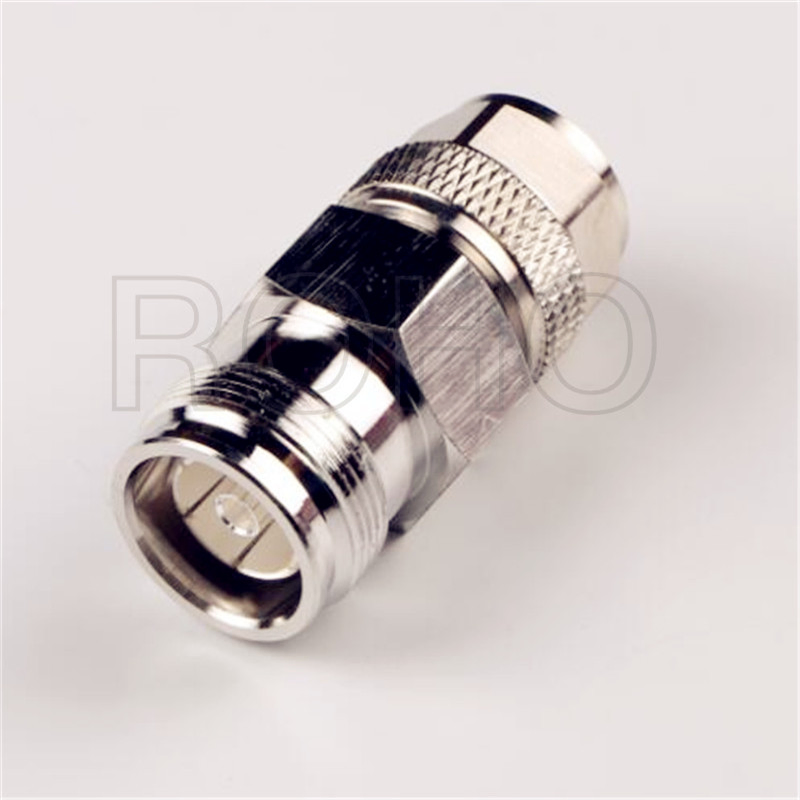

RF Coaxial Mini DIN 4.3/10 Female-N Male Connector Adapter

Product Description

ELECTRICAL DATA
Impedance	50Ω
Frequency Range	DC 3--18GHz
Dielectric withstanding voltage (at sea level)	4000 V rms,50Hz
Working voltage (at sea level)	2500 V rms,50Hz
Insulation resistance	≥ 100000 mΩ
Contact resistance	Inner conductor: ≤0.4mΩ
Contact resistance	Outer conductor: ≤1.5mΩ
RF leakage (at 1 GHz)	≥128dB
MECHANICAL DATA
Coupling nut torque	Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs
Coupling nut torque	Proof torque: 35 Ncm / 310 in.lbs
Coupling nut retention force	≥1000N / 225.0 lbs
Contact captivation	≥200N / 45.0 lbs
Durability (matings)	≥500
ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C
MATERIAL DATA
Bodies	Brass--ternary alloy plating
Pin contacts	Brass--Au/Ag plating
Socket contacts	Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules	Copper--ternary alloy plating
Insulator	PTFE
Gaskets	Silicone rubber
