Metal Spare Part of Trivision Billboard

We operate according to an ISO 9001: 2000-certified management system and have been inspected by SGS. And for added quality assurance, We source key components from France and Japan. Our QC specialists, with more than 15 years of experience each, conduct stringen tests to ensure proper functionality. Plus, each of our products comes with CE marks, one-year warranties, and complimentary replacement parts.
The details are as follows:
1. Primary Material: Aluminum alloy of special quality
2. Driving: Double-gear stepping wheel driving system, easy to change
3. Specification of top and bottom frame: 145mm (width) * 160mm (thickness), left and right frame: 80mm(width)*160mm (thickness)

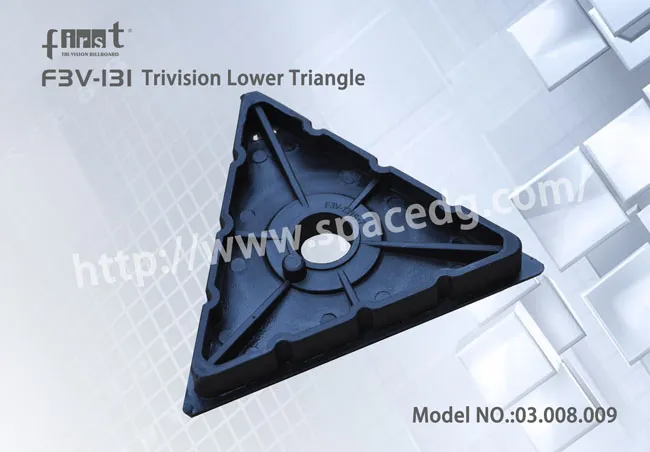

4. Width of triangle prism: 131mm, thickness 1.35-1.8mm
5. Weight: 20-25kg/square meter
6. Image combination: Triangular prism 8m without joint and no length limit
7. Image gap: 6-8mm
8. Image flipping time: Each face 6-12 seconds (preset exworks)

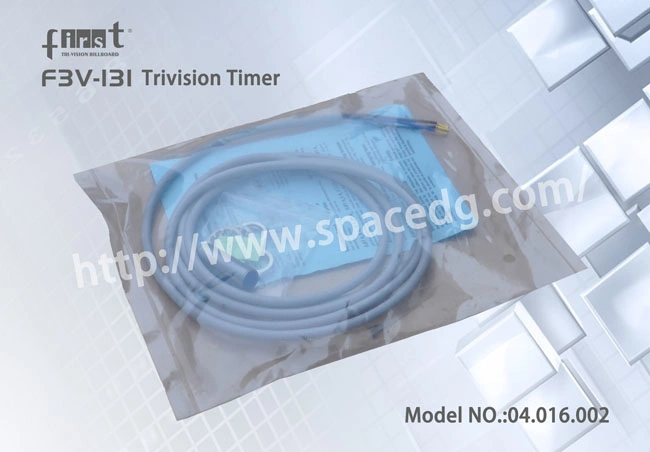

9. Controlling system: France Schneider Controller or Space Controller
10. Image stop time: Freely set from 0-900 seconds
11. Power supply: Voltage 220V, current 0.54A, frequency 50Hz, power 90W
12. Motor: 90W original motor
13. Wind resistance: 10 class
14. Operation service life: Qualified installation will ensure normal service life up to 10 years based on 16 hours each day.
15. Flipping performance (only one type can be set ex works, based on customers' requirement)
A. Simultaneous B. Wave type C. Curtain opening type D. Curtain closing type E. Flipping step by step. F. Flipping from part to part.
16. Available for T pattern poll, upper building ads, outside building ads, intersection, etc.
