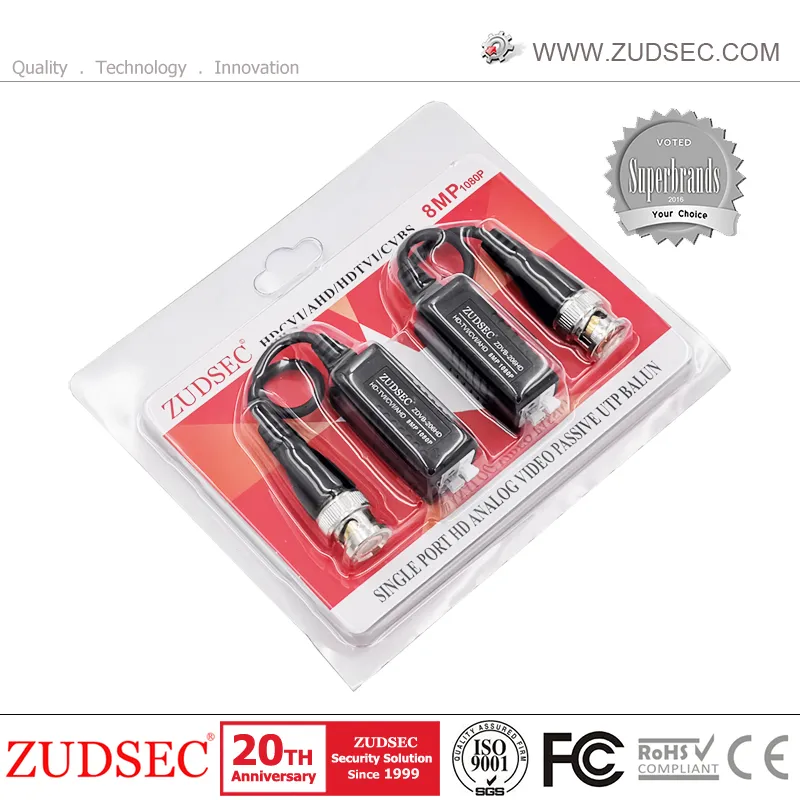

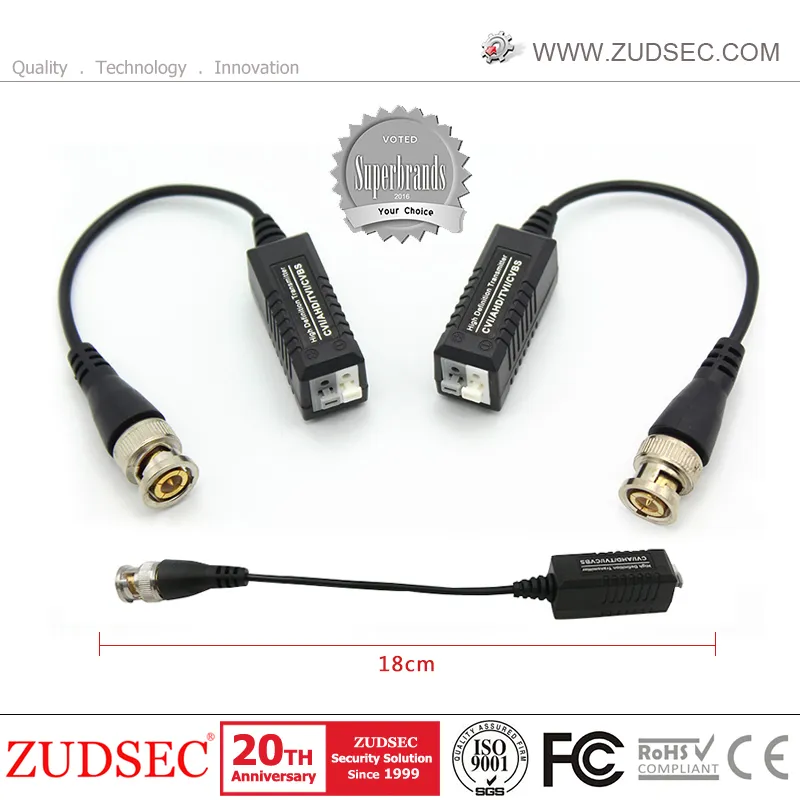

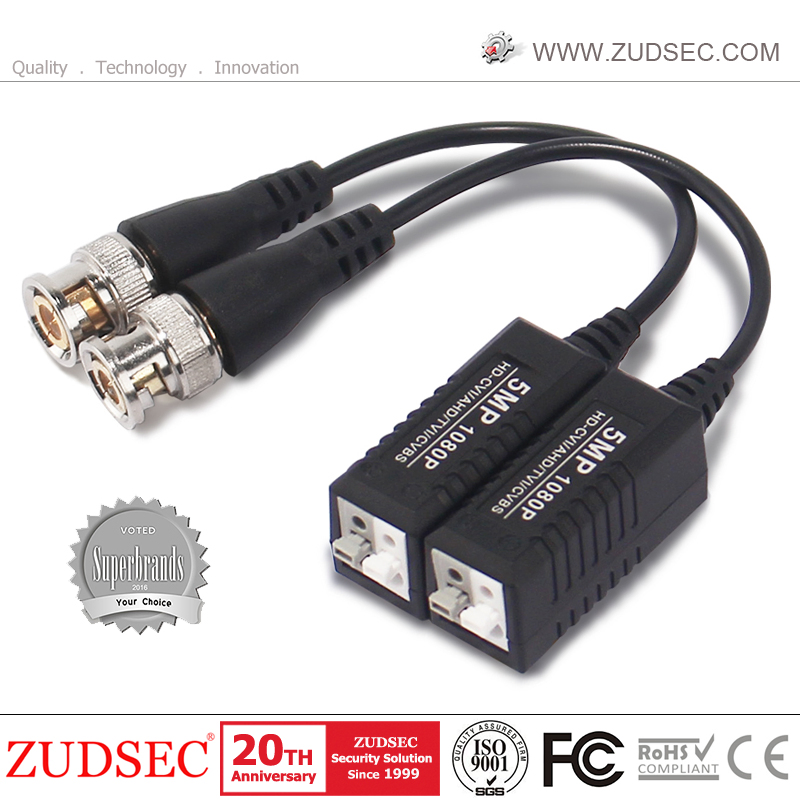

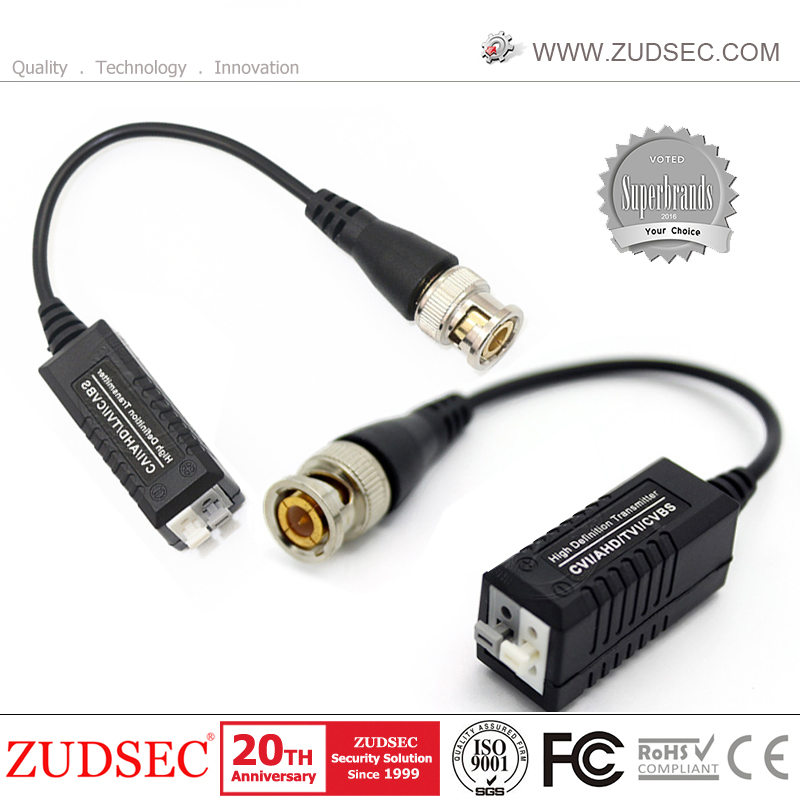

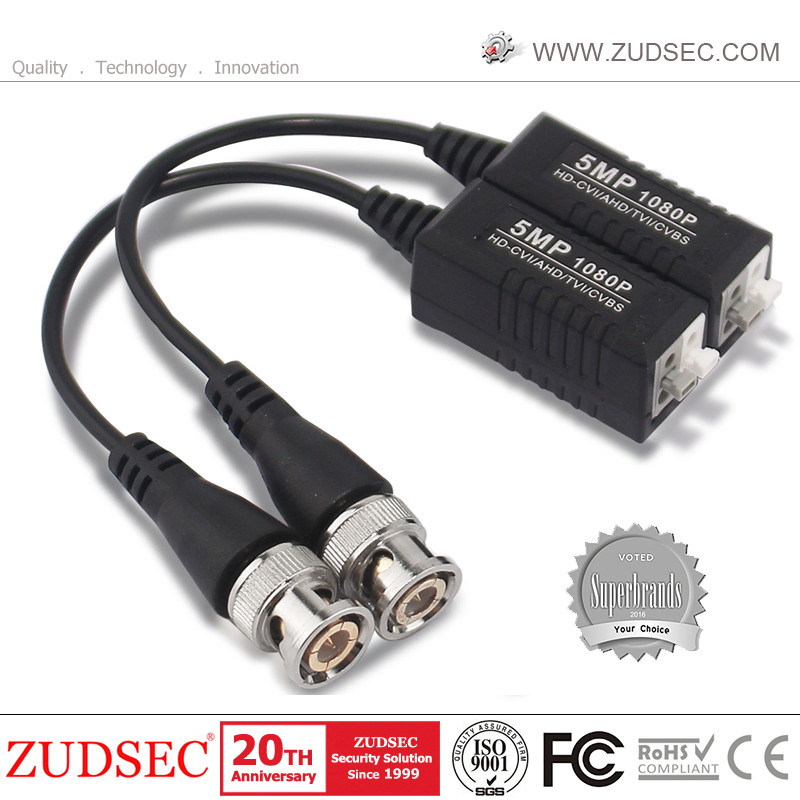

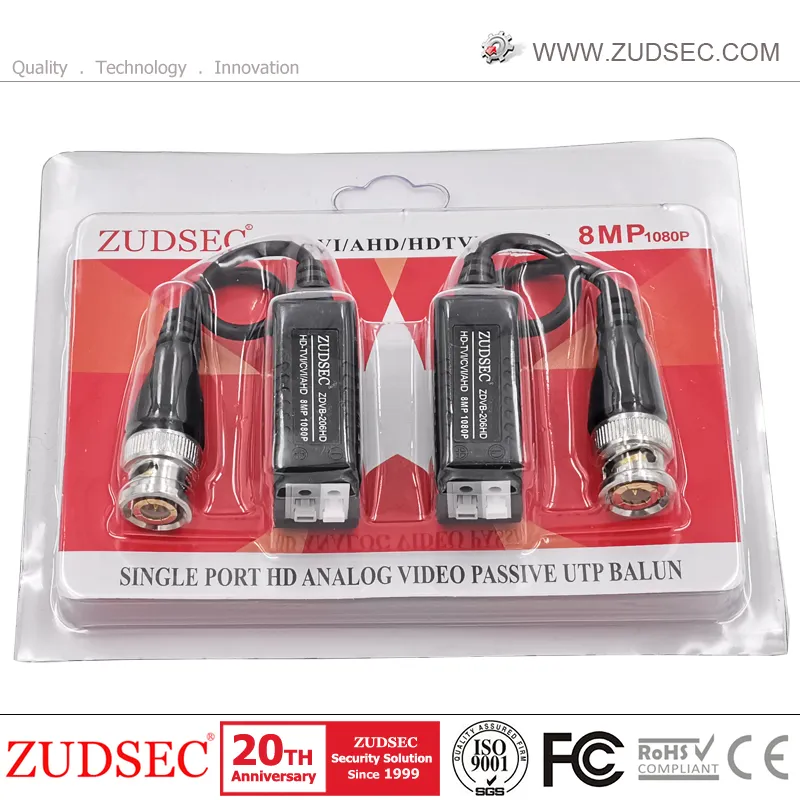

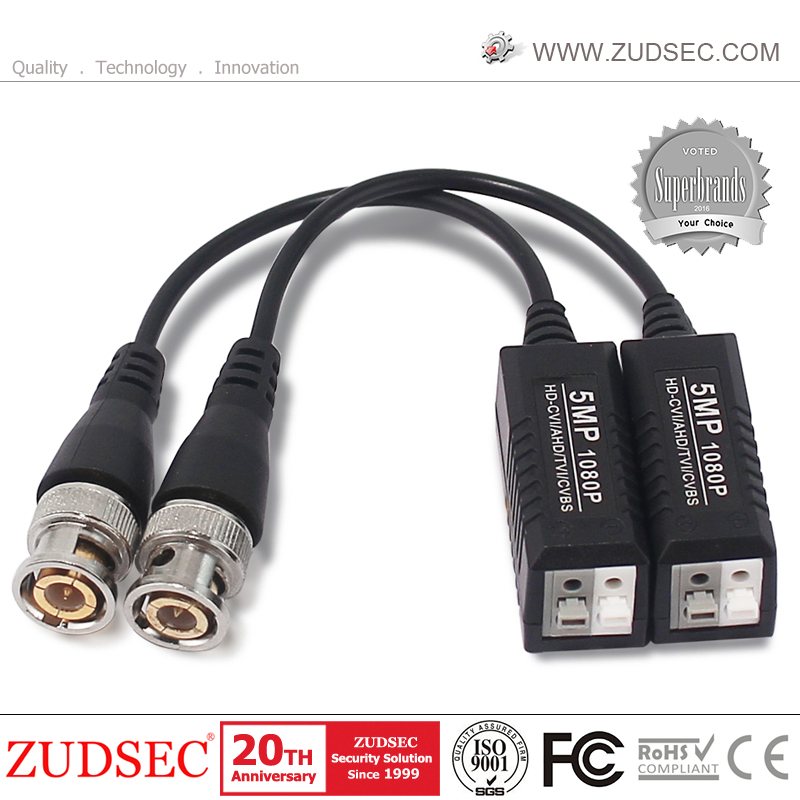

Hot Selling HD-Ahd/ Tvi/ Cvi/ CVBS Surge Protect UTP Video Balun for CCTV Camera
1CH Passive HD Passive Video Balun: Supports AHD/ HDCVI / HDTVI /CVBS video format compatible etc, Resolution support 720P /1080P / 3MP /4MP /5MP.Features:- Effective transfer HD signal and Analog signal - HD-AHD/TVI/CVI/CVBS- AHD/HDCVI: 720P/270M, 1080P/120M- HDTVI/CVBS: 720P/300M, 1080P/200M- i......
Send Inquiry
Product Description
1CH Passive HD Passive Video Balun: Supports AHD/ HDCVI / HDTVI /CVBS video format compatible etc, Resolution support 720P /1080P / 3MP /4MP /5MP.

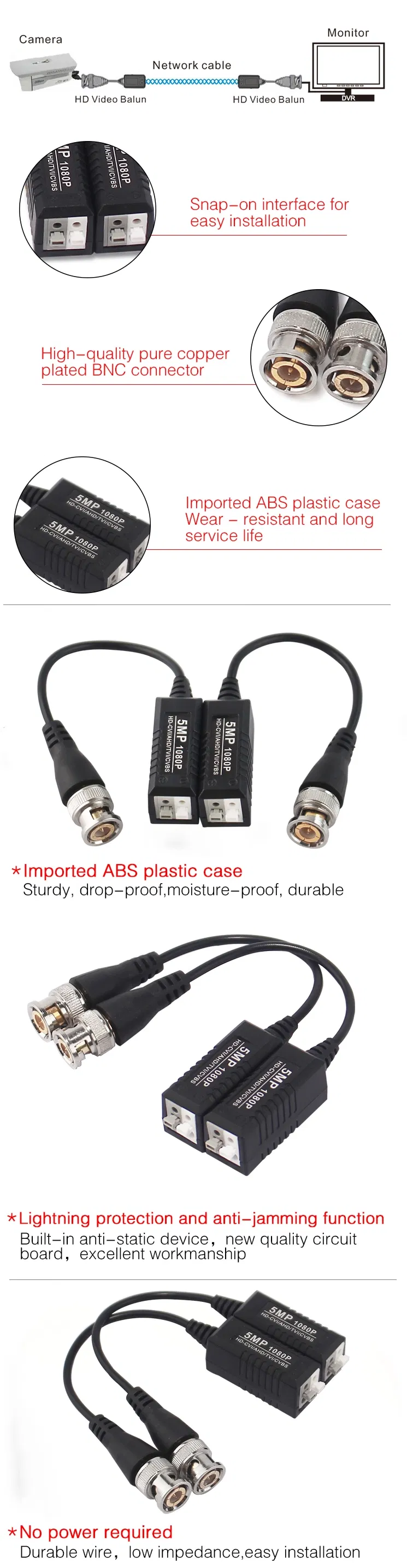

Features:
- Effective transfer HD signal and Analog signal
- HD-AHD/TVI/CVI/CVBS
- AHD/HDCVI: 720P/270M, 1080P/120M
- HDTVI/CVBS: 720P/300M, 1080P/200M
- interference device, Surge protect UTP video balun
Specification:
Related Products:
Features:
- Effective transfer HD signal and Analog signal
- HD-AHD/TVI/CVI/CVBS
- AHD/HDCVI: 720P/270M, 1080P/120M
- HDTVI/CVBS: 720P/300M, 1080P/200M
- interference device, Surge protect UTP video balun

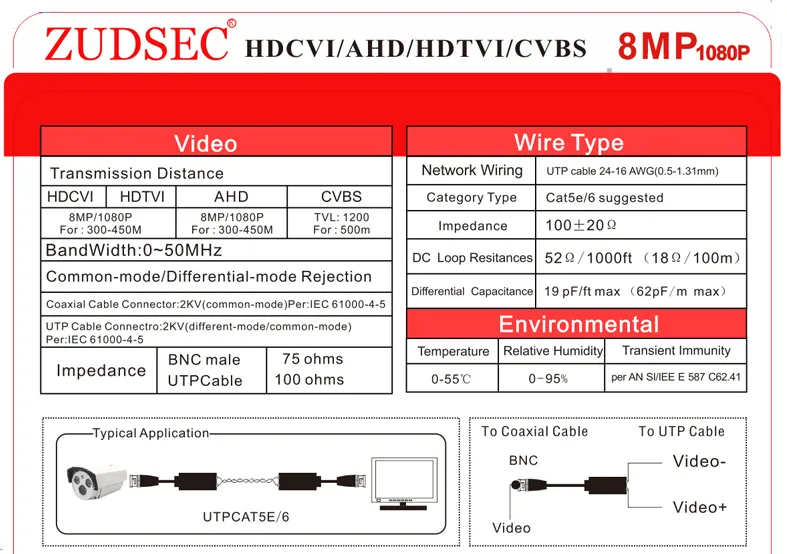

Specification:
| Brand Name | ZUDSEC |
| Model | ZDVB-206HD |
| Transmission distance | HD TVI: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m |
| HD CVI: 720P:600m,1080P:450m,3MP:300m,4MP/5MP:280m | |
| HD AHD: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m | |
| CVBS: 600M | |
| Catagory type | UPT CAT5 / 5E / 6 |
| Material | ABS Plastic |
| Impedance | BNC male: 75, UPT Cable: 100 |
| Formats | AHD/HDTVI/HDCVI/CVBS |
| Working Valtage | DC12V |
| Signal Bandwidth | 6 MHz |
| Category Type | 5 or better |
