F Female Bulkhead Connector Panel Mount

Product Description

F Female Bulkhead Connector Panel Mount

Specifications

F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.

Major Technical Characteristics
Temperature Range	-40 to +60 dregree
Vibration	100m/S² (10 to 500 Hz), 10G
Impendance	75ohm
Frenquency Range	DC-1GHZ
Working Voltage	170V r.m.s at sea level
Workstandinging Voltage	500V r.m.s at sea level
Center Contact Resistance	≤10Mohm
Outer Contact Resistance	≤5Mohm
Insulation Resistance	≥1000Mohm
Center conductor Retention Force	≤0.2N
Insertion Loss	≤0.20dB/3GHz
Voltagge Standing Wave Ratio :
Straight	≤1.22/3GHz
Right Angle	≤1.30/3GHz
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass............Nickel
Insulator	POM..............White
Contact Pin	Brass............Nickel
Suitable cables
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

More F Trpe Connectors
F Female Bulkhead Connector Panel Mount

Related RF Coxial Electrical Connectors
F Female Bulkhead Connector Panel Mount

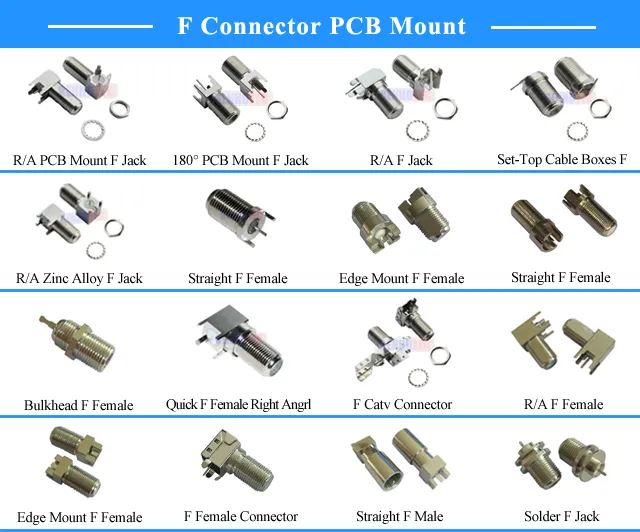

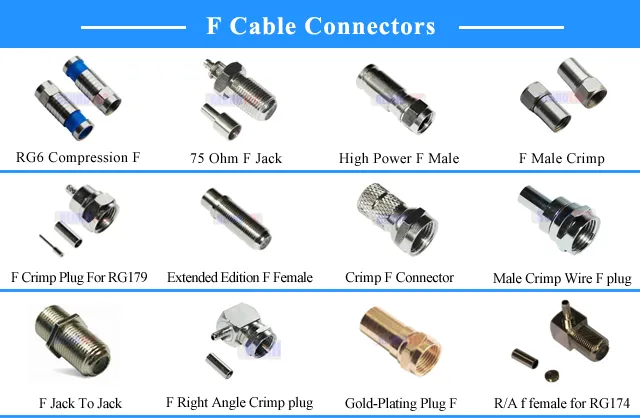

Renhotec offers many types of F type connectors. PCB mount F female connector/ F type male cable connector/Flange chassis mount F type connectors/ Straight right angle F type connector/ Crimp solder compression type F connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
