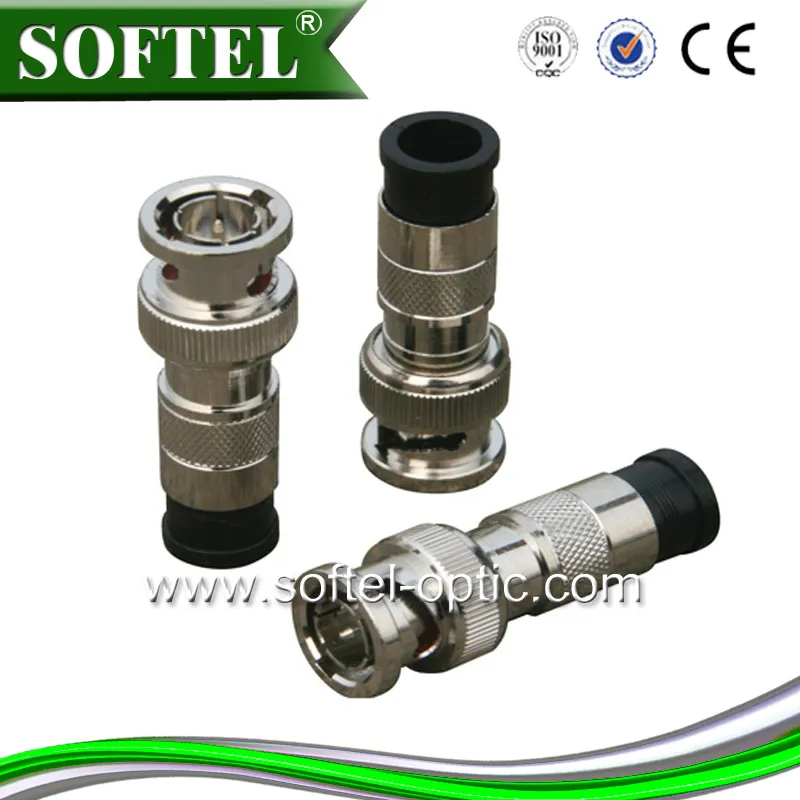

CCTV Camera Weatherproof Bass BNC Compression Connectors

Product Description

Top Design Weatherproof Bass BNC Compression Connectors

Products'details:

CCTV Camera Weatherproof Bass BNC Compression Connectors

Characteristic:

Coaxial cable RG6 rg59 F compression connector

1.Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
2.Designed to be watertight for outdoor applications
3.Offer excellent RFI shielding properties
4.easy-grip free-spinning nut for fast installation and installer comfort
5.Universal for standand .tri-shield or quad-shield RG6 coaxial cable

Parmeters:

*Impedance 75 Ohms

*High Return loss

*Low Insertion Loss

*Operating Voltage 90V (at 60 Hz continuous AC)

*Operating temperature -40°F to +140°F

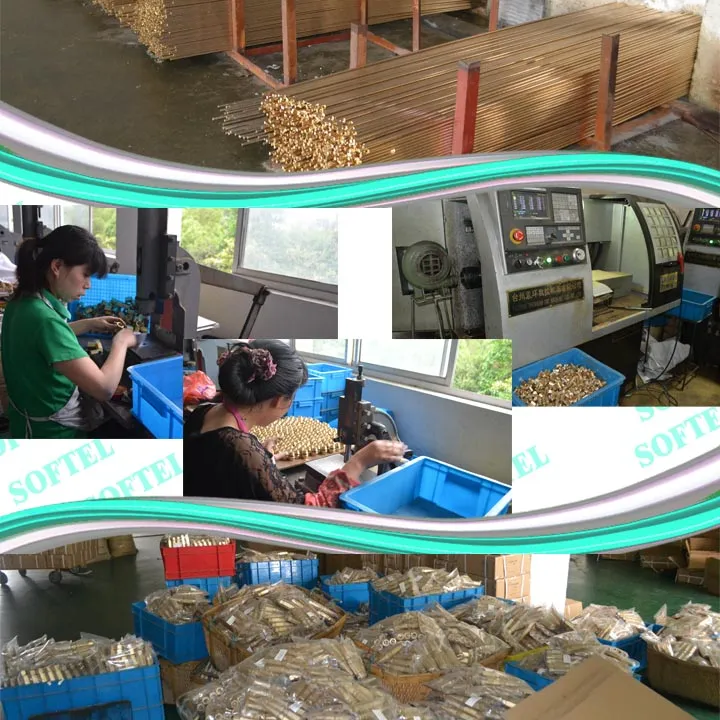

Workshop:

Our Teams:
CCTV Camera Weatherproof Bass BNC Compression Connectors

Connector type	BNC compression	Working Voltage	500V max
Frequency Range	DC~1GHz	Vswr	≤1.3
Impedance	75Ω,50Ω	Temp.range	-25~+85°C
Conductor resistance	Internal ≤ 1.5 mΩ	Material	Shell:Copper, Bright nickel plating

	External ≤ 1 mΩ		inner conductor: Brass,gold plating
Insulating resistance	≥ 5000 MΩ@ DC500V		Insulator: PTPE
Withstanding voltage	1500V rms	Applicable standard	IEC 60169-8
