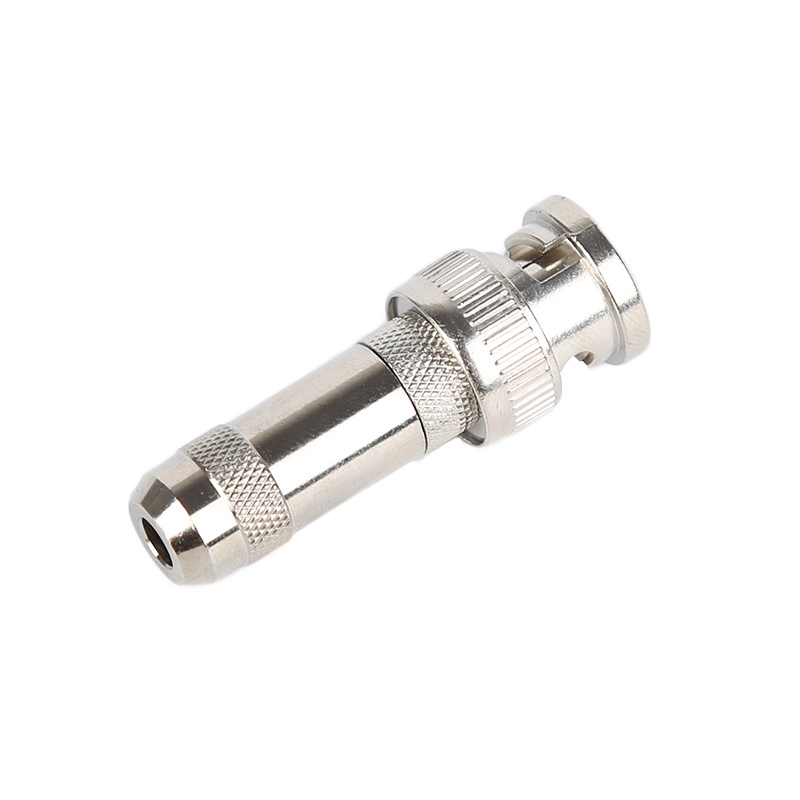

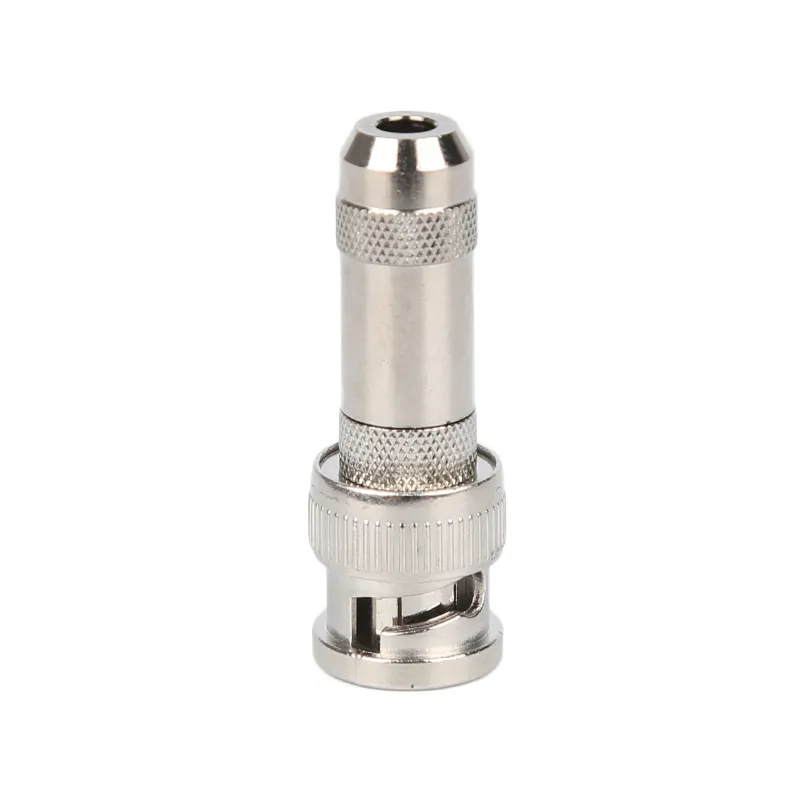

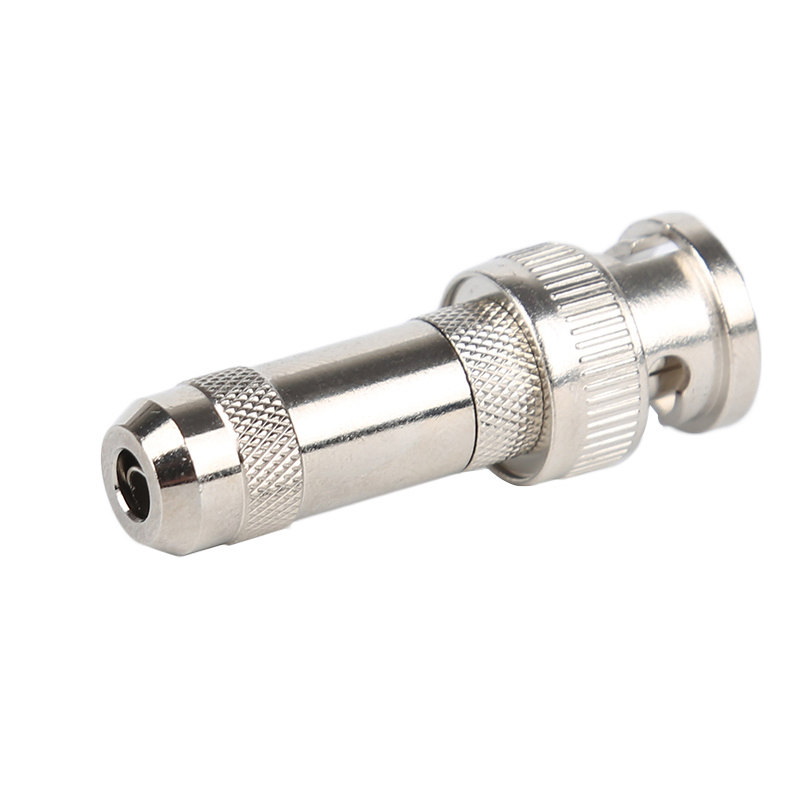

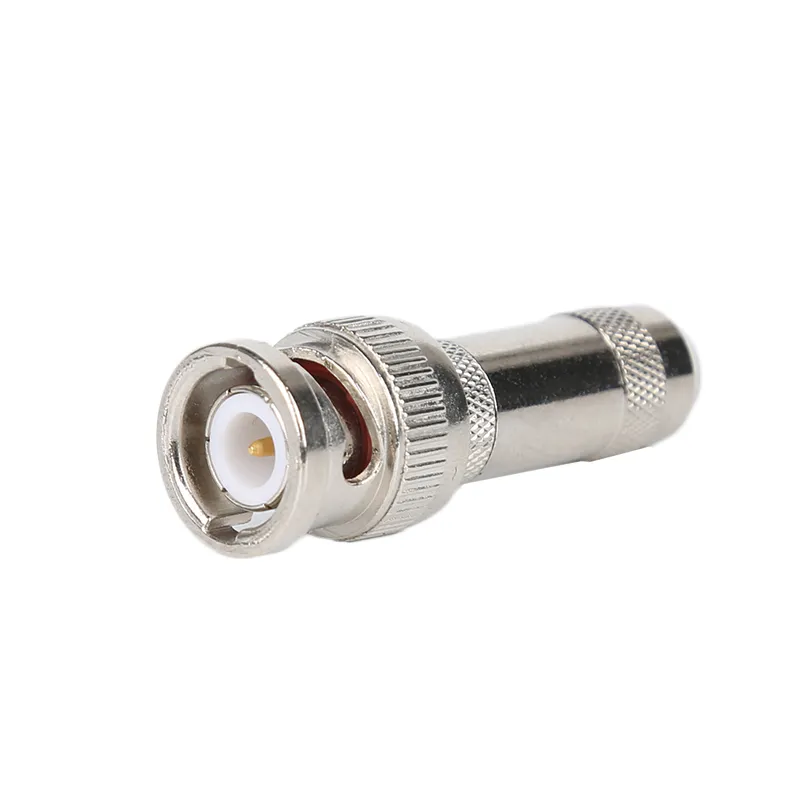

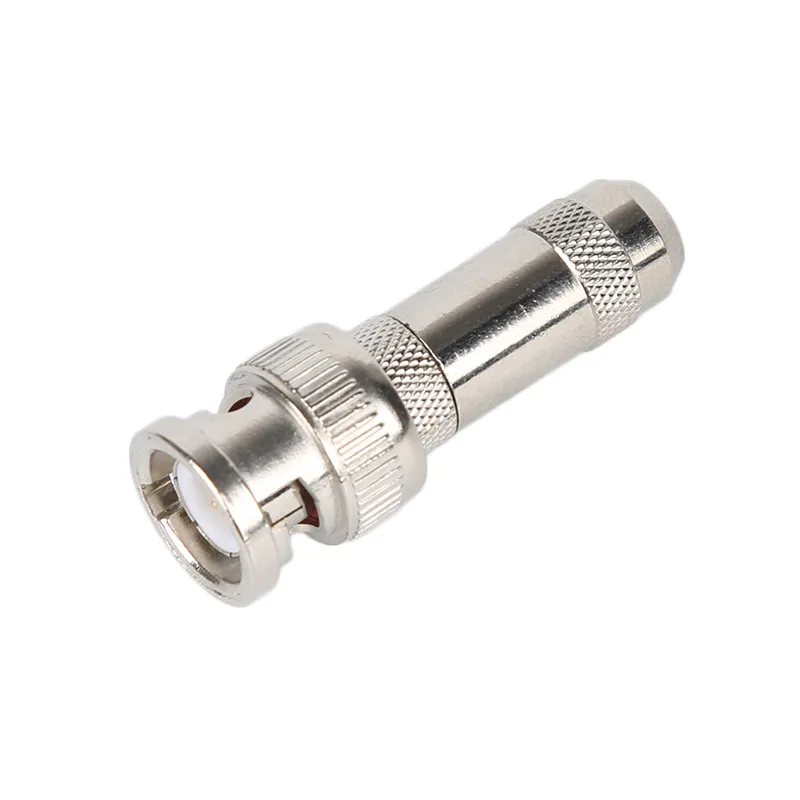

China BNC Male CCTV Video Connector Coaxial Coax Balun for Camera TV Adapter

Product Description

BNC RF coaxial connectors are designed for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangebale with the same-type connectors over the world. BNC connectors are widely used in connection of RF coaxial cables in electronic equipment and instruments.

Environment Condition
Temperature range	PE cable, -40°C to +155°C
Vibration	100m/S²(80Hz to 2000Hz)
Electrical Specifications
Frequency range	DC to 3GHz
Working voltage	At sea level		500V (rms)
	At 5.4 Kpa		125V
Contact resistance	Center conductor		≤ 10mΩ
	Outer conductor		≤ 2.5mΩ
Insulation resistance	≥ 5000MΩ
Withstand voltage	At sea level		1500V (rms)
	At 5.4 Kpa		300V
VSWR	Type straight	~1 GHz	≤ 1.15
		~3 GHz	≤ 1.22
	Type angle	~1 GHz	≤ 1.15
		~3 GHz	≤ 1.30
Screening effectiveness	55dB min at 2~3 GHz
Mechanical Specifications
Center conductor withdrawal force	≥ 0.57 N
Durability	500 cycles
Applicable standard	GB11315-89
	IEC169-8
	MIL-C-39012

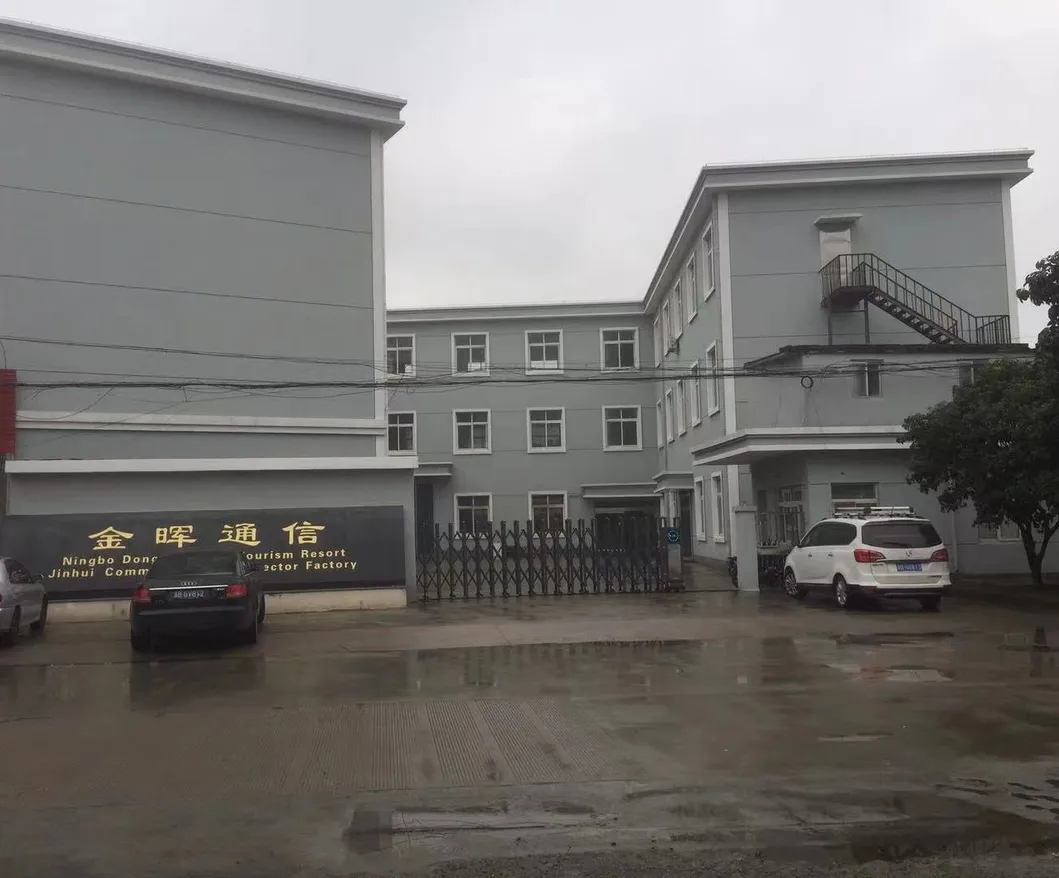

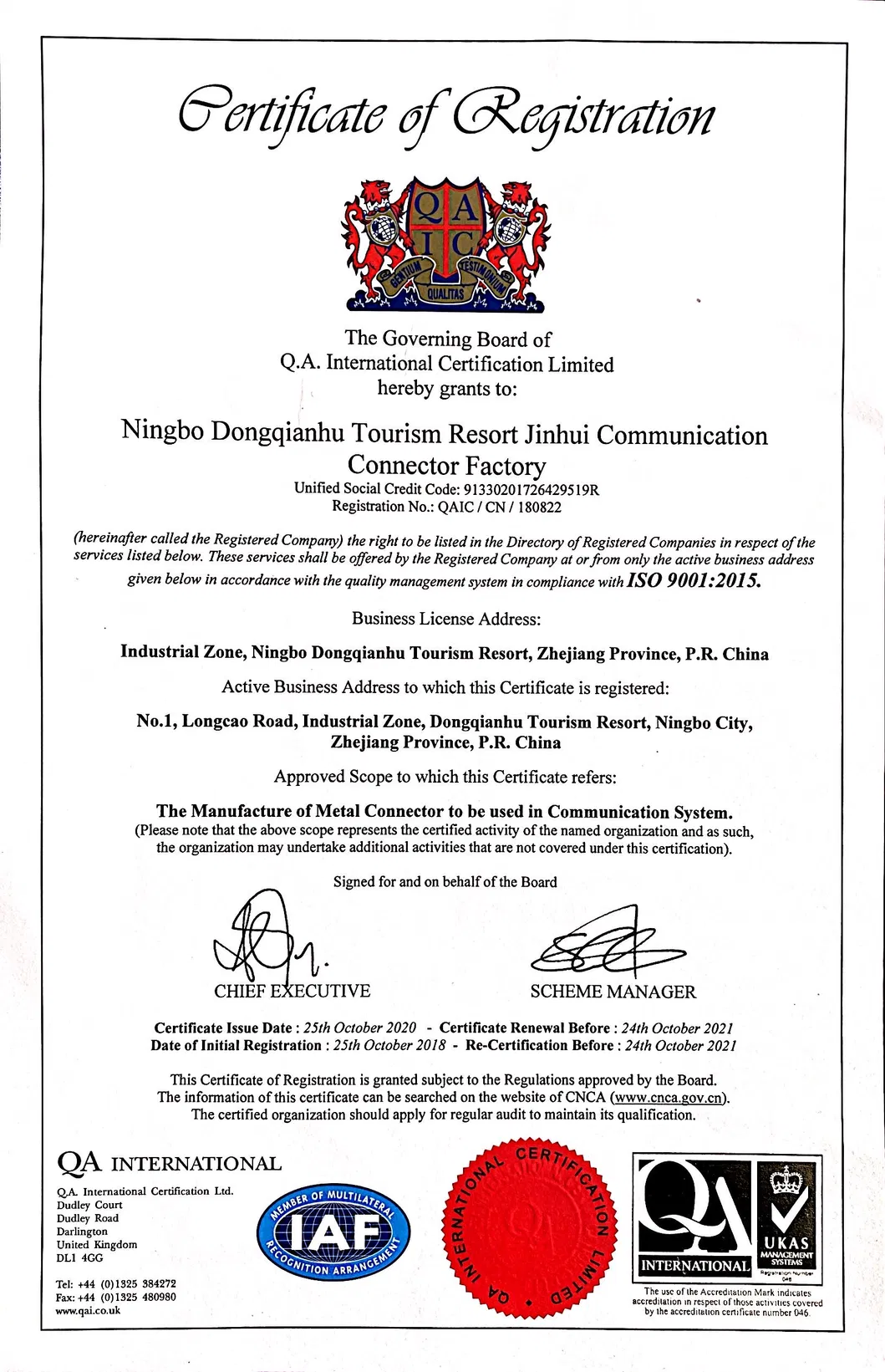

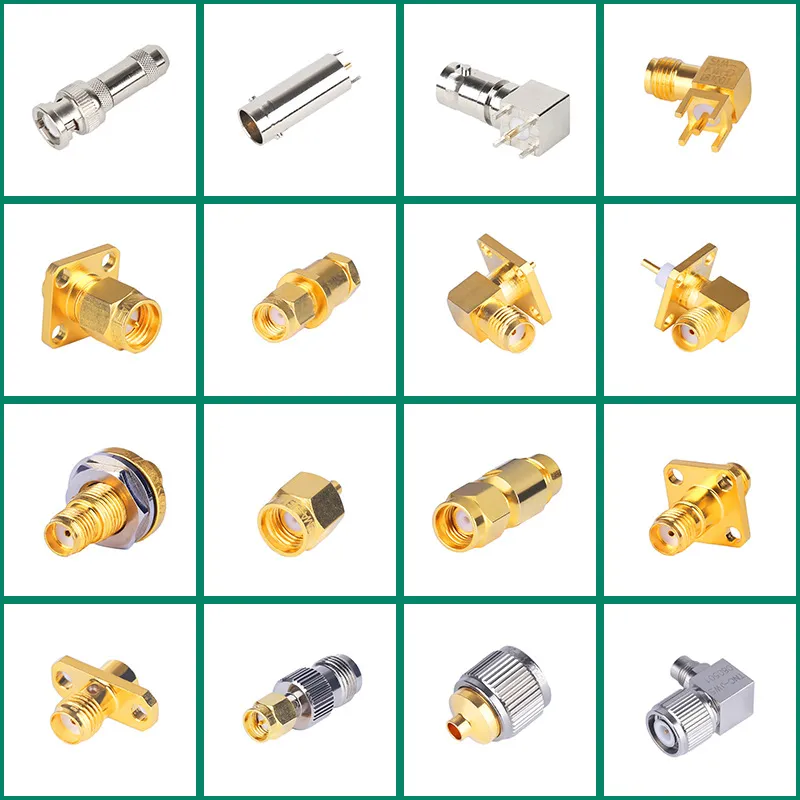

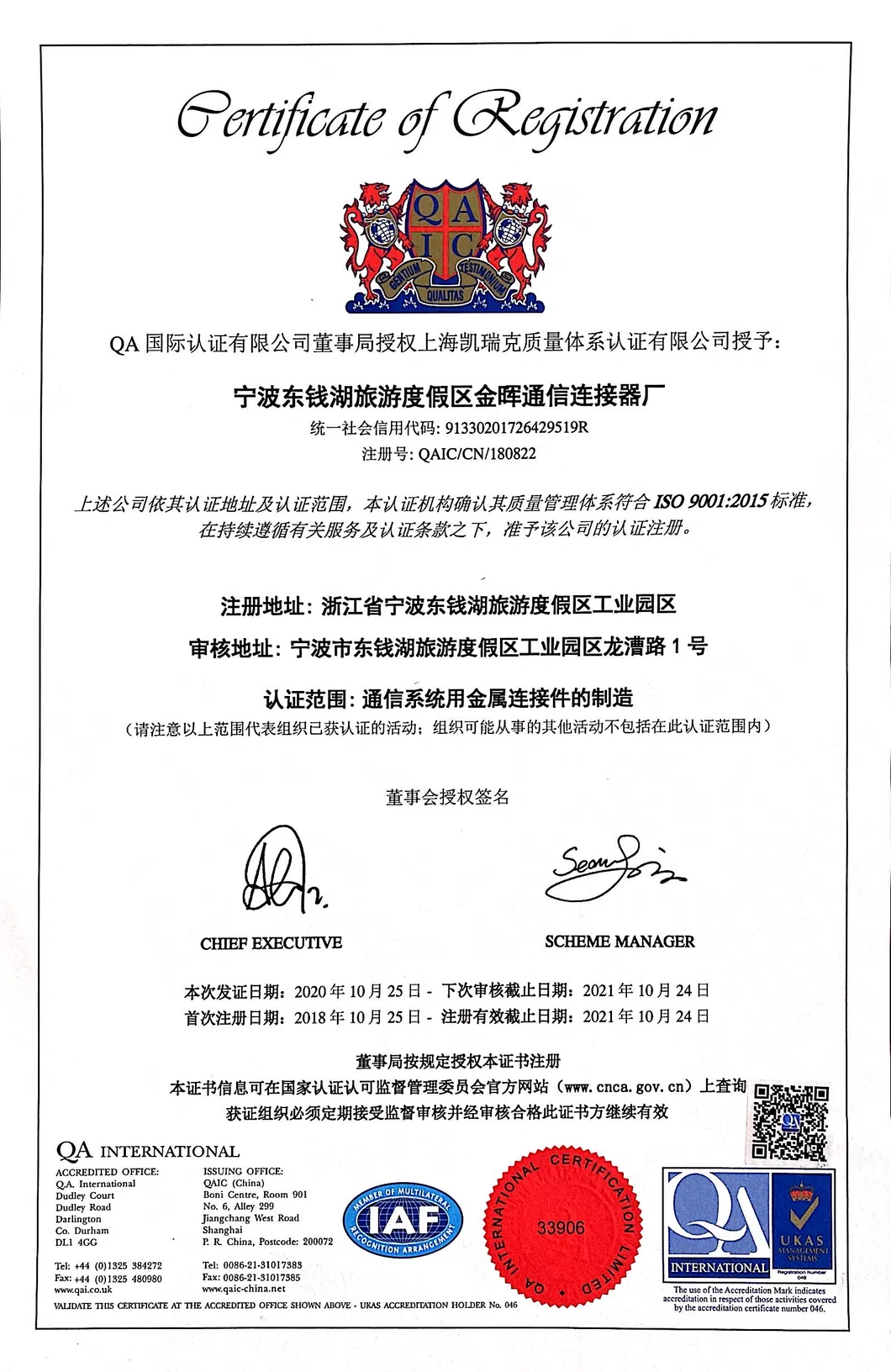

Ningbo Hanson Communication Technology Co,. Ltd. is a manufacturing and trading Company founded in 2021, which was associated with Jinhui Communication Connector Factory. It is located in Dongqian Lake Industial Park, Ningbo in Zhejiang Province. The factory has more than 20 years of experience in the production of connectors. During the period, factories has now developed to has its own hardware workshop and electroplating workshop as well as a variety of reliable suppliers, which aims to provide clients with high-quality products. The segment of main products are various RF coaxial connectors, adapters and cable assemblies of SMA series, N series, BNC series and TNC series, ect. In addition, factory is also able to serve for the clients who has customized products with specific requirements. The products are widely used in aerospace and other high-tech fields. Factory pays more attention to product quality, and annually participated in quality system certification with ISO 9001:2015. We look forward to cooperating with all clients.
